High-speed, 1-needle, Lockstitch, Fagoting Machine
The sewing machine produces soft seams with consistency with a low tension applied to the thread even when it runs at a high speed.
Product features

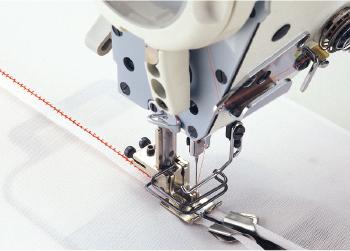

Fagoting holder
The pressure provided by the left- and right-hand sections of the fagoting holder can be separately adjusted in order to prevent an uneven material feed.
Specification
| Model name |
Without automatic thread trimmer | LZ-2285N | ||
|---|---|---|---|---|
| Stitch system | Fagoting | |||
| Stitch pattern |  |
|||
| Max. sewing speed | 4,000sti/min* | |||
| Max. zigzag width | 8.0mm | |||
| Max. feeding amount | 2.2mm | |||
| Min. cutting allowance of lower knife | - | |||
| Lower knife driving method | - | |||
| Lift of the presser foot | By hand: 5.5mm By knee: 8.0mm |
|||
| Hook | DP hook (with titanium-treated inner hook) | |||
| Thread take-up | Rotary type | |||
| Lubrication | Fully automatic | |||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |||
| Needle (at the time of delivery) | 438 (Nm80) | |||
| Needle position changing mechanism | - | |||
| Reverse feed stitching mechanism | - | |||
| Needle throw pattern cam | Grooved cam | |||
| Standard Guage (at the time of delivery) |
Needle plate | 100-61554 | ||
| Feed dog | 00-64004 | |||
| Presser foot (asm.) | 225-91564 | |||
*sti/min is the abbreviation for “stitches per minute”

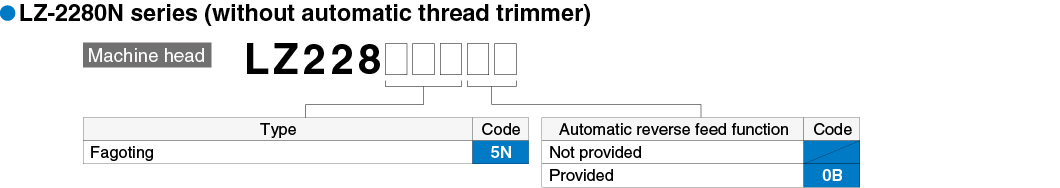

When you place orders
Gauge
LZ-2285N
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
 |
| - | P/N | P/N | P/N |
| - | 10061554 | 10064004 | 22591564 |
| Remarks | - | - | This is small finger guard (without wiper). The part number of the large finger guard (with wiper) is different. |
