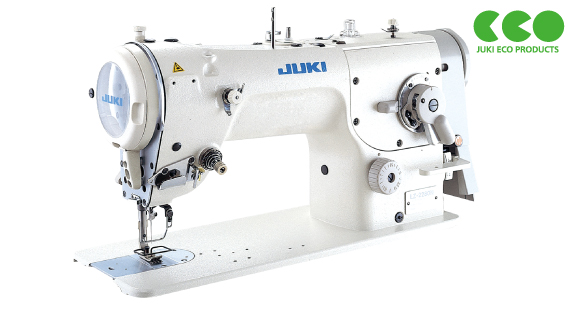

High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine
The sewing machine produces soft seams with consistency with a low tension applied to the thread even when it runs at a high speed.
Product features
Uneven feed of the upper and lower cloths is totally eliminated
Simplified mechanism for easy operation
Drop-feed sewing machines are widely said to feed in the lower cloth more quickly than the upper cloth. However, this machine prevents uneven feed of the upper and lower cloths in spite of its a drop-feed mechanism. In appearance, the gauge parts are identical to those of a conventional zigzag stitching machine, and operability is in no way affected by the newly developed feed mechanism.
Specification
| Model name |
Without automatic thread trimmer | LZ-2280NU | LZ-2284NU |
|---|---|---|---|
| With automatic thread trimmer | — | LZ-2284NU-7 | |
| Stitch system | Standard zigzag | Standard/ 3-step zigzag |
|
| Stitch pattern |  |
 |
|
| Max. sewing speed | 4,500sti/min* | ||
| Max. zigzag width | 10.0mm | 10.0mm (standard) 10.0mm (3-step) |
|
| Max. feeding amount | 2.5mm (standard) 2.0mm (3-step) |
||
| Min. cutting allowance of lower knife | - | ||
| Lower knife driving method | - | ||
| Lift of the presser foot | By hand: 5.5mm By knee: 10.0mm |
||
| Hook | DP hook (with titanium-treated inner hook) | ||
| Thread take-up | Rotary type | ||
| Lubrication | Fully automatic | ||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | ||
| Needle (at the time of delivery) | 438 (Nm70), DP×5 (#10) |
||
| Needle position changing mechanism | Provided as standard | ||
| Reverse feed stitching mechanism | Provided as standard | ||
| Needle throw pattern cam | Triangular cam | Grooved cam | |
| Standard Guage (at the time of delivery) |
Needle plate | 225-48010 | 225-82407 |
| Feed dog | 225-48119 | 225-81508 | |
| Presser foot (asm.) | 225-48671 | 235-03162 | |
*sti/min is the abbreviation for “stitches per minute”

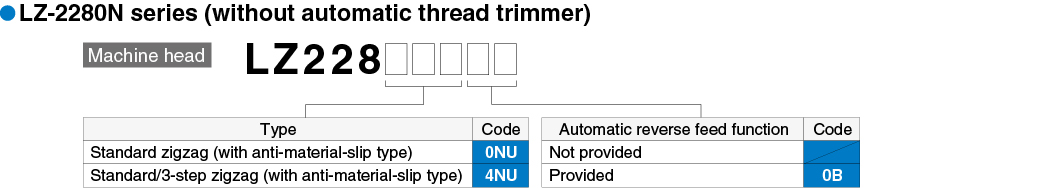

When you place orders
Gauge
LZ-2280NU
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
 |
| - | P/N | P/N | P/N |
| - | 22548010 | 22548119 | 22548671 |
| Remarks | - | - | This is small finger guard (without wiper). The part number of the large finger guard (with wiper) is different. |
LZ-2284NU(-7)
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
 |
| - | P/N | P/N | P/N |
| - | 22582407 | 22581508 | 23503162 |
| Remarks | - | - | This is small finger guard (without wiper). The part number of the large finger guard (with wiper) is different. |
