Pattern Seamer

The dry head machine achieves max. speed 3,000sti/min with supporting various sewing and materials.
Your Ingenuity creates opportunities for Automation.

Product overview

Product features

  • Feeding type and sewing area

    Space-saving PS-800-8045

    The PS-800-8045 can be installed in a space-saving manner.Not only the parts department but also sewing lines can be used.(The table size of PS-800-8045 width is 1,200mm wideth, the same as 1-needle lockstitch machine.)

  • Patterns are identified by means of RFID/Barcode reader to enable automatic reading of sewing data

    Sewing patterns are automatically identified by means of RFID/ Barcode reader to automatically call up the relevant sewing program, thereby starting sewing quickly.
    *RFID (radio frequency identification): It is the technology to read and write data saved on IC chips through wireless non-contact transfer of radio frequency waves and is used to identify and manage products.

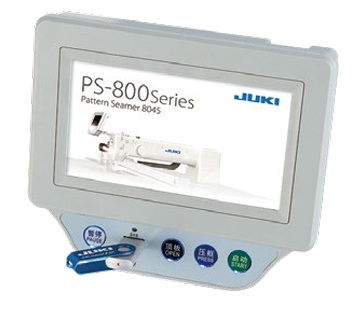

  • Operation panel

    The sewing pattern data format are supports DXF, AI, PLT, and DST. Sewing pattern data in these formats are widely used in many sewing plants. As a result, the operation panel is able to use the customers’ existing sewing pattern data immediately. As many as 999 sewing patterns can be saved on the large-capacity memory of the operation panel. (Editing software is included with the accessory.)

  • Oil stains are prevented

    The machine head has adopted the advanced dry technology ( no lubrication is required ). Only the hook needs lubrication. The dry head is very effective when sewing materials on which oil stains are likely to spread such as those for down jackets.

  • Cloth trimmer specifications

    The cloth trimmer comes in two different knives and a laser.

    • Rotary knife
      This knife is suited to the sewing products designed to have straight portions and curve portions.
    • Laser cutter
      This lazer is suited to soft materials such as knit.



Basic performance

  • Height of the intermediate presser at its lower dead point can be adjusted on the operation panel

    It is possible to change the intermediate presser height at its lower dead point steplessly during sewing. This feature is particularly effective when sewing multi-layered portions of material. Since the material is stably held by the intermediate presser, sewing troubles such as stitch skipping and thread breakage are prevented.

Specification

Model name PS-800SB13085 PS-800HB13085 PS-800SB8045 PS-800HB8045 PS-800SS12080 PS-800HS12080
Sewing area 1,300 mm × 850 mm 800 mm × 450 mm 1,200 mm × 800 mm
Feeding type Double stepping motor Belt Drive Screw drive (ball screw)
Max. sewing speed 3,000 sti/min*
Stitch length 0.5 - 12.7 mm
Hook Full-rotary double-capacity hook
Lift / Stroke of
intermediate presser
Lifting amount: 20 mm / Stroke: Standard 4 mm
Variable lower position
of the intermediate presser
0 - 9 mm
Needle DB × 1 #8
(7#~14#)
DP × 17 #21
(18#~23#)
DB × 1 #8
(7#~14#)
DP × 17 #21
(18#~23#)
DB × 1 #8
(7#~14#)
DP × 17 #21
(18#~23#)
Storage of pattern data
in the memory
Max. 999 patterns (80,000 sti/pattern)
Number of
Indentifiable patterns
999 patterns
Program input mode USB
File format Convert DXF / AI / PLT / DST format to SLW format with editing softwear
Weight 500Kg 450Kg 750Kg
Dimensions 2,190mm (W) × 2,100mm (L )× 1,250mm (H) 1,200mm (W)× 1,325mm (L)× 1,250mm (H) 2,180mm (W) × 2,185mm (L) × 1,250mm (H)

*sti/min is the abbreviation for “stitches per minute”

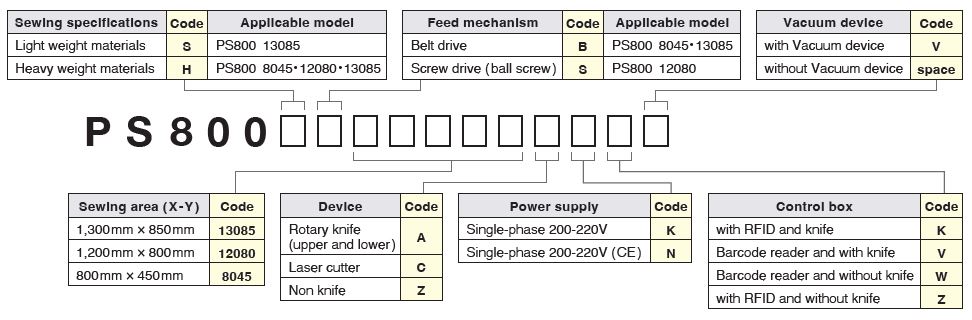

When you place orders
