• C11 For collarette attaching

  This model is best suited for attaching collarettes on underwear, briefs and knitwear. Ease of use is further improved by using the electromagnetic type tape cutter (TC16).





• JUKI's dry-head technology protects sewing products from being stained with oil

  With the excellent functions inherited from the MF-7500 Series, the MF-7500D is provided with a dry frame mechanism to eliminate the cause of oil stains. Stain removing work or re-sewing work is substantially reduced by protecting sewing products from being stained with oil, thereby improving the quality of finished products.



• Thanks to the new feed mechanism, many different types of sewing are achieved

  The feed locus can be adjusted externally. The feed locus is now adjustable in terms of the vertical direction and horizontal direction, thereby improving responsiveness to sewing materials.



• Feed longitudinal position adjustment mechanism

  The longitudinal position of the feed is adjustable. As a result, uneven material feed and puckering that are likely to occur when sewing products made of elastic materials such as foundations are reduced. This means that the machine promises improved responsiveness to elastic materials.



• Differential-feed micro-adjustment mechanism

  It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed.



• Micro-lifter mechanism

  Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage and damage of the material.



• The looper thread twining prevention mechanism has been improved and is provided as standard for the sewing machine

  In the case of looper thread breakage, the looper thread twining prevention mechanism is activated to trim the looper thread before the thread twines on the looper thread cam. In this way, the looper thread twining prevention mechanism prevents the looper thread from twining on the looper thread cam. In addition, the looper thread cam, which has been incorporated in the sewing machine, has been changed so that it is mounted outside of the sewing machine. The externally-mounted looper thread cam promises improved maintainability.



• Commercially-available gauge components are applicable with no additional work

  As a result of the commonality of components, commercially-available components (presser foot, throat plate and needle clamp) are now applicable and easily obtainable.

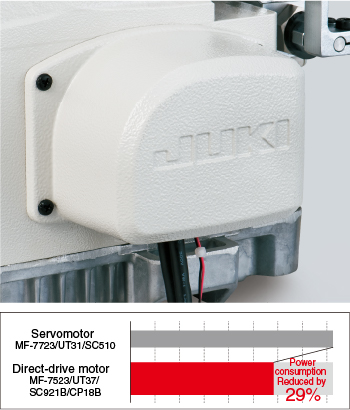

• All of the sewing machines with a thread trimmer are provided with a direct-drive motor

  The direct-drive motor system has been adopted by all of the sewing machines with a thread trimmer. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved responsiveness. In addition, the machine is no longer provided with a V-belt. This means that the adoption of the direct-drive motor is also effective in the elimination of belt shavings. Power is directly transmitted from the motor to the sewing machine, thereby contributing to reduced power consumption. (This sewing machine reduces power consumption by 29% as compared with the conventional models.)

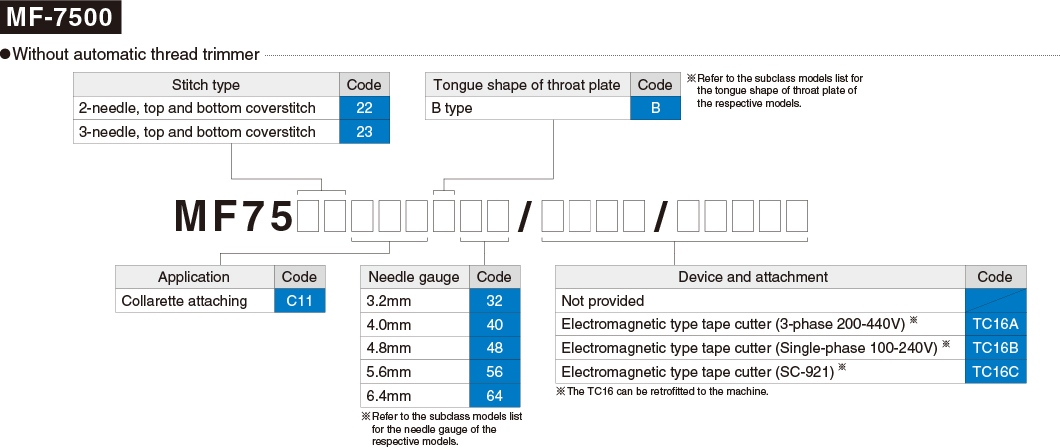

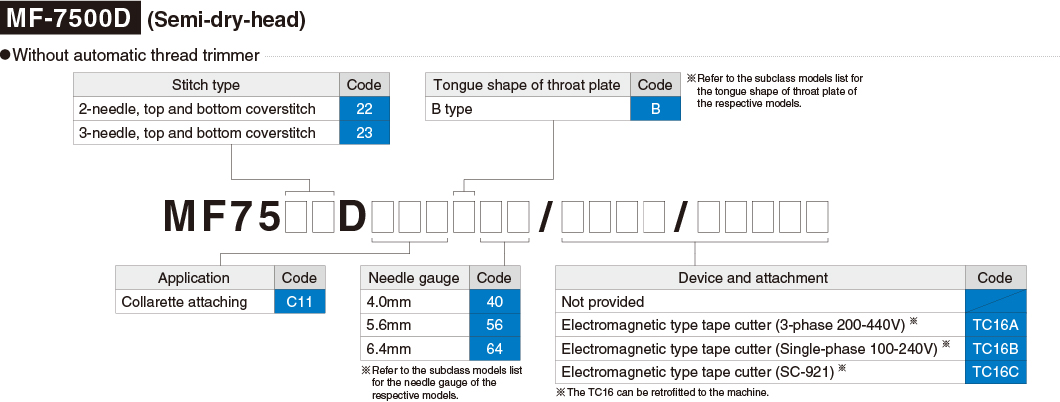

When you place orders

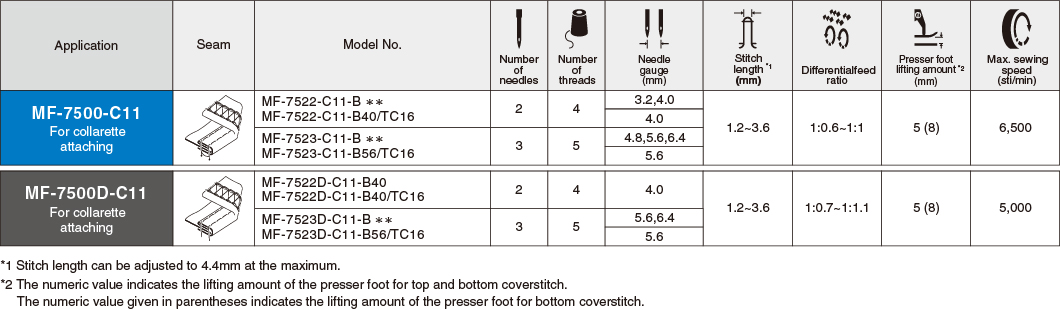

Subclass machine list

MF-7522-C11

Guage		NEEDLE CLAMP		NEEDLE		THROAT PLATE		PRESSER FOOT ASM.		MAIN FEED DOG		DIFFERENTIAL FEED DOG		TAPE GUIDE
Figure
Needle width		P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
inch	mm
1/8	3.2	13350004	FOR B32	MUY128S1000	FOR B32, B40	40058549	FOR B32	40058579	FOR B32	40058555	FOR B32	40058556	FOR B32	-	-
5/32	4.0	13350103	FOR B40	MUY128S1000	FOR B32, B40	13351408	FOR B40	40056504	FOR B40	13353800	FOR B40, B48	13357702	FOR B40, B48	-	-
-	-	-	-	-	-	-	-	-	-	-	-	-	-	40056407	OP

MF-7523-C11

Guage		NEEDLE CLAMP		NEEDLE		THROAT PLATE		PRESSER FOOT ASM.		MAIN FEED DOG		DIFFERENTIAL FEED DOG		TAPE GUIDE
Figure
Needle width		P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
inch	mm
3/16	4.8	13350202	FOR B48	MUY128S1000	FOR B48, B56, B64	40057971	FOR B48	40057973	FOR B48	13353800	FOR B40, B48	13357702	FOR B40, B48	-	-
7/32	5.6	13350301	FOR B56	MUY128S1000	FOR B48, B56, B64	13351606	FOR B56	40056410	FOR B56	13353909	FOR B56, B64	13357801	FOR B56, B64	-	-
1/4	6.4	13350400	FOR B64	MUY128S1000	FOR B48, B56, B64	13351705	FOR B64	40056411	FOR B64	13353909	FOR B56, B64	13357801	FOR B56, B64	-	-
-	-	-	-	-	-	-	-	-	-	-	-	-	-	40056407	OP

MF-7522D-C11

Guage		NEEDLE CLAMP		NEEDLE		THROAT PLATE		PRESSER FOOT ASM.		MAIN FEED DOG		DIFFERENTIAL FEED DOG		TAPE GUIDE
Figure
Needle width		P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
inch	mm
5/32	4.0	13350103	FOR B40	MUY128S1000	FOR B32, B40	13351408	FOR B40	40056504	FOR B40	13353800	FOR B40, B48	13357702	FOR B40, B48	-	-
-	-	-	-	-	-	-	-	-	-	-	-	-	-	40056407	OP

MF-7523D-C11

Guage		NEEDLE CLAMP		NEEDLE		THROAT PLATE		PRESSER FOOT ASM.		MAIN FEED DOG		DIFFERENTIAL FEED DOG		TAPE GUIDE
Figure
Needle width		P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
inch	mm
7/32	5.6	13350301	FOR B56	MUY128S1000	FOR B48, B56, B64	13351606	FOR B56	40056410	FOR B56	13353909	FOR B56, B64	13357801	FOR B56, B64	-	-
1/4	6.4	13350400	FOR B64	MUY128S1000	FOR B48, B56, B64	13351705	FOR B64	40056411	FOR B64	13353909	FOR B56, B64	13357801	FOR B56, B64	-	-
-	-	-	-	-	-	-	-	-	-	-	-	-	-	40056407	OP
