• JUKI Built to Block Oil Leaks

  What is 〈 JUKI Shield Lubrication Design 〉?
  JUKI’s proprietary oil shield design is specialized for preventing oil leakage. It maximizes the efficiency of oil circulation and recovery, enhances the precision of components, and optimizes every detail — including part shapes, quantities, and even screw placement —to prevent oil splatter and external leakage.

• EFLeCS with various functions

  Electric Feed Length Control System (EFLeCS) with a digital pitch

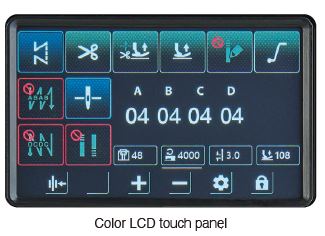

  With the stepping motor used to control the feed mechanism, the feed pitch is adjusted with the color LCD touch panel
  control. The high-clarity display of the touch panel promises excellent visibility to enhance workability. Reverse feed length
  setting and condensed stitch are possible. The machine is also able to sew design stitch.

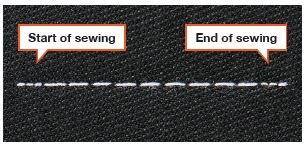

  Condensed stitch
  The condensed stitch can be set from the panel to fine-tune the stitch length at the end of a seam to prevent the seam from unraveling.

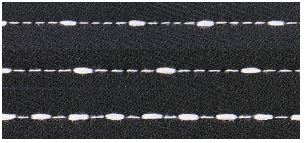

  Design stitch
  Digitalized feed mechanism enables sewing of many different sewing patterns with ease.

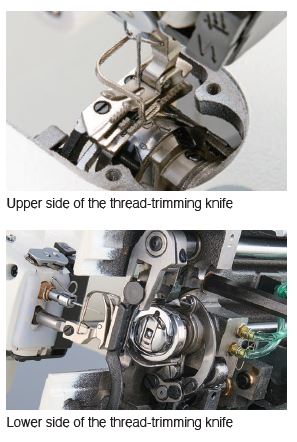

• The shorter-thread trimming mechanism

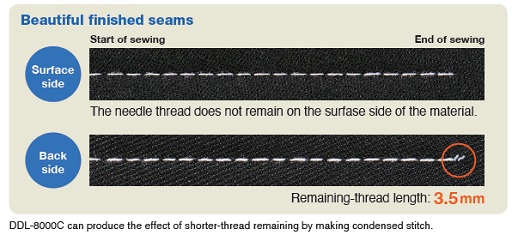

  The length of thread remaining on the material at the end of sewing is 3.5 mm
  The machine adopts a double-blade drive rotary thread-trimming mechanism. By trimming thread just under the needle and by using digital pitch condensed stitching, this thread-trimming system consistently leaves no more than 3.5 mm of remnant thread on the material at sewing completion.

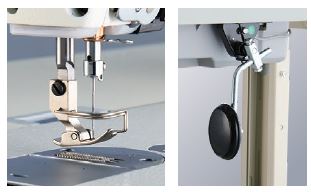

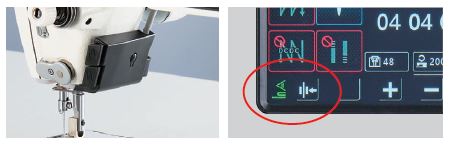

• Feed-amount fine-adjustment function

  Stitch length can be controlled sensibly with reverse feed lever equipped as standard. The machine newly has a choice of stitch length adjustment function by knee lifter. This function makes possible to adjust stitch length without using hands, so it helps difficult processes which require handling by both hands.



• One-touch change over function

  The stitch length and maximum sewing speed can be changed over with one-touch action of the hand switch.



• Control box & USB port

  The control box is integrated with the machine head to facilitate machine setup, and now comes with a USB port for charging. Since the USB port is provided as standard for the control box.

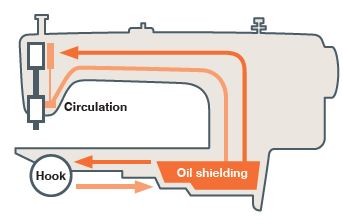

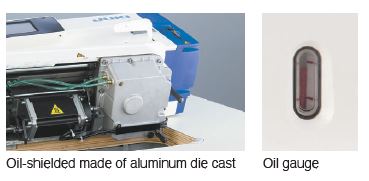

• Equipped with JUKI Shield Lubrication Design

  The newly developed automatic oil circulation mechanism fundamentally suppresses oil accumulation inside the frame, effectively preventing oil staining from components such as the needle bar.
  The oil-shielded components have been thoroughly optimized—not only in terms of precision, but also in their shape, layout, and even the number of screws—to maximize sealing performance and prevent oil leakage.
  These proprietary JUKI design features minimize the risk of leakage while enabling efficient and waste-free use of lubrication oil.

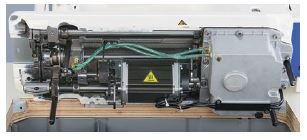

• Stepping motor drive for the thread trimmer and auto-lifter

  The drive mechanism for the thread trimmer and presser lifter uses a single stepping motor. The mechanism substantially reduces operating noise, especially for the thread trimmer.

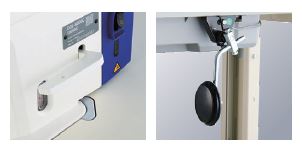

• Auto-lift and knee lifter

  Shared motor power with the thread trimmer now makes it possible to provide the auto-lifter as standard. A highly demanded knee-lifter is also provided as standard for further
  enhanced workability.

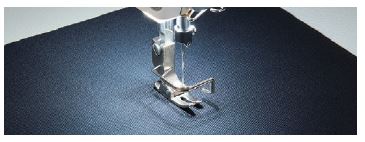

• Nipper device

  This device pulls the needle thread into the wrong side of the material at the beginning of sewing, thereby ensuring more beautifully-finished seams.





• Hand switches

  Two customizable hand switches are provided as standard. The assignable button functions include back-tack stitch, needle up/down stitch, one-stitch sewing, condensation stitch, etc.



• LED light

  Since the LED lights cast their light exactly downward to illuminate the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily as compared with the use of light from one direction. In addition, the illuminance of the LED lights can be adjusted in three steps and can be used as an auxiliary light for work.
