Proposal of optional items exclusively for PS-800
to further improve productivity and sewing quality
- ①Active tension device
- ②BK-8 Bobbin changer device
- ③Bobbin Thread Remaining Detector
- ④Bird’s nest prevention device
- ⑤Third thread tension unit
- ⑥Pen stick asm.
- ⑦Thick material kit
- ⑧Template lift device
- ⑨Plastic bobbin
- ⑩Needle guard hook
- ⑪Counter knife reinforcing plate for heavy weight
- ⑫Fabric Vacuum Function
- ⑬Chucking device
- ⑭Barcode reader
- ⑮Moving Knife for knit materials

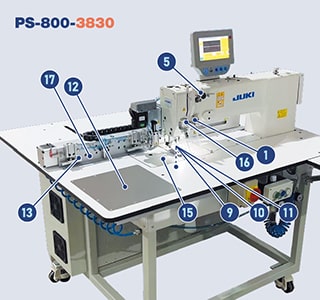

Target Models
- PS-800-13085
- PS-800-12080
- PS-800-8045
- PS-800-3830
- PS-800-2850
①Active tension device
- Quality improvement
Part Number:40228700

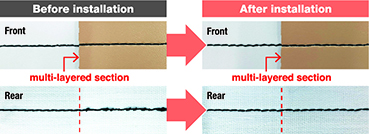

The active tension device can change the needle thread tension electrically. For the needle thread tension setting linked to the thickness of the cloth and the thread tension setting that changes according to the sewing direction, it is possible to input the tension value for each stitch from the panel.
②BK-8 Bobbin changer device
- Productivity improvement
- Safety improvement
Part Number:40228699
The BK-8 bobbin changer device automatically changes pre-set bobbin cases, saving operators the trouble of changing bobbins and increasing the production efficiency. Up to 7 spare bobbins can be set in the cassette.
●One cassette for BK-8 is included. The bobbin and bobbin case are not included.
By additionally using the separately sold spare cassette, further improvement in production efficiency can be expected. We recommend purchasing the item on the right at the same time when buying the BK-8.
Part Name | Part Number | Qty. |
---|---|---|
Spare Cassette | 40207417 | 1 |
Bobbin Case | 40225489 | 14 |
Bobbin | 40225494 | 14 |
③Bobbin Thread Remaining Detector
- Quality improvement
- Productivity improvement
- Safety improvement
Part Number:40228698
The bobbin thread remaining detector detects the remaining amount of bobbin thread with a sensor and you can stop the sewing machine at the specified amount before the bobbin thread runs out. Furthermore, by using it in combination with a bobbin changer, you can change the bobbin automatically. Therefore, operators can work without worrying about the remaining amount of bobbin thread.
●A special bobbin case (Part number: 40237773) is required.
④Bird’s nest prevention device
- Quality improvement
Part Number:40228695
The bird’s nest prevention device is installed on the machine head as an retrofit option to reduce the bird’s nest on the back of the material by drawing the needle thread at the beginning of sewing.
⑤Third thread tension unit
- Quality improvement
Part Number:40228696
By turning ON/OFF the third thread tension unit, it is possible to add needle thread tension to the existing tension and change the tension in the sewing multi-layered part or the sewing direction.
⑥Pen stick asm.
- Quality improvement
- Productivity improvement
Part Number:40228686
The pen stick asm. is a device that writes the sewing standard on the sewing material with a pen using the XY feeding mechanism. It can also be used for positioning in the next process.
⑦Thick material kit
- Quality improvement
Part Number:40228701
A thick material kit is a set of gauge parts for sewing thick materials. It is a set of intermediate presser D = 3.5, thread tension controller (assembly) (thick), needle hole guide D = 3.0, counter knife (thick), and hook (thick). Normally,this set is required when changing from an S spec sewing machine to an H spec one.
⑧Template lift device
- Productivity improvement
- Safety improvement
Part Number:40239772
The template lift device is a device that lifts and supports the template from under the table so that the template can be easily inserted into the clamp.
●For PS-800-13085 and PS-800-12080, it is standard equipment.
⑨Plastic bobbin
- Quality improvement
- Productivity improvement
Part Number:
- 40244784(Blue)
40245125(Red)
40245137(Yellow) - For 2-fold hook
(For PS-800-13085,PS-800-12080,PS-800-8045,PS-800-3830)
- 40244783(Blue)
40245124(Red)
40245136(Yellow) - For standard hook
(For PS-800-2850)
Plastic bobbins are lighter than aluminum or steel,which reduces thread bending after intermittent stitching and thread trimming. In addition, the needle thread tension at the beginning of sewing is also reduced, making stitching more stable. Furthermore, there is almost no rubbing inside the bobbin case, so it is as durable as aluminum or iron. A total of 3 colors are available, which is useful when managing the yarn count.
⑩Needle guard hook
- Quality improvement
- Productivity improvement
Part Number:40273423
The needle guard hook can prevent stitch skipping by maintaining a constant gap between the needle and the hook blade point with the needle guard. In addition, since the hook blade point is prevented from contacting the needle, it is expected to have the effect of extending the life of the hook blade point.
⑪Counter knife reinforcing plate for heavy weight
- Quality improvement
- Productivity improvement
Part Number:40269240
The counter knife reinforcing plate for heavy weight is a component that prevents thick threads from escaping between the moving knife and the counter knife due to elastic deformation of the counter knife when cutting thick threads. By preventing the elastic deformation of the counter knife, the moving knife and the counter knife are in close contact, enabling stable cutting of thick threads.
⑫Fabric Vacuum Function
- Quality improvement
- Productivity improvement
Part Number:
- 40228476(For PS-800-8045)
- 40286900(For PS-800-3830)
- 40275338(For PS-800-2850)
The vacuum device is installed under the table, making it easy to set sewing materials. It especially helps set soft and light materials. By devising the shape of the template, the process of folding the edge of a pocket, etc. can be facilitated.
⑬Chucking device
- Quality improvement
- Productivity improvement
Part Number:40286901
The template is precisely positioned and firmly fixed by the chucking device. You can prevent the template from being damaged due to template setting mistakes.
⑭Barcode reader
- Productivity improvement
- Safety improvement
Part Number:
40235194(For PS-800-13085, PS-800-12080, PS-800-8045)
The barcode reader can read the barcode pasted on the specified position of the template and call the sewing data of the template. Therefore, it is possible to eliminate human error such as erroneous recall of sewing data.
●Retrofitting is required if the country is not RFID certified.
⑮Moving Knife for knit materials
- Quality improvement
Part Number:40243631
The moving knife for knit materials (soft and stretchy materials). It is effective when applying more pressure to the knife for knit materials and so on. Even when the knife pressure is doubled, it has more than twice the durability compared to standard moving knives.
Compatibility table for each model
No. | Part Name | Part Number | 13085 | 12080 | 8045 | 3830 | 2850 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S Spec |
H Spec |
Rotary knife |
Laser | S Spec |
H Spec |
Rotary knife |
Laser | S Spec |
H Spec |
Rotary knife |
Laser | S Spec |
H Spec |
Rotary knife |
S Spec |
||||
1 | Active tension device |
40228700 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | |
2 | BK-8 Bobbin changer device | 40228699 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | - | - | - | |
3 | Bobbin Thread Remaining Detector |
40228698 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | - | - | - | |
4 | Bird’s nest prevention device |
40228695 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | - | - | - | |
5 | Third thread tension unit |
40228696 | 〇 | ★ | 〇 | 〇 | 〇 | ★ | 〇 | 〇 | 〇 | ★ | 〇 | 〇 | 〇 | ★ | 〇 | - | |
6 | Pen stick asm. | 40228686 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | - | - | - | |
7 | Thick material kit | 40228701 | 〇 | ★ | 〇 | 〇 | 〇 | ★ | 〇 | 〇 | 〇 | ★ | 〇 | 〇 | 〇 | ★ | 〇 | - | |
8 | Template lift device | 40239772 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | 〇 | 〇 | 〇 | 〇 | - | - | - | - | |
9 | Plastic bobbin for 2-fold hook |
Blue | 40244784 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - |
Red | 40245125 | ||||||||||||||||||
Yellow | 40245137 | ||||||||||||||||||
Plastic bobbin for standard hook |
Blue | 40244783 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 〇 | |
Red | 40245124 | ||||||||||||||||||
Yellow | 40245136 | ||||||||||||||||||
10 | Needle guard hook | 40273423 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | |
11 | Counter knife reinforcing plate for heavy weight |
40269240 | - | 〇 | - | - | - | 〇 | - | - | - | 〇 | - | - | - | 〇 | - | - | |
12 | Fabric Vacuum Function |
For 8045 | 40228476 | - | - | - | - | - | - | - | - | 〇 | - | 〇 | 〇 | - | - | - | - |
For 3830 | 40286900 | - | - | - | - | - | - | - | - | - | - | - | - | 〇 | - | 〇 | - | ||
For 2850 | 40275338 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 〇 | ||
13 | Chucking device | 40286901 | - | - | - | - | - | - | - | - | - | - | - | - | 〇 | 〇 | 〇 | - | |
14 | Barcode reader | 40235194 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | - | - | - | - | |
15 | Moving Knife for knit materials | 40243631 | - | - | 〇 | - | - | - | 〇 | - | - | - | 〇 | - | - | - | 〇 | - |
Options marked with ★ are equipped as standard.
