• Functions for improving seam quality and workability

  The long distance from the machine arm to the needle contributes to improved workability



• Double tension provided as : standard

  Single or Double can be set easy through Multi-functional 6-string switch, regarding the machine with trimmer.
  (Available for more thick material)



• Multi-functional 6-string switch (thread trimming switch)

  In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one switch.



• Walking-foot/presser-foot alternating vertical movement mechanism

  The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.



• Higher lift of the presser bar

  A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for expensive sofas, can be carried out with ease.



• Eccentricity of the feed driving cam is adjustable

  Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best-suited to the material and thread used.
   It is no longer necessary to prepare other subclass model sewing machines.



• New lubrication system

  Lubrication system is powerful and stable even low speed.



• New bobbin thread spool device

  New bobbin thread spool device is no neccessity of rolling thread manually.

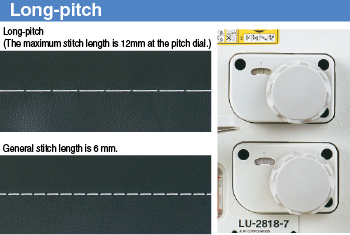

• Stitch length can be changed over among different lengths

  The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.

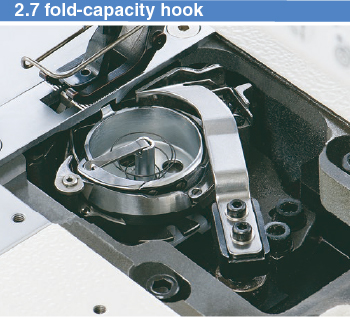

• 2.0 / 2.7 fold-capacity hook

  The hook which can be adjusted with screw amout of needle guard contact to needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.

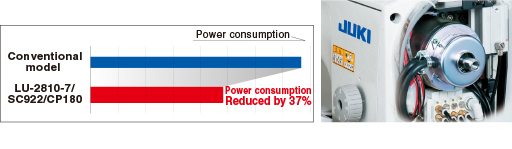

• High-torque direct-drive motor is installed

  The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
  The direct-drive motor system has been adopted by all of the sewing machines with a thread trimmer. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved responsiveness.
  In addition, the machine is no longer provided with a V-belt. This means that the adoption of the direct-drive motor is also effective in the elimination of belt shavings. Power is directly transmitted from the motor to the sewing machine, thereby contributing to reduced power consumption. (This sewing machine reduces power consumption by 37% as compared with the conventional models.) Adoption of a direct-driven main shaft and a revamping of mechanism design contribute to remarkably reduced noise. Noise has been reduced by 3.5dB as compared with the conventional model to produce this operator-friendly machine.

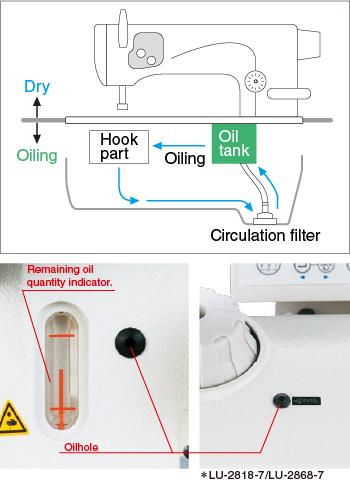

• New-type tank style automatic lubrication mechanism has been adopted

  The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank.
  This method saves the effort of oiling and reduces oil consumption.
  The remaining oil quantity indicator is provided on the front face of the machine head. Lubrication can be carried out without tilting the machine head.



Cutting-edge Lineup

• LU-2810

  Semi-dry, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.0 Fold-Capacity Hook

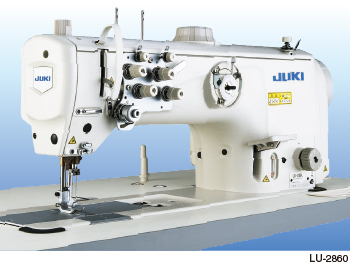

  LU-2860

  Semi-dry, 2-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.0 Fold-Capacity Hook

  High and semi-long arm has been adopted. Wide machine bed area contributes to improved workability. Direct-drive, unison-feed, Lockstitch machine with a vertical-axis large hook providing substantially improved functions and performance.

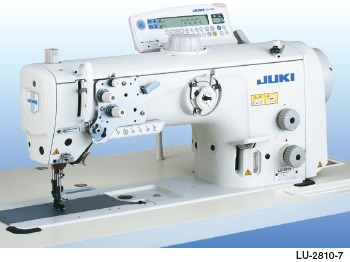

• LU-2810-7

  Semi-dry Direct-drive, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.0 Fold-Capacity Hook with automatic thread trimmer
  LU-2860-7

  Semi-dry Direct-drive, 2-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.0 Fold-Capacity Hook with automatic thread trimmer

  High and long arm has been adopted.
  The machine is suited to the sewing of car seats, sofas and bags. It is a sewing machine provided with dramatically improved workability and functions which are required for sewing large products and extra heavy-weight materials.

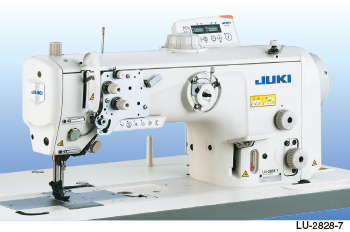

• LU-2828A-7

  Semi-dry Direct-drive, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.7 Fold-Capacity Hook
  (needle thread roll-in and shorter - thread remaining type)

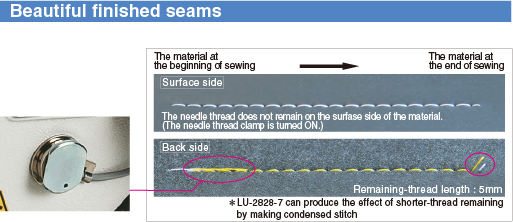

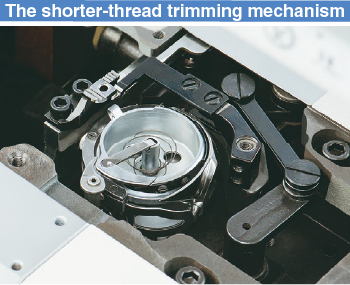

  The shorter-thread remaining type LU-2828A-7 is a high-performance sewing machine. It leaves a shorter thread on the material at the beginning of sewing by means of the needle thread clamp device, as well as at the end of sewing by means of the thread trimmer which is provided with a shorter-thread remaining function. This means that manual thread nipping both at the beginning and at the end of sewing is no longer required, thereby helping reduce operator fatigue. Thanks to the adoption of a 2.7-fold hook, the frequency of bobbin thread changing is reduced and workability is improved.









• LU-2818AL-7

  Semi-dry Direct-drive, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (long-pitch type)

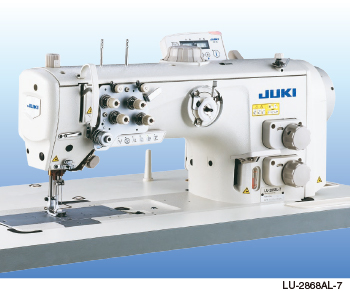

  LU-2868AL-7

  Semi-dry Direct-drive, 2-needle, Unison-feed, Lockstitch
  Machine with Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (long-pitch type)

  This model is the most-desired sewing machine for sewing furniture such as sofas. It is best-suited to topstitching with a long stitch pitch.
  During the topstitching process, the longer distance from the machine arm to the bed, in particular, effectively demonstrates the machine's improved workability.







Model name	LU-2810 LU-2810N	LU-2860 U-2860N	LU-2810-7 LU-2810N-7	LU-2860-7 LU-2860N-7
Type	1-needle	2-needle	1-needle with automatic thread trimmer	2-needle with automatic thread trimmer
Max. sewing speed	3,000sti/min*	2,700sti/min*	3,000sti/min*	2,700sti/min*
Max. stitch length	9mm
Stitch length dial	1 pitch dial		2 pitch dial
Presser foot	Auto: 20mm, By hand: 10mm
Auto lifter	Option		Provide as standard
Alternating vertical movement	1~9mm
Alternating vertical movement adjusting method	Large dial
DL device	-		Provide as standard
Needle thread tension	Double-tension		Single/Double-tension
Hook	Vertical axis 2 fold-capacity hook
Bottom-feed micro-adjustment mechanism	Provided as standard
Needle	135×17 Nm160 (Nm125~Nm180)
Thread	#30~#5, B46~B138, Nm=60/3~20/3
Lubrication	Semi-dry head automatic (Tank system)
One-touch type reverse feed switch	-		Provide as standard
Hand switch	-		Multi-functional 6-string switch
Safety mechanism	Provided as standard (reset with the push of a button)
Power requirement /Power consumption	-		Single-phase 100~120V / 200~240V , 3-phase 200~240V / 180VA (with automatic thread trimmer)
Machine head weight	56kg	61kg		66kg

^{* "sti/min" stands for "Stitches per Minute."}

Model name	LU-2818AL-7 LU-2818NAL-7		LU-2868AL-7		LU-2828A-7 LU-2828NA-7
Type	1-needle, Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (long-pitch type)		2-needle, Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (long-pitch type)		1-needle, Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer (needle thread roll-in and shorter - thread remaining type)
Max. sewing speed	3,000sti/min*		2,700sti/min*		3,000sti/min*
Max. stitch length	12mm				9mm
Stitch length dial	2 pitch dial
Presser foot	Auto: 20mm, By hand: 10mm
Auto lifter	Provide as standard
Alternating vertical movement	1~9mm
Alternating vertical movement adjusting method	Large dial
DL device	Provide as standard
Needle thread tension	Single/Double-tension
Hook	Vertical axis 2.7 fold-capacity hook
Bottom-feed micro-adjustment mechanism	Provided as standard
Needle	135×17 Nm160  (Nm125~Nm180)				134×35 Nm140 (Nm125~Nm180)
Thread	#30~#5, B46~B138, Nm=60/3~20/3
Lubrication	Semi-dry head automatic (Tank system)
One-touch type reverse feed switch	Provide as standard
Hand switch	Multi-functional 6-string switch
Safety mechanism	Provided as standard (reset with the push of a button)
Power requirement /Power consumption	Single-phase 100~120V / 200~240V , 3-phase 200~240V / 180VA (with automatic thread trimmer)
Machine head weight	66kg		68kg		62kg

^{* "sti/min" stands for "Stitches per Minute."}

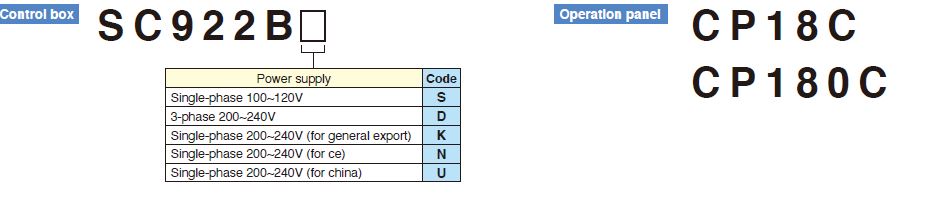

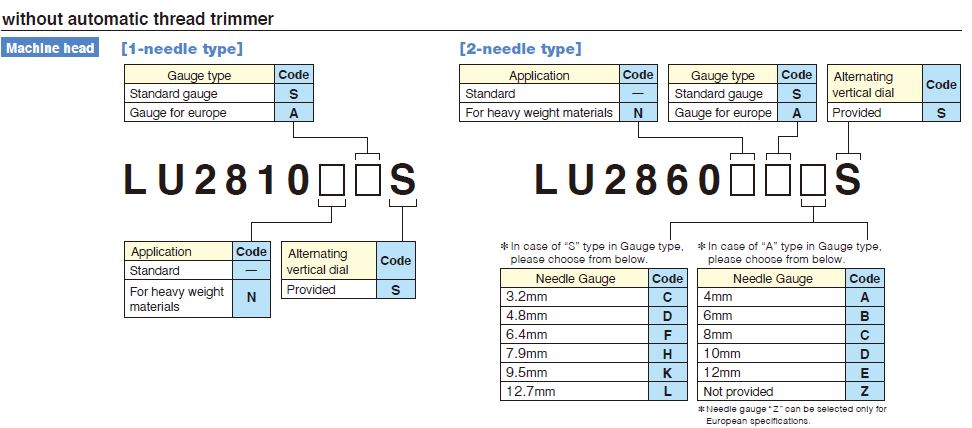

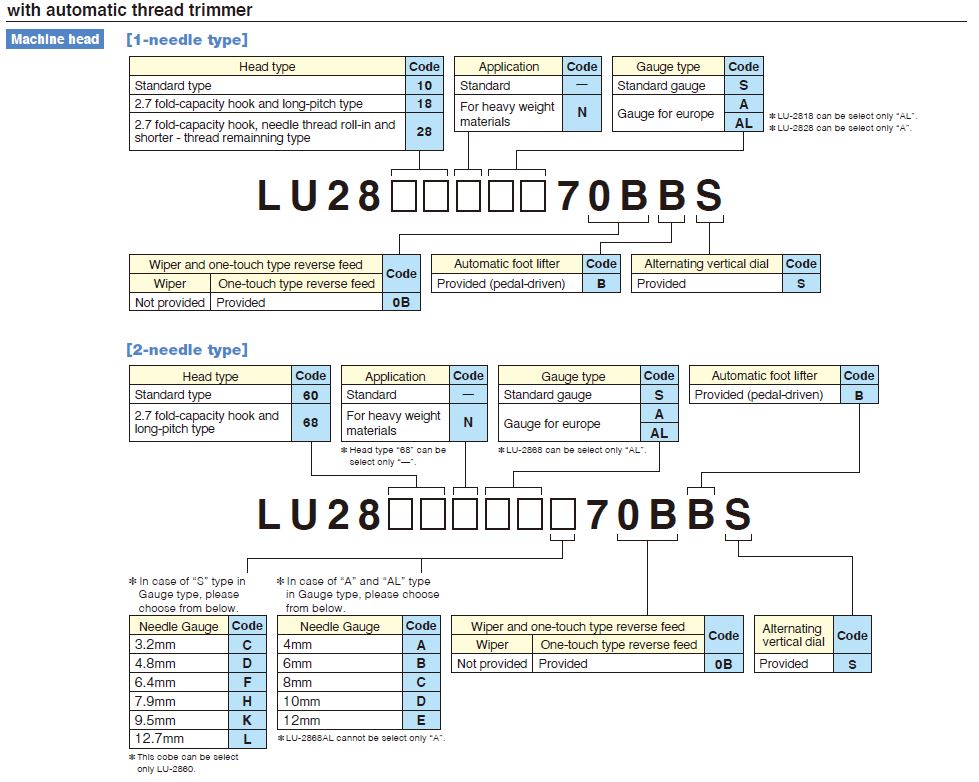

When you place orders

LU-2810
LU-2810-7

Guage			THROAT PLATE		FEED DOG		FEED FOOT ASM.		FEED FOOT
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N	P/N	P/N		P/N		P/N
Standard			40112212	40126349	40133270		40143061		-
OP			40133271		-		-		-

Guage			PRESSER FOOT ASM.		SLIDE PLATE_LEFT		SLIDE PLATE_RIGHT		SLIDE PLATE WINDOW
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N		P/N		P/N	P/N	P/N	P/N
Standard			21350152		40112224		40142215	40112225	-	-
OP			-		-		40133312(With a window)		22601504

Guage			FEED FOOT		PRESSER FOOT ASM.		CENTER PRESSER FOOT		OUTER PRESSER FOOT ASM.
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N		P/N		P/N		P/N
OP: For piping	3/16	4.8	B1478245000		B15302450AD		B147924500D		B15312450AD
	1/4	6.4			B15302450AF		B147924500F		B15312450AF
	5/16	7.9			B15302450AH		B147924500H		B15312450AH
	3/8	9.5			B15302450AK		-		-

Guage			FEED FOOT_TEETH		PRESSER FOOT ASM.
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N		P/N
OP: For piping	3/16	4.8	B147424500D		B15272450AD
	1/4	6.4	B147424500F		B15272450AF
	5/16	7.9	B147424500H		B15272450AH
	3/8	9.5	B147424500K		B15272450AK

Guage			FEED FOOT_RIGHT-EDGE PRESSER		PRESSER FOOT ASM._RIGHT-EDGE PRESSER
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N		P/N
OP			B147624500A		B15292450AA
Remarks			With teeth		With teeth

Guage			FEED FOOT_LEFT-EDGE PRESSER		PRESSER FOOT ASM._LEFT-EDGE PRESSER		FEED FOOT_LEFT-EDGE PRESSER		PRESSER FOOT ASM._LEFT-EDGE PRESSER
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N		P/N		P/N		P/N
OP			10338309		B1525563SA0		B14702450A0		B15242450A0
Remarks			With teeth		With teeth		Slit		-

Guage			FEED FOOT_FOR BINDING		FEED FOOT_FOR BINDING		PRESSER FOOT ASM._FOR BINDING
Figure
Model			LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7	LU-2810S	LU-2810S-7
-	inch	mm	P/N		P/N		P/N
OP			MAQ09307000		MAN10452000		MAQ093080A0
Remarks			-		-		With teeth

LU-2818AL-7
LU-2828A-7

Guage			THROAT PLATE				FEED DOG
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178
For Europe			40112211	40126350	40147949	40126350	40133272		40125925	40133272
OP			-	-	-	-	40133273		40133272	-
OP:Without groove			-	-	-	-	10717205			-
OP: For fine yarn			-	-	-	-	10717304			-

Guage			FEED FOOT ASM.
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178
For Europe			10711653		10712354	10711653

Guage			PRESSER FOOT ASM.				SLIDE PLATE_FRONT
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178
For Europe			10712552				40147918

Guage			SLIDE PLATE_LEFT				SLIDE PLATE_RIGHT
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A-7/X73178
For Europe			40112224				40142215	40112225	40147944	40147944
OP			-				40133312 (With a window)		40155087 (With a window)	-

Guage			FEED FOOT ASM._FOR PIPING			PRESSER FOOT ASM._FOR PIPING			FEED FOOT ASM._FOR PIPING
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-	inch	mm	P/N			P/N			P/N
OP	-	3	10745354			10747350			10746352
	-	4	10745453			10747459			10746451
	-	5	10745552			10747558			10746550
	-	6	10745651			10747657			10746659
Remarks			-			-			Adujustment type

Guage			FEED FOOT ASM._FOR URETHANE			FEED FOOT ASM._FOR URETHANE			FEED FOOT ASM._FOR URETHANE
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-			P/N			P/N			P/N
OP			10711653			10712354			10711752
Remarks			For light-weight urethane			For light-weight urethane,Without groove			For heavy-weight urethane

Guage			PRESSER FOOT ASM._FOR URETHANE			FEED FOOT ASM._RIGHT EDGE PRESSER			PRESSER FOOT ASM._RIGHT EDGE PRESSER
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-			P/N			P/N			P/N
OP			10712750			10711851			10712859

Guage			FEED FOOT ASM._LEFT EDGE PRESSER			PRESSER FOOT ASM._LEFT EDGE PRESSER
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-			P/N			P/N
OP			10711950			10712958

Guage			FEED FOOT ASM._WIDE TYPE			PRESSER FOOT ASM._WIDE TYPE
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-			P/N			P/N
OP			10712057			10713055

Guage			FEED FOOT ASM._CONTROL AREA SMALLNESS			FEED FOOT ASM._CONTROL AREA SMALLNESS			PRESSER FOOT ASM._CONTROL AREA SMALLNESS
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-			P/N			P/N			P/N
OP			10711653			10712354			10758456
Remarks			-			Without groove			-

Guage			FEED FOOT ASM._FOR OVERLAPPED SECTIONS OF MATERIAL			FEED FOOT ASM._FOR OVERLAPPED SECTIONS OF MATERIAL			PRESSER FOOT ASM._FOR OVERLAPPED SECTIONS OF MATERIAL
Figure
Model			LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7	LU-2810A	LU-2810A-7	LU-2818A-7
-			P/N			P/N			P/N
OP			10711653			10712354			10712651
Remarks			-			Without groove			-

LU-2860
LU-2860-7
LU-2868AL-7

Guage			THROAT PLATE		FEED DOG		NEEDLE CLAMP ASM.		PRESSER FOOT ASM.
Model			LU-2860S	LU-2860S-7	LU-2860S	LU-2860S-7	LU-2860S	LU-2860S-7	LU-2860S	LU-2860S-7
Figure
Needle guage size			P/N	P/N	P/N		P/N		P/N
Code	inch	mm	Without thread trimmer	With thread tremmer
D	3/16	4.8	40127004	40127023	40126146		21368154		21367651
F	1/4	6.4	40127005	40127024	40126147		21368253		21367750
H	5/16	7.9	40127006	40127025	40126148		21368352		21367859
K	3/8	9.5	40127007	40127026	40126149		21368451		21367958

Guage			WALKING FOOT ASM.		SLIDE PLATE			GUAGE SET
Model			LU-2860S	LU-2860S-7	LU-2860	LU-2860-7	LU-6868A-7	LU-2860S	LU-2860S-7
Figure								-
Needle guage size			P/N		P/N		P/N	P/N	P/N
Code	inch	mm						Without thread trimmer	With thread tremmer
D	3/16	4.8	21367156		40127056		40147945	40150791	40150803
F	1/4	6.4	21367255					40150792	40150804
H	5/16	7.9	21367354					40150793	40150805
K	3/8	9.5	21367453					40150794	40150806
Remarks			-		-		-	Without slide plate

Guage			FEED FOOT ASM._FOR CENTER GUIDE		FEED FOOT ASM._FOR CENTER GUIDE		PRESSER FOOT ASM._FOR CENTER GUIDE
Model			LU-2860S	LU-2860S-7	LU-2860S	LU-2860S-7	LU-2860S	LU-2860S-7
Figure
Needle guage size			P/N		P/N		P/N
OP	inch	mm
	5/16	7.9	21372552		21373758		21374657
	3/8	9.5	21372651		21373857		21374756
Remarks			-		Slit		-

Guage			GUAGE SET				THROAT PLATE
Model			LU-2860A	LU-2860A-7	LU-2868A-7		LU-2860A	LU-2860A-7	LU-2868A-7	LU-2868A-7
Figure			-
Needle guage size			P/N				P/N	P/N	P/N	P/N
Code	-	mm	Without thread trimmer	With thread tremmer	-	12mm to 9mm exchange	Without thread trimmer	With thread tremmer		12mm to 9mm exchange
-	-	3	40150760	40150775	-	-	40144316	40144330	-	-
-	-	4	40150761	40150776	-	-	40144317	40144331	-	-
B	-	6	40150762	40150777	40155973	40155979	40126976	40126986	40147951	40126986
C	-	8	40150763	40150778	40155974	40155980	40126977	40126987	40147952	40126987
D	-	10	40150764	40150779	40155975	40155981	40126978	40126988	40147953	40126988
E	-	12	40150765	40150780	40155976	40155982	40126979	40126989	40147954	40126989
-	-	14	40150766	40150781	-	-	40144319	40144333	-	-
-	-	16	40150767	40150782	-	-	40144320	40144334	-	-
-	-	18	40150768	40150783	-	-	40144321	40144335	-	-
-	-	20	40150769	40150784	-	-	40144322	40144336	-	-
-	-	22	40150770	40150785	-	-	40144323	40144337	-	-
-	-	24	40150771	40150786	-	-	40144324	40144338	-	-
-	-	25	40150772	40150787	-	-	40144325	40144339	-	-
-	-	30	40150773	40150788	-	-	40144327	40144341	-	-
-	-	36	40150774	40150789	-	-	40144328	40144342	-	-
Remarks			A slide plate is not containces in the contents of composition of a guage set.				-
			12mm to 9mm exchange guage set becomes the composition of the [9mm guage set] + [sending dial stopper pin].				-

Guage			FEED DOG			PRESSER FOOT ASM.			FEED FOOT ASM.
Model			LU-2860A	LU-2860A-7	LU-2868A-7	LU-2860A	LU-2860A-7	LU-2868A-7	LU-2860A	LU-2860A-7	LU-2868A-7
Figure
Needle guage size			P/N			P/N			P/N
Code	-	mm
-	-	3	40144344		-	40144390		-	40061164		-
-	-	4	40144352		-	10781557		-	40061806		-
B	-	6	40126142			10781656			40135589
C	-	8	40126143			10781755			40135590
D	-	10	40126144			10781854			40038898
E	-	12	40126145			10781953			40095748
-	-	14	40144354		-	10782050		-	40144407		-
-	-	16	40144355		-	10782159		-	40144408		-
-	-	18	40144356		-	10782258		-	40144409		-
-	-	20	40144357		-	10782357		-	40144410		-
-	-	22	40144358		-	10782456		-	40144411		-
-	-	24	40144359		-	10782555		-	40144412		-
-	-	25	40144360		-	40144391		-	40144413		-
-	-	30	40144362		-	10782654		-	40144414		-
-	-	36	40144363		-	10782753		-	40144419		-

Guage			NEEDLE CLAMP ASM.			SLIDE PLATE		SLIDE PLATE FRONT
Model			LU-2860A	LU-2860A-7	LU-2868A-7	LU-2860A	LU-2860A-7	LU-2860A	LU-2860A-7	LU-2868A-7
Figure
Needle guage size			P/N			P/N		P/N
Code	-	mm
-	-	3	40144367		-	40112225		-			40156017 (With window)
-	-	4	40144369		-			-
B	-	6	40038778			40127056		40147918
C	-	8	40038776
D	-	10	40038774
E	-	12	40038772
-	-	14	40144371		-	40144416		-
-	-	16	40144373		-			-
-	-	18	40144375		-			-
-	-	20	40144377		-	40144417		-
-	-	22	40144379		-			-
-	-	24	40144381		-			-
-	-	25	40144383		-			-
-	-	30	40144385		-	40144418		-
-	-	36	40144387		-			-

Guage			FINGER GUARD		STOPPER PIN
Model			LU-2860A	LU-2860A-7	LU-2868A-7
Figure
Needle guage size			P/N		P/N
Code	-	mm
-	-	3	-		-
-	-	4	10786903		-
B	-	6			PH0400062C0
C	-	8
D	-	10	10787000
E	-	12
-	-	14	10787109		-
-	-	16			-
-	-	18			-
-	-	20	10787208		-
-	-	22			-
-	-	24			-
-	-	25			-
-	-	30	10787307		-
-	-	36	10787406		-

Guage			FEED FOOT ASM._FOR CENTER GUIDE			PRESSER FOOT ASM._FOR CENTER GUIDE
Model			LU-2860A	LU-2860A-7	LU-2868A-7	LU-2860A	LU-2860A-7	LU-2868A-7
Figure
Needle guage size			P/N			P/N
-	Code	mm
OP	D	10	40039271			40038806
	E	12	40095750			40038802
