Direct-drive, 1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook with Automatic Thread Trimmer

The machine achieved a longer distance from machine arm to needle by adopting a high long arm.
The DU-1481-7 is suited to the sewing and decorative shape-tacking of heavy-weight materials such as car seats, sofas, bags and stroller.

Product features

  • Increased productivity by improved operability

    The machine achieves a longer distance from machine arm to needle by adopting a high long arm.
    This means the machine dramatically increases workability when sewing large products such as sofas and car seats.

  • Needle thread clamping device

    The needle thread device is standard equipment. As a result, the needle thread at the start of sewing does not come out on the cloth, so the start of sewing beautiful finished seams.
    Operators use scissors less often and can prevent damage to the material caused by thread picking.

  • Feed mechanism

    The machine's powerful top & bottom feed demonstrates its performance when sewing car fabric seats. The lift of the presser foot is as high as 16 mm, which responds to the sewing of heavy-weight materials.

Basic performance

  • Mechanism of thread trimmer

    The thread trimmer achieves consistent thread trimming regardless of thickness of the thread, i.e., from thin to thick thread. The machine has adopted the rotary thread trimming mechanism which matches, in particular, design stitch with thick thread for furniture and bags. The automatic thread trimmer improves workability and increases productivity. When compared with the sewing machine without a thread trimmer, the DU-1481-7 substantially decreases the consumption of thread. The knife pressure can be adjusted with the adjusting screw.

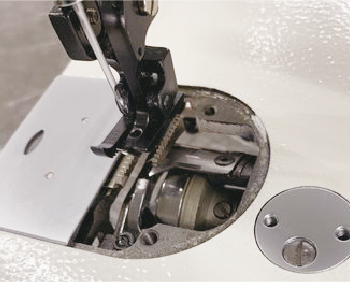

  • Horizontal-axis full-rotary double-capacity hook

    The adoption of the horizontal-axis double-capacity hook helps reduce the frequency of bobbin thread replacement, thereby promising sewing work with efficiency. This hook is also helpful not only when sewing with thick thread but also when sewing a long seam length.

  • LED Light

    Standard equipped with LED light to illuminate the hand of the needle. The operator can set the brightness which is easy to work, improving work efficiency.

  • Direct-drive motor is installed

    The direct-drive motor system has been adopted by all of the sewing system with a thread trimmer. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved responsiveness.


Model name DU-1481-7
Max. sewing speed 2,200sti/min*
Max. stitch length 9mm (forward / backward)
Needle bar stroke 38mm
Lift of the presser foot By hand: 7mm, By knee: 16mm
Thread take-up Link type
Alternating vertical movement 2~5.5mm
Hook Horizontal-axis full-rotary double-capacity hook
Needle DP × 17 #23 (#18~#24)
Thread #30~#8
Pitch changing method By dial
Lubrication Automatic
Lubricating oil MACHINE OIL No.18 (ISO VG18 equivalent)
Distance from needle to machine arm 335mm×150mm
Weight of the machine head 37kg

*"sti/min" stands for "Stitches per Minute."

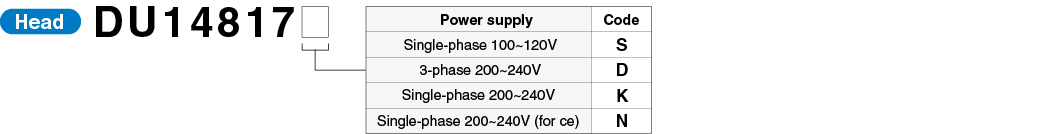

When you place orders
