Computer-controlled Cycle Machine with Input Function

New technologies have helped the AMS Series increase “productivity,” achieve ”energy conservation” in consideration of the global environment, and further improve “quality.”

Product features

  • The AMS-210EN Series comes in three different models which differ in sewing area

  • Slide-type thread take-up lever
    AMS-210EN-HL1306/7300

    The machine with a slide-type thread take-up lever is designed for improved stitching with heavy threads tension. JUKI's unique active tension mechanism which has been re-designed specifically for heavy-weight materials, as well as the slide-type thread take-up lever which is suited for sewing heavy-weight materials, increase the maximum tension by 50% more compared to that of the standard models of the JUKI AMS Series machines. The new model improves seam quality (thread tension) for sewing seat belts and general heavy-weight materials such as container belts and bags.

Basic performance

  • Cycle time is shortened

    • The sewing machine has achieved the industry's highest sewing speed of 2,800sti/min. The maximum sewing speed is reached by the 2nd stitch from the beginning of sewing. Since the sewing machine maintains its highest sewing speed immediately before the end of sewing and instantaneously decreases its speed, cycle time can be substantially decreased.
    • JUKI's unique stepping-motor controlled thread trimming mechanism is adopted to enable speedy and consistent thread trimming performance.
    • The machine demonstrates enhanced responsiveness due to the adoption of a main-shaft direct-drive system.

  • The maximum sewing speed per
    stitching-pitch (stitch length) is increased

    Sewing at the maximum sewing speed of 2,800sti/min is possible up to stitching pitch of 4mm for the AMS-210EN (the highest sewing speed and stitching pitch in the industrial sewing machine industry). Even for the larger pitches, the sewing speed is increased by 90% for the AMS-210EN and by 60% for the AMS-221EN at the maximum when compared with the conventional models, thereby reducing the cycle time.

    * The sewing speed is automatically controlled according to the stitching pitch.

  • Power consumption is substantially decreased

    The AMS Series are an economically-efficient model which has been designed to reduce power consumption.
    The AMS-210EN is an economically-efficient model which has been designed to reduce power consumption. The sewing machine has adopted a direct-drive system by means of a compact AC servomotor that is excellent in energy transmission to drive the main shaft, and has adopted an encoder-control system which drives the stepping motor with a minimum of power in accordance with the material thickness and stitch length to control the X-Y drive mechanism. Power consumption of the new AMS Series is reduced by 30% when compared with JUKI's conventional AMS-210E.

  • Improvement of seam quality

    The position of the feed can be checked during sewing by means of the encoder-controlled X-Y drive stepping motor. This remarkably improves accuracy of the feed. As a result, deformation of a sewing pattern which is likely to occur when sewing at a high speed or sewing a heavy-weight material is significantly reduced.

  • Semi-dry head

    The frame (needle bar unit and thread take-up unit) is lubricated with grease, and the hook is fed with a minute quantity of oil from the oil tank. JUKI's advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.

  • Programmable intermediate presser

    To support the sewing of multi-layered parts of materials, the lower dead point height of the intermediate presser can be changed steplessly during sewing (standard: 0~3.5mm; maximum: 0~7.0mm). The intermediate presser will now be able to clamp the material without fail, thereby preventing troubles in sewing, such as stitch skipping and thread breakage. Furthermore, flaws on the sewing product are prevented by maintaining the intermediate height as desired according to the material thickness. (The intermediate presser stroke is adjustable between 0 and 10mm.)

  • Two different types of feeding frames

    The feeding frame comes in two different types; the monolithic feeding frame and the separately-driven feeding frame. The separately-driven feeding frame enables easy placement of the sewing material on the machine since its right and left frame parts can be operated separately. Both the amount of lift and the ascending/descending speed of the feeding frame can be adjusted differently for the right and left parts of the frame.

  • Double-stepped stroke feeding frame

    The feeding frame can be lowered in two steps. It is very convenient for finely positioning the material on the sewing machine. The stopping height of the feeding frame can be set as desired with ease.

  • Active tension

    Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled. The needle thread tension, therefore, can be set in conjunction with the material thickness and can be corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.

  • The machine supports a broader range of materials and various sewing specifications

    The machine can be used for free pattern stitching, parts sewing, reinforcement stitching, etc.
    Examples of applications include the attaching of labels, emblems and name labels, the attaching of Velcro, various shape-tacking, and special bartacking.

  • Operation panel provided with programmable functions IP-420
    (provided as standard)

    The large-sized liquid crystal touch panel, which has been developed to ensure ease of operation, dramatically increases efficiency in edit work.

    The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
    The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.

    • Key-lock customization function
      The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
    • Simplified operation mode
      Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.

  • The memory storage capability of the main body of the sewing machine has been dramatically enhanced
    Now the USB-ready main body of the sewing machine uses many different kinds of media

    Sewing data created with the IP-420 can be stored in the memory of the main body of the sewing machine. The memory storage capacity is 500,000 stitches and 999 patterns (max. 50,000 stitches per pattern) at the maximum. In addition to the CompactFlash 33 card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (FD (floppy disks), SM (SmartMedia), CF (CompactFlash), SD (Secure Digital Card) etc.) by means of a USB thumb device and a card reader. The maximum number of stitches that can be stored in the memory for each medium is approximately 50,000,000.

Specification

Specification common to all models
(The machine with a slide-type thread take-up lever AMS-210EN-HL1306/7300 is excluded)

Max. sewing speed 2,800sti/min*
Stitch length 0.1~12.7mm (0.05mm step)
Needle bar stroke 41.2mm
Lift / Stroke of the intermediate presser Lifting amount: 20mm / Stroke: Standard 4mm (0~10mm)
Variable lower position of the intermediate presser Standard 0~3.5mm (max. 0~7.0mm)
Needle thread tension Active tension (electronic thread tension control mechanism)
Hook Double-capacity shuttle hook
Storage of pattern data in the memory Main-body memory: Max. 500,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
External media: Max. 50,000,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
Enlarging / Reducing facility 1~400% (0.1% step), Pattern enlargement / reduction can be done by increasing /
decreasing either stitch length or the number of stitches
Bobbin thread / Product counter Up / Down system (0~9,999)
Lubrication Semi-dry / hook section: minute-quantity lubrication (tank system)
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Sewing machine motor AC servomotor 550W (direct-drive system)
Power requirement / Power consumption Single-phase, 3-phase 200~240V/450VA

*Stitch length is 4mm or less for the AMS-210EN.
*sti/min is the abbreviation for “stitches per minute”

• For CompactFlash™, please use genuine JUKI products.
• "CompactFlash™"is a registered trademark of SanDisk Corporation, U.S.A.
• Microsoft Windows is a trademark of Microsoft Corporation, U.S.A., registered in the U.S.A. and other countries.
• Other company names and product names/brand names are trademarks or registered trademarks of the respective companies.



Model name AMS-210EN-SS1306 AMS-210EN-HS1306 AMS-210EN-SL1306 AMS-210EN-HL1306
Sewing area X : 130mm × Y : 60mm
Feeding frame type Monolithic feeding frame Separately-driven feeding frame
Motor-driven feeding frame (lifting amount: 25mm) Pneumatic feeding frame (lifting amount: 30mm)
Application Light- to medium-weight Medium- to heavy-weight Light- to medium-weight Medium- to heavy-weight
Needle DP×5(#14) DP×17(#18) DP×5(#14) DP×17(#18)
Thread #80~#30 #50~#2 #80~#30 #50~#2
Compressed air / Air consumption - 0.35~0.4(max. 0.55)MPa, 1.8dm³/min(ANR)
Dimensions / Weight 1,200mm(W)×710mm(D)×1,200mm(H) (thread stand is not included), Machine head: 69kg, Control box: 16.5kg



Model name AMS-210EN-SS1510 AMS-210EN-HS1510 AMS-210EN-SL1510 AMS-210EN-HL1510
Sewing area X : 150mm × Y : 100mm
Feeding frame type Monolithic feeding frame
Motor-driven feeding frame (lifting amount: 25mm) Pneumatic feeding frame (lifting amount: 30mm)
Application Light- to medium-weight Medium- to heavy-weight Light- to medium-weight Medium- to heavy-weight
Needle DP×5(#14) DP×17(#18) DP×5(#14) DP×17(#18)
Thread #80~#30 #50~#2 #80~#30 #50~#2
Compressed air / Air consumption - 0.35~0.4(max. 0.55)MPa, 1.8dm³/min(ANR)
Dimensions / Weight 1,200mm(W)×770mm(D)×1,200mm(H) (thread stand is not included), Machine head: 73kg, Control box: 16.5kg



Model name AMS-210EN-SL2210 AMS-210EN-HL2210
Sewing area X : 220mm × Y : 100mm
Feeding frame type Monolithic feeding frame
Pneumatic feeding frame (lifting amount: 30mm)
Application Light- to medium-weight Medium- to heavy-weight
Needle DP×5(#14) DP×17(#18)
Thread #80~#30 #50~#2
Compressed air / Air consumption 0.35~0.4 (max. 0.55) MPa / 1.8dm³/min(ANR)
Dimensions / Weight 1,200mm(W)×770mm(D)×1,200mm(H) (thread stand is not included), Machine head: 77kg, Control box: 16.5kg

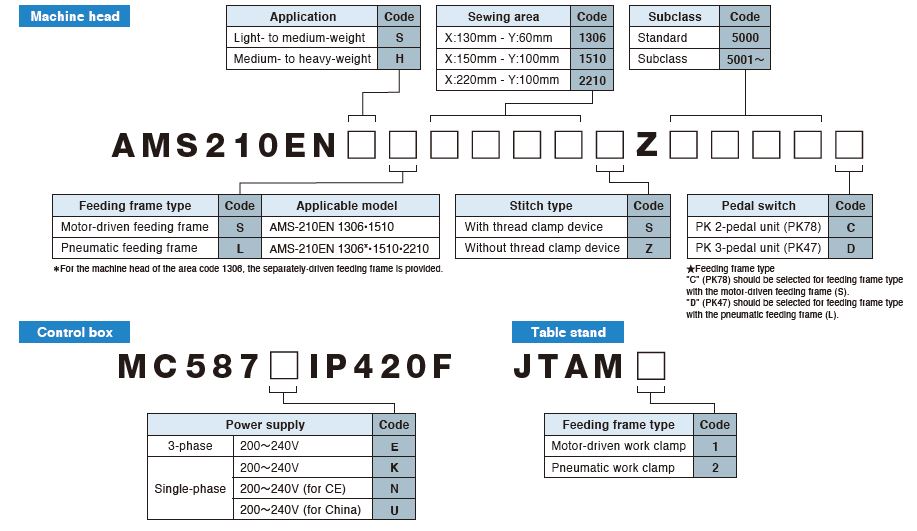

When you place orders

Gauge

AMS-210EN-SS1306
AMS-210EN-HS1306
AMS-210EN-SL1306
AMS-210EN-HL1306
AMS-210EN-SS1510
AMS-210EN-HS1510
AMS-210EN-SL1510
AMS-210EN-HL1510
AMS-210EN-SL2210
AMS-210EN-HL2210

Guage NEEDLE HOLE GUIDE INNER HOOK PRESSER INNER HOOK INTERMEDIATE PRESSER SECOND THREAD TENSION ASM. THREAD TRIMMER LEVER (SMALL) ASM. NEEDLE BAR THREAD GUIDE
Figure
Application Model Needle number P/N Remarks P/N Remarks P/N P/N Remarks
(ΦA×ΦB ×H×L)
P/N P/N P/N Remarks
Knitwear
(OP)
SS1306
SL1306
SS1510
SL1510
SL2210
#9 ~#11 B242621000C Φ1.6
(For knitwear)
14103253 Needle guard 0.8mm 40014964 40023632 Φ2.2×Φ3.6 ×5.7×38.5 40010508 24152800A0 B1405210000 2-hole
Light weight to medium weight
(S type)
#11 ~#14*1 B242621000A Φ1.6 14103352 Needle guard 1.3mm 40014964 B1601210D0E Φ1.6×Φ2.6 ×5.7×37.0
(OP)
40010508 24152800A0 B1405210000 2-hole
Medium weight to heavy weight
(H type)
HS1306
HL1306
HS1510
HL1510
HL2210
#14 ~#18*2 B242621000B Φ2.0 14103352 Needle guard 1.3mm 40061991 40023632 Φ2.2×Φ3.6 ×5.7×38.5 40029411 24152800A0 40026884 1-hole
B1601210D0FA Φ2.2×Φ3.6 ×8.7×41.5
(OP)
Heavy weight
(OP)
#18 ~#25 B242621000D
B242621000F
Φ2.4
Φ3.0
14103352 Needle guard 1.3mm 40061991 B1601210D0BA Φ2.7×Φ4.1 ×5.7×38.5 40029411 24152800A0 40026884 1-hole
14103659 Needle guard 1.7mm B1601210D0CA Φ3.5×Φ5.5 ×5.7×38.5
Heavy weight
(Slide type thread take up lever: Standard)
HL1306
(Sub-class 7300)
B1817210DAE Needle guard 1.7mm 14433601 Φ2.7×Φ4.1 ×5.7×38.5 1-hole
Extra heavy weight
(OP)
HS1306
HL1306
HS1510
HL1510
HL2210
B242621000G Φ3.0
(With counterbore)
14103659 Needle guard 1.7mm 40061991 B1601210D0BA Φ2.7×Φ4.1 ×5.7×38.5 40029411 24152800A0 40026884 1-hole
B242621000F Φ3.0
For the prevention of stitch skipping on heavy weight materials
(OP)
B242621000H Φ3.0
(Eccentric)
B1601210D0CA Φ3.5×Φ5.5 ×5.7×38.5 1-hole
When thick needle like MR type is used. ~#25 B242621000G Φ3.0
(Eith counterbore)
B1817210DAD Needle guard 1.9mm 40061991 B1601210D0CA Φ3.5×Φ5.5 ×5.7×38.5 40029411 24152800A0 40026884 1-hole

S type: Fitting thread number #80~#20, H type: Fitting thread number #50~#2
*1 The needle equipped as standard(DP×5 #14)
*2 The needle equipped as standard(DP×17 #18)
