High-speed, Cylinder-bed, 1-needle, Lockstitch, Zigzag Stitching Machine with Automatic Thread Trimmer
(with standard/3-step zigzag stitching pattern changeover function)
The sewing machine produces soft seams with consistency with a low tension applied to the thread even when it runs at a high speed.
Product features
Cylinder-bed,Lockstitch, Zigzag Stitching Machine
This is a cylinder-bed, lockstitch zigzag stitching machine based on the LZ-2284N-7 model. The cylinder-bed more than adequately facilitates the handling of tubular sewing products in circular sewing processes, thereby contributing to increased productivity and upgraded seam quality. This zigzag stitching machine is best suited to the attaching or counter stitching of elastic tape.
Specification
| Model name |
With automatic thread trimmer | LZ-2284C-7 | ||
|---|---|---|---|---|
| Stitch system | Standard/ 3-step zigzag |
|||
| Stitch pattern |  |
|||
| Max. sewing speed | 5,000sti/min* | |||
| Max. zigzag width | 10.0mm (standard) 10.0mm (3-step) |
|||
| Max. feeding amount | 2.5mm (standard) 2.0mm (3-step) |
|||
| Min. cutting allowance of lower knife | - | |||
| Lower knife driving method | - | |||
| Lift of the presser foot | By hand: 5.5mm By knee: 10.0mm |
|||
| Hook | DP hook (with titanium-treated inner hook) | |||
| Thread take-up | Rotary type | |||
| Lubrication | Fully automatic | |||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |||
| Needle (at the time of delivery) | 438 (Nm80) | |||
| Needle position changing mechanism | Provided as standard | |||
| Reverse feed stitching mechanism | Provided as standard | |||
| Needle throw pattern cam | Grooved cam | |||
| Standard Guage (at the time of delivery) |
Needle plate | 225-82407 | ||
| Feed dog | 225-81508 | |||
| Presser foot (asm.) | 235-03162 | |||
*sti/min is the abbreviation for “stitches per minute”

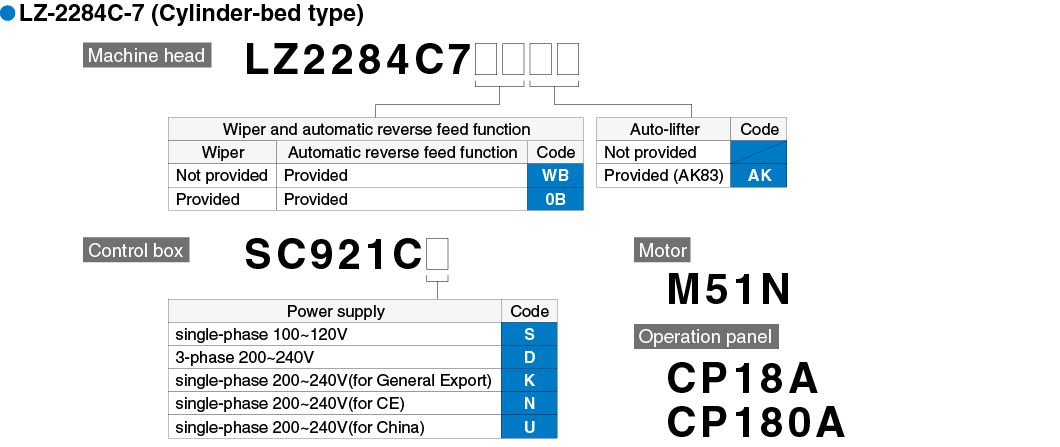

When you place orders
Gauge
LZ-2284C-7
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
 |
| - | P/N | P/N | P/N |
| - | 22582407 | 22581508 | 23503162 |
| Remarks | - | - | This is small finger guard (without wiper). The part number of the large finger guard (with wiper) is different. |
