High-speed, 1-needle, Lockstitch, Zigzag Stitching Machine(3-step Zigzag Stitching Pattern Changeover Function)

The machine produces high-quality soft seams.

Product features

  • Equipped with two different functions, the machine is available to handle a wider range of application

    LZ-2284A (Standard/3-step Zigzag) can perform two stitching patterns by one machine, thereby increasing the machine operation rate.

  • Switch between the standard zigzag stitching pattern and 3-step zigzag stitching pattern with simple one-touch control

    The operator can easily switch the needle-throwing pattern between the standard and 3-step zigzag stitching patterns using the lever located in the free space under the arm. When changing the sewing product or design, there's no need to adjust the sewing machine head or machine layout.

  • JUKI's unique thread trimming mechanism

    JUKI-specific loop spreading-structure knife sliding system enables thread trimming without fail whether needle throws to the right or the left.

  • The adjustable range of the feed mechanisms has been widened, thereby upgrading the machine's responsiveness to materials

    The feed mechanism has been improved by widening the adjustable range of the height and inclination of the feed dog. The feed locus has been optimized while placing great emphasis on the feed locus at the moment the needle penetrates the material to form a stitch. The weight of the feed mechanism has been reduced by using parts most of which are made of aluminum material. This facilitates sewing of overlapped sections of material that have to be securely held between the presser foot and the feed dog during sewing.

  • Adjustment for various feed timings

    Marker lines engraved on the face plate and the pictorial indication facilitate adjustment of the needle-to-feed timing and the hook timing.

  • Adjustment of oil quantity in the hook

    Oil feeding path of the LZ-2280A Series has been reviewed to enable feeding of consistent quantity of oil.

Basic performance

  • The sewing machine produces soft seams with consistency with a low tension applied to the thread

    Problems which are associated with low-tension sewing such as "double-catching" and "irregular stitches", as well as factors which affect seam quality such as "thread path", "thread bending resistance", "feed locus", "needle locus" and "timing" have been thoroughly reviewed, thereby successfully producing soft seams. The machine has adopted JUKI's established genuine hook and thread take-up lever.

Specification

Model name Without automatic
thread trimmer
LZ-2284A
With automatic
thread trimmer
LZ-2284A-7
Stitch system Standard / 3-step zigzag
Stitch pattern
Max. sewing speed 5,000sti/min*
Max. zigzag width 5 mm (standard)
10 mm (3-step)
Max. feeding amount 2.5mm
Lift of the presser foot By hand: 5.5 mm, By knee: 10 mm
Hook DP hook (with titanium-treated inner hook)
Thread take-up Rotary type
Lubrication Fully automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Needle 438SUK(Nm75)、DP×134(#10)
Needle position changing mechanism Provided as standard
Reverse feed stitching mechanism Provided as standard
Needle throw pattern cam Grooved cam

*sti/min stands for Stitches per Minute.

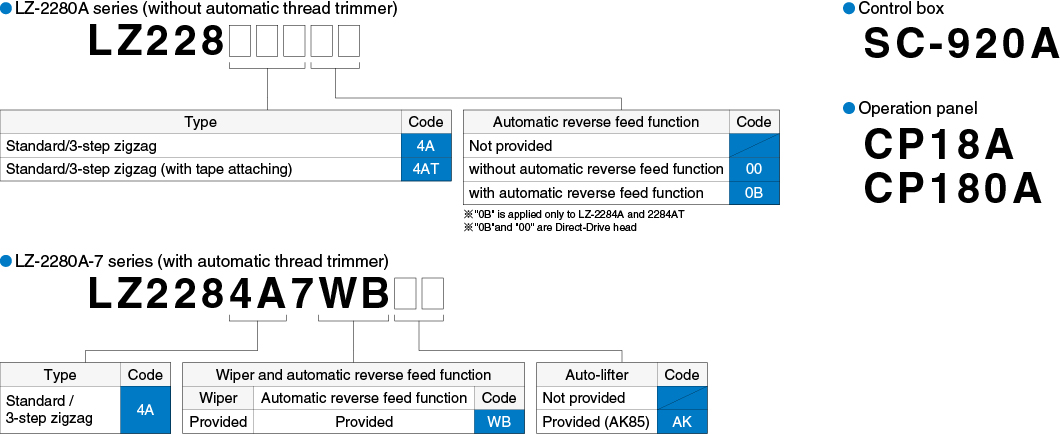

When you place orders
