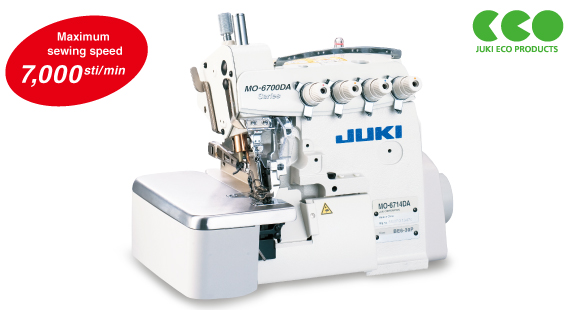

Semi-dry-head, High-speed, Overlock / Safety Stitch Machine

JUKI’s dry-head technology protects the sewing products from oil stains.
Best selling machine to eliminate oil stains on the sewing product.
JUKI’s cutting-edge dry-head technology has been introduced to the MO-6700S, which has an established reputation for its excellent seam quality and higher productivity.
Only the parts which mainly contribute to oil splashes are improved to have dry mechanisms to create the semi-dry-head overlock machine, MO6700DA series. The MO-6700DA Series is the best selling machine to eliminate oil stains on the sewing product.

> PEGASUS : MX series

Product features

  • Oil stains on the sewing product are eliminated

    • Oil splashes are substantially reduced to eliminate oil stains on sewing products, thereby upgrading the finished quality.
    • The frequency of stain removal or re-sewing is reduced.
    • The machine achieves a practical maximum sewing speed of 7,000sti/min.

  • Cutting-edge dry technology for achieving a lubrication-free mechanism

    • The needle bar mechanism and upper looper mechanism have been re-designed to require no lubrication.
    • The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.

  • Anti-material-slip type

    MO-6714DA--30P
    MO-6716DA--30P

    The sewing machine is fully equipped with adjusting devices and provisions to effectively prevent puckering of difficult-to-sew materials or new-generation materials. The operator is able to produce beautifully finished highquality seams without conducting difficult adjustments.

  • A variety of subclass machines is available

Specification

Model name MO-6704DA MO-6714DA MO-6716DA
Stitch type 1-needle overlock 2-needle overlock Safety stitching
Stitch style in the U.S.A. 504 514 516
Max. sewing speed 7,000sti/min*
Stitch length 0.8~4mm 1.5~4mm
Needle gauge (mm) - 2.0, 3.2 3.2, 4.8, 4.8+2.0, 3.2+2.0
Overedging width (mm) 1.6, 3.2, 4.0, 4.8 2.0, 3.2, 4.0, 4.8 3.2, 4.0, 4.8, 6.4
Bottom differential feed ratio For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
Needle bar stroke 24.5mm
Inclination angle of the needle 20°
Needle mechanism Needle bar method and upper /lower bushing
Needle DC×27 (excluding some subclass model)
Max. lift of the presser foot 7mm (excluding some subclass model)
Max. presser foot pressure 63.7N (6.5kgf)
Stitch adjusting method By push-button
Differential-feed adjusting method By lever (with micro-adjustment)
Weight of the machine head 28kg
Lubrication Automatic (The needle bar mechanism and upper looper mechanism do not requ ire lubrication.)
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler Option
Needle thread heat remover Option
Micro-lifter Provided as standard

*sti/min is the abbreviation for “stitches per minute”

When you place orders

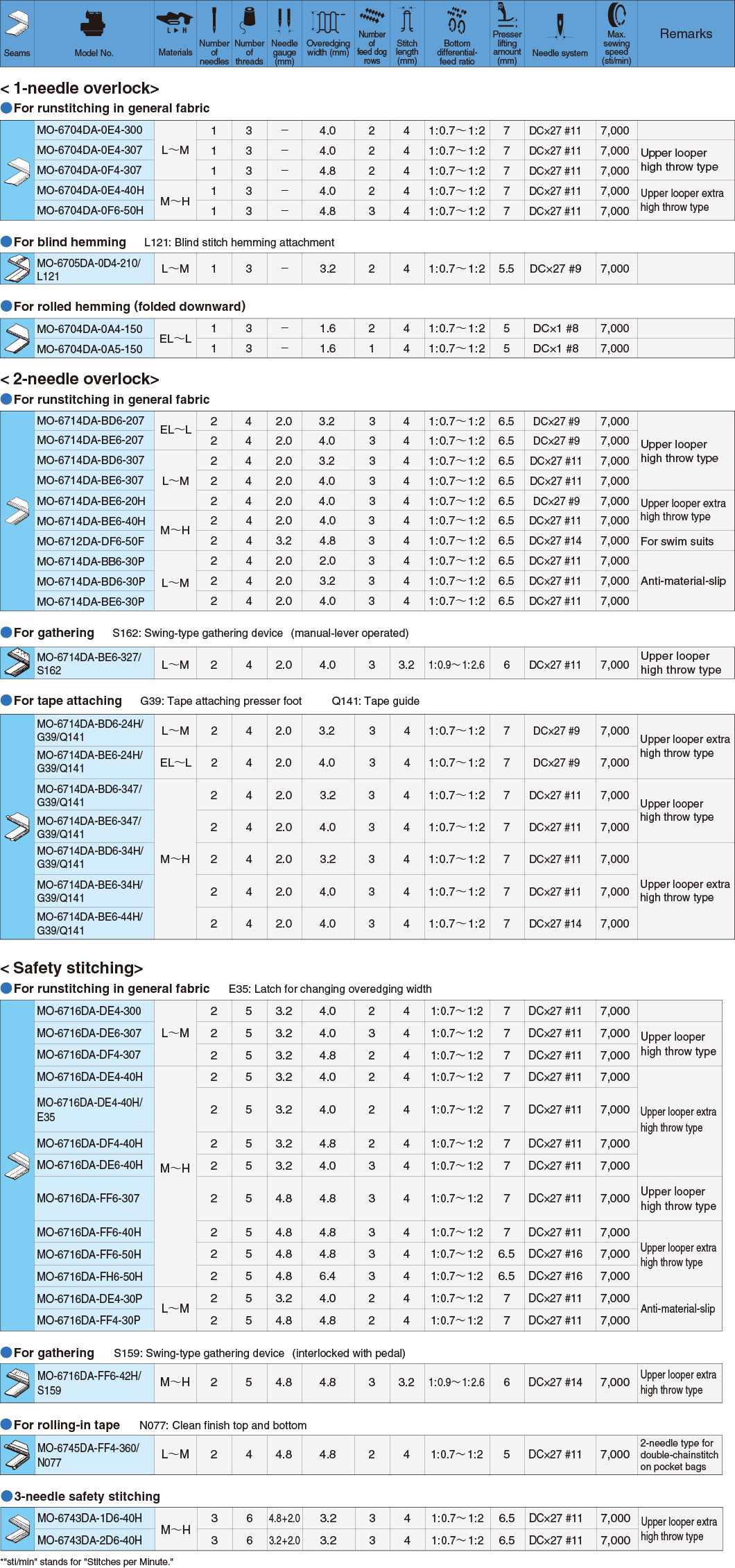

Subclass machine list

Gauge

MO-6704DA

Sub class Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE NEEDLE CLAMP UPPER LOOPER LOWER LOOPER
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6704DA-0E4-300 4 R4200J6ED00 13191606 13191309 13192802 11876158 11872009 B1507804C00 B1509804C00 13175005 11888104 11999307
MO-6704DA-0E4-307 4 R4200J6ED00 13191606 13191309 13192802 11876158 11872009 B1507804C00 B1509804C00 13175005 11888104 11999307
MO-6704DA-0F4-307 4.8 R4200J6FD00 13191606 13191309 13192802 11876257 11872009 B150781400P B1509804C0A 13175005 11888104 11999307
MO-6704DA-0E4-40H 4 R4200J6ED00 13191606 13191309 13192802 11876158 11872009 B1507804C00 B1509804C00 13175005 11991908 11999307
MO-6704DA-0F6-50H 4.8 R4300J6FE0B 11883303 13191309 11885605 11876455 11872009 11873007 B1509804C0A 13175005 11991908 11999307
MO-6705DA-0D4-210/L121 3.2 R4200J6DD00 13191606 13191309 13192802 11992153 11872009 11992104 11874807 13175005 11888104 11999307
MO-6704DA-0A4-150 1.6 R4200J6AC00 11898905 11887007 11899002 11876059 11872009 B1507804C00 11792900 13175005 11888104 11999307
MO-6704DA-0A5-150 1.6 R4100J6AC01 11882008 11887007 11885001 11876059 11872009 B1507804C00 11792900 13175005 11888104 11999307
Sub class Guage CLOTH WASTE COVER_WITH NEEDLE COOLER CLOTH WASTE COVER_
WITHOUT
NEEDLE COOLER		 UPPER KNIFE LOWER KNIFE NEEDLE HOLDER TRAVELING NEEDLE GUARD GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6704DA-0E4-300 4 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039400
MO-6704DA-0E4-307 4 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039401
MO-6704DA-0F4-307 4.8 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039401
MO-6704DA-0E4-40H 4 13104104 13104005 11845807 13150701 11890100 11890001 13132006 13131057 40039400
MO-6704DA-0F6-50H 4.8 13104104 13104005 11845807 13150701 11890100 11890001 13132006 13131057 40039400
MO-6705DA-0D4-210/L121 3.2 13104104 13104005 11845807 13150701 11890100 11890001 13131909 13131057 40039400
MO-6704DA-0A4-150 1.6 13104104 13104104 11845807 13150701 11890100 11890001 13131909 13131057 40039400
MO-6704DA-0A5-150 1.6 13104104 13104104 11845807 13150701 11890100 11890001 13131909 13131057 40039400

MO-6714DA

Sub class Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT ASM. PRESSER FOOT HINGE PRESSER FOOT STITCH TONGUE NEEDLE CLAMP UPPER LOOPER LOWER LOOPER
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6714DA-BD6-207 2*3.2 R4305J6DE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-207 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BD6-307
MO-6714DA-BE6-307 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-20H 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176103 11999307
MO-6714DA-BE6-40H 2*4 R4305J6EE00 13192000 13191309 13193206 11876851 11872009 B150781400P 11874203 12256905 12176103 11999307
MO-6712DA-DF6-50F 3.2*4.8 R4308J6FE0B 11882503 11987005 11790706 11877156 11872009 11790508 11790607 12149407 11996600 11995206
MO-6714DA-BB6-30P 2*2 R4305J6BE0A 12171500 13191309 12172003 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BD6-30P 2*3.2 R4305J6DE0A 12171500 13191309 12172003 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-30P 2*4 R4305J6EE0B 12171500 13191309 12172003 11876851 11872009 B150781400P 11874203 12256905 12176004 11999307
MO-6714DA-BE6-327/S162 2*4 R4305J6EE0A 11883402 13191309 12171807 11879350 11872009 11974102 B150981400P 12256905 12176004 11999307
MO-6714DA-BD6-24H/G39/Q141 2*3.2 R4305J6DE00 13192000 13191309 13193206 13182852 13178603 13184205 13187604 12256905 12176103 11999307
MO-6714DA-BE6-24H/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 13187604 12256905 12176103 11999307
MO-6714DA-BD6-347/G39/Q141 2*3.2 R4305J6DE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176004 11999307
MO-6714DA-BE6-347/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176004 11999307
MO-6714DA-BD6-34H/G39/Q141 2*3.2 R4305J6DE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176103 11999307
MO-6714DA-BE6-34H/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 B150981400P 12256905 12176103 11999307
MO-6714DA-BE6-44H/G39/Q141 2*4 R4305J6EE00 13192000 13191309 13193206 13182852 13178603 13184205 13187604 12256905 12176103 11999307
Sub class Guage CLOTH WASTE COVER_WITH NEEDLE COOLER CLOTH WASTE COVER_
WITHOUT
NEEDLE COOLER		 UPPER KNIFE LOWER KNIFE NEEDLE HOLDER TRAVELING NEEDLE GUARD GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6714DA-BD6-207 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-207 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-307
MO-6714DA-BE6-307 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-20H 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6714DA-BE6-40H 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6712DA-DF6-50F 3.2*4.8 13104104 13104005 11845807 13150701 11890407 11890001 13131909 13131156 40032579
MO-6714DA-BB6-30P 2*2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-30P 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-30P 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-327/S162 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-24H/G39/Q141 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6714DA-BE6-24H/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039400
MO-6714DA-BD6-347/G39/Q141 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BE6-347/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13131909 13131156 40039401
MO-6714DA-BD6-34H/G39/Q141 2*3.2 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039401
MO-6714DA-BE6-34H/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039401
MO-6714DA-BE6-44H/G39/Q141 2*4 13104104 13104005 11845807 13150701 11890308 11890001 13132006 13131156 40039401

MO-6716DA
MO-6743DA
MO-6745DA

Sub class Guage THROAT PLATE MAIN FEED DOG AUXILIARY FEED DOG DIFFERENTIAL FEED DOG HINGING PRESSER ASM. PRESSER FOOT HINGE FRONT PRESSER REAR PRESSER CHAIN LOOPER NEEDLE CLAMP UPPER LOOPER LOWER LOOPER
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6716DA-DE4-300 3.2*4 R4508J6ED00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11888104 11999307
MO-6716DA-DE6-307 3.2*4 R4608J6ED00 11882909 13191408 12173209 12153755 12156907 12162202 12164802 12257002 11888104 11999307
MO-6716DA-DF4-307 3.2*4.8 R4508J6FD00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11888104 11999307
MO-6716DA-DE4-40H 3.2*4 R4508J6ED00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11991908 11999307
MO-6716DA-DE4-40H/E35 3.2*4 R4508J6ED00 13192406 13191408 13193602 12153755 12156907 12162202 12164802 12257002 11991908 11999307
MO-6716DA-DF4-40H
MO-6716DA-DE6-40H 3.2*4 R4608J6ED00 11882909 13191408 12173209 12153755 12156907 12162202 12164802 12257002 11991908 11999307
MO-6716DA-FF6-307 4.8*4.8 R4612J6FD00 11884004 13191408 12173308 12154258 12157004 12162707 12165304 12257507 11888104 11999307
MO-6716DA-FF6-40H 4.8*4.8 R4612J6FD00 11884004 13191408 12173308 12154258 12157004 12162707 12165304 12257507 11991908 11999307
MO-6716DA-FF6-50H 4.8*4.8 R4612J6FF00 11883006 13191408 12173506 11991171 11991023 11991114 11991205 12257507 11991908 11999307
MO-6716DA-FH6-50H 4.8*6.4 R4612J6HG00 11883006 13191408 12173506 11991171 11991023 11991114 11991205 12257507 11991908 11999307
MO-6716DA-DE4-30P 3.2*4 R4508J6ED0A 12171302 13191408 12174306 11879954 11872504 B1507816D0R 11875804 12257002 11888104 11999307
MO-6716DA-FF4-30P 4.8*4.8 R4512J6FD0A 12171609 13191408 12174702 12154258 12157004 12162707 12165304 12150306 11888104 11999307
MO-6716DA-FF6-42H/S159 4.8*4.8 R4612J6FD0A 12170908 13191408 12174504 12154852 12157004 12162707 12165304 12257507 11991908 11999307
MO-6743DA-1D6-40H 4.8*2*3.2 R4612J6DE01 11884004 13191408 12173308 11878055 11872007 B1507843F00 11875507 12275004 12176103 11999307
MO-6743DA-2D6-40H 3.2*2*3.2 R4608J6DE01 11882305 13191408 12173308 11877958 11872116 B1507843D00 11875408 12150504 12176103 11999307
MO-6745DA-FF4-360/N077 4.8*4.8 40026881 40031382 - 40031381 40031637 11872405 40026885 12164802 12150306 - -
Sub class Guage CHAIN LOOPER CLOTH WASTE COVER UPPER KNIFE LOWER KNIFE NEEDLE HOLDER NEEDLE HOLDER NEEDLE HOLDER TRAVELING NEEDLE GUARD GUIDE SUPPORT GAUGE UPPER LOOPER ARM UPPER LOOPER GUIDE THREAD PLATE CLAW
Figure
Needle width Overedging width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
MO-6716DA-DE4-300 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131057 40039400 -
MO-6716DA-DE6-307 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13131909 13131156 40039401 -
MO-6716DA-DF4-307 3.2*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13131909 13131156 40039401 -
MO-6716DA-DE4-40H 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-DE4-40H/E35 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 12278602
MO-6716DA-DF4-40H
MO-6716DA-DE6-40H 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-FF6-307 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13131909 13131156 40039401 -
MO-6716DA-FF6-40H 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-FF6-50H 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-FH6-50H 4.8*6.4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6716DA-DE4-30P 3.2*4 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131057 40039400 -
MO-6716DA-FF4-30P 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131057 40039400 -
MO-6716DA-FF6-42H/S159 4.8*4.8 12120705 13104203 11845906 13150701 12015301 12015400 12177903 11890001 13132006 13131156 40039400 -
MO-6743DA-1D6-40H 4.8*2*3.2 12120705 13104203 11845906 13150701 11999406 12015301 11999406 11890001 13132006 13131156 40039400 -
MO-6743DA-2D6-40H 3.2*2*3.2 12120705 13104203 11845906 13150701 11999406 12177903 - 11890001 13132006 13131156 40039400 -
MO-6745DA-FF4-360/N077 4.8*4.8 11999604 13105309 11845807 13150701 11890902 11891009 12177903 - - - - -
