Computer-controlled Cycle Machine with Input Function

The machine speedily finishes a wider sewing area. It substantially reduces the cycle time.

Product features

  • The cycle machine, which has a wider sewing area, achieves an improved seam quality, increased productivity and easier operation

    The machine not only achieves higher productivity due to instantaneous increases/decreases in sewing speed at the beginning /end of sewing and increased speed of thread trimming, but also achieves a flexible responsiveness to materials to promise enhanced seam quality due to JUKI's unique active tension and programmable intermediate presser.
    The AMS-EN Series has been favorably received in the market because of its ease of use, achieved by the smooth setting of sewing material and the large-sized color liquid crystal touch panel.

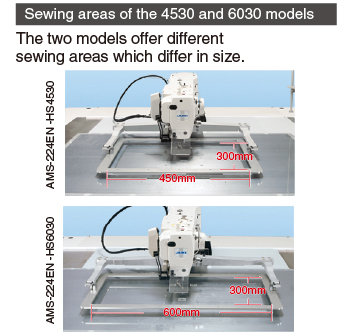

    The following two additional models are now added to the Series:
    The AMS-224EN-4530 [450mm(X)×300mm(Y)]
    The AMS-224EN-6030 [600mm(X)×300mm(Y)]

    A newly developed encoder-controlled stepping motor system has been adopted for the X-Y feed mechanism. This contributes to more accurate sewing performance and increased productivity.

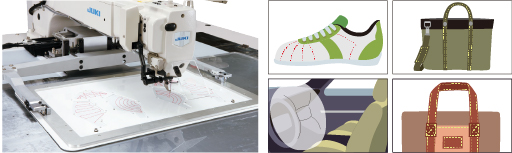

  • Applications

    The machine performs various kinds of stitching, making the most out of its wider sewing area in various sewing applications such as attaching handles to bags and pouches, attaching belts, sewing many small parts at a time, attaching parts to shoes and sports shoes (one pair of shoes) and sewing air bags.

Basic performance

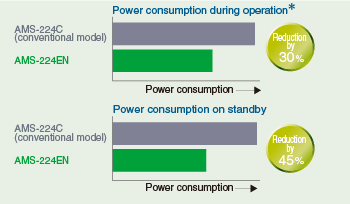

  • Power consumption is substantially reduced

    The AMS-224EN has been designed laying importance on electrical power saving for increased economization. The machine has adopted the direct-drive system utilizing a compact-sized AC servomotor to drive the machine head. It has also adopted an encoder control system which drives the stepping motor with a minimum electrical power according to the weight of the material and stitch length for the material-feeding X-Y drive. With these two systems, the average power consumption of the machine is reduced by 30% during operation and 45% during standby as compared with our conventional model (AMS-224C) which does not incorporate the encoder control system.
    *The graph provides a comparison between the AMS-224EN and AMS-224C when sewing shape tacking (approximately 1,000 stitches) of the upper parts of right and left shoes under the continuous sewing mode.

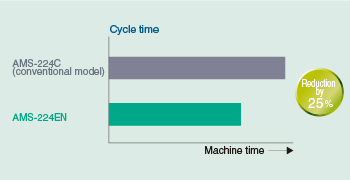

  • Higher productivity

    • The machine achieves the highest sewing speed of 2,500sti/min among those with a similar sewing area. The maximum sewing speed is reached by the 2nd stitch from the beginning of sewing. The machine remains at the maximum sewing speed until just before the end of sewing and decelerates instantaneously.
    • JUKI's unique stepping-motor controlled thread trimming mechanism is adopted to enable speedy and consistent thread trimming performance, substantially reducing the total cycle time.
    • The machine demonstrates enhanced responsiveness due to the adoption of a main-shaft direct-drive system.

  • Sewing quality leap forward

    The position of the feed can be checked during sewing by means of the encoder-controlled X-Y drive stepping motor. This remarkably improves accuracy of the feed. As a result, deformation of a sewing pattern which is likely to occur when sewing at a high speed or sewing a heavy-weight material is significantly reduced.

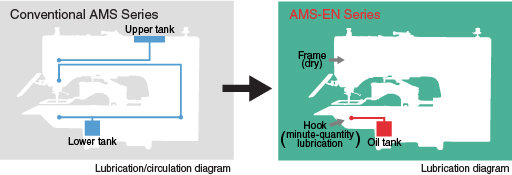

  • Semi-dry head

    The frame (needle bar unit and thread take-up unit) is lubricated with grease, and the hook is fed with a minute quantity of oil from the oil tank.
    JUKI’s advanced dry technology, which is utilized in a number of our sewing machine models, protects your products from being stained with oil.

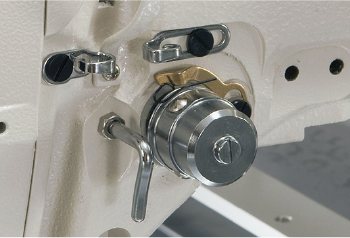

  • Active tension

    Market-proven active tension has been introduced to the needle thread tension controller. With the active tension, pinpoint changes in the needle thread tension during sewing are enabled. The needle thread tension, therefore, can be set in conjunction with the material thickness and can be corrected according to the direction of sewing on a stitch-by-stitch basis through the operation panel. Since the needle thread tension is reproducible, supporting a broader range of sewing conditions, the time required for setup changing upon process changeover can be reduced.

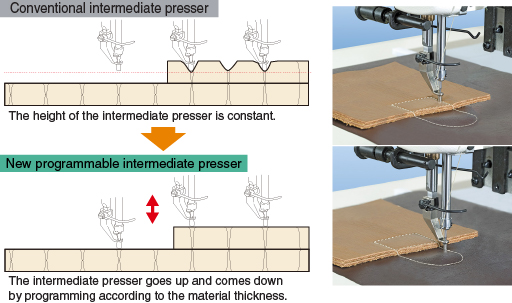

  • Programmable intermediate presser

    With the programmable intermediate presser, the height of the lower dead point of the intermediate presser can be set according to the material thickness, thereby not only preventing troubles in sewing such as stitch skipping and thread breakage, but also protecting the sewing product from being damaged by the presser. The height setting can be changed with ease even during sewing. The machine finishes beautiful uniform seams free from stitch skipping even on multiple parts of the material by the ideal combination of the active tension and programmable intermediate presser.

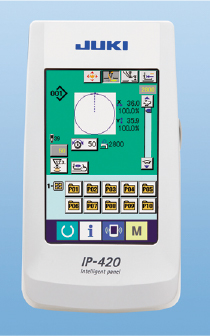

  • The large-sized liquid crystal touch panel, which has been developed to ensure ease of operation, dramatically increases efficiency in edit workIP-420

    The IP-420 touch panel offers market-proven ease of operation. It is provided with a wide screen and programmable functions. Data can be input/edited while visually checking the needle movement.
    The color LCD unit displays sewing data such as stitch shape, needle thread tension, enlargement/reduction ratio, sewing speed and the number of stitches at a glance. The IP-420 is provided as standard with 14 different display languages.

    • Key-lock customization function
      The key-lock state can be set as desired. It is therefore possible to hide items which should not be handled by the operators.
    • Simplified operation mode
      Simplification of set items and screen transition of the IP-420 increases ease of use and helps reduce operator fatigue.

  • The memory storage capability of the main body of the sewing machine has been dramatically enhanced

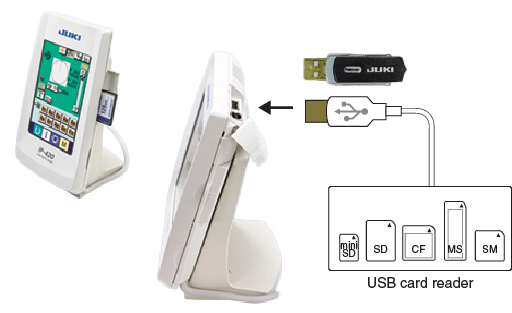

    Now the USB-ready main body of the sewing machine uses many different kinds of media

    Sewing data created with the IP-420 can be stored in the memory of the main body of the sewing machine. The memory storage capacity is 500,000 stitches and 999 patterns (max. 50,000 stitches per pattern) at the maximum. In addition to the CompactFlash 33 card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (FD (floppy disks), SM (SmartMedia), CF (CompactFlash), SD (Secure Digital Card) etc.) by means of a USB thumb device and a card reader. The maximum number of stitches that can be stored in the memory for each medium is approximately 50,000,000.

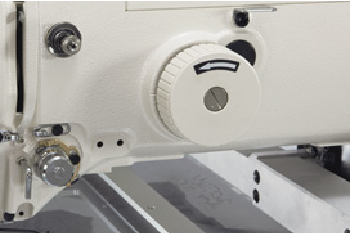

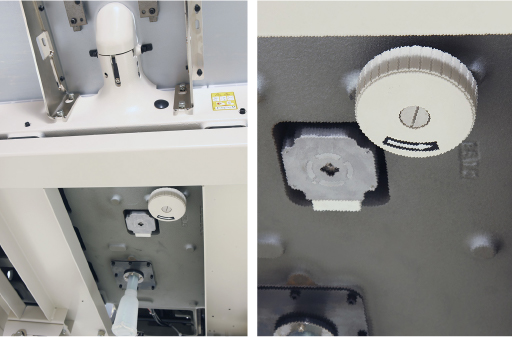

  • Hand pulley

    With the hand pulley which is laid out on the machine arm, not only the height of the needle bar or intermediate presser but also the needle entry point at the time of data programming can be adjusted with ease

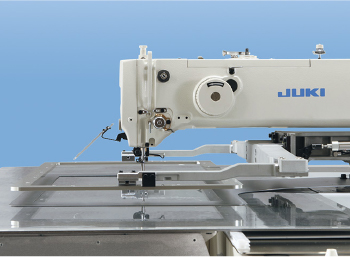

  • Feeding frame

    The feeding frame lift is 30mm at the maximum. This enables easy setting of a heavy-weight material on the machine.

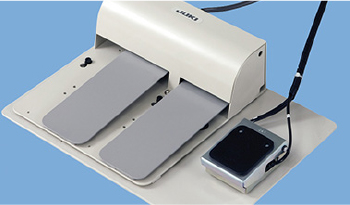

  • PK 2-pedal unit
    (with a mechanical valve pedal)

    The mechanical valve goes up and comes down corresponding to the depressed depth of the pedal. This enables easy positioning of a part to be sewn.

  • Hook driving shaft pulley

    A pulley is also provided on the lower part of the machine. This enables easy adjustment of the hook.

Specification

Model name AMS-224EN-HS4530 AMS-224EN-GB4530 AMS-224EN-HS6030 AMS-224EN-GB6030
Application Medium-to heavy-weight Extra heavy-weight Medium-to heavy-weight Extra heavy-weight
Feeding frame type Monolithic feeding frame:(Pneumatic work clamp) Double-stepped stroke feeding frame:(Pneumatioc work clamp) Monolithic feeding frame:(Pneumatic work clamp) Double-stepped stroke feeding frame:(Pneumatioc work clamp)
Max. sewing speed 2,500sti/min* (stitch length 3mm or less)
Sewing area 450mm (X) ×300mm (Y) 600mm (X) ×300mm (Y)
Settable stitch length 0.1~12.7mm (0.05mm step)
Needle bar stroke 41.2mm
Lift of the feeding frame Max. 30mm
Lift / Stroke of intermediate presser Lifting amount : 20mm / Stroke : Standard 4mm (0~10mm)
Variable lower position of the intermediate presser Standard 0~3.5mm (max. 0~7.0mm)
Change in height of the intermediate presser Stepless control by programming (controlled by a stepping motor)
Needle thread tension Active tension (electronic thread tension control mechanism)
Needle thread breakage detecting device Provided as standard
Needle thread clamp Stepping-motor driven clamping on the underside of the throat plate
Prevention of the slip-off of thread at the beginning of sewing Prevented by the needle thread clamp and active tension
Thread trimming device High-speed thread trimming mechanism driven by a stepping motor
Needle (at the time of delivery) DP×17 (#18) (135×17 Nm110) DP×17 (#23) (135×17 Nm260) DP×17 (#18) (135×17 Nm110) DP×17 (#23) (135×17 Nm260)
Thread #50~#2 #20~#2 #50~#2 #20~#2
Hook Double-capacity shuttle hook
Storage of pattern data in the memory Main-body memory: Max. 500,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
External media: Max. 50,000,000 stitches, 999 patterns (max. 50,000 stitches / pattern)
Enlarging / Reducing facility Pattern can be enlarged / reduced independently in the X and Y directions
1%~400% (0.1% step)
Enlarging / Reducing system Pattern enlargement / reduction can be done by increasing / decreasing either stitch length or the number of stitches
(At the time of pattern selection, only the stitch length can be increased/decreased.)
Bobbin thread counter Product counter Up / Down system (0~9,999)
Lubrication The frame is lubricated with grease / The hook and hook driving shaft gear box are lubricated from a tank
Lubricating oil Hook: JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Sewing machine motor  Compact AC servomotor (direct-drive system)
Power requirement Power consumption Single-phase, 3-phase 200~240V / 550VA
Compressed air / Air consumption 0.5~0.55MPa (Max. 0.55MPa)  /  1.8dm³ / min (ANR)
Total weight  401kg 410kg
Dimensions 1,703mm (W) ×1,370mm (D) ×1,200mm (H)
(without thread stand)
1,923mm (W) ×1,370mm (D) ×1,200mm (H)
(without thread stand)

*"sti/min" stands for "Stitches per Minute."

• For CompactFlash™, please use genuine JUKI products.
• "CompactFlash™"is a registered trademark of SanDisk Corporation, U.S.A.
• Microsoft Windows is a trademark of Microsoft Corporation, U.S.A., registered in the U.S.A. and other countries.
• Other company names and product names/brand names are trademarks or registered trademarks of the respective companies.

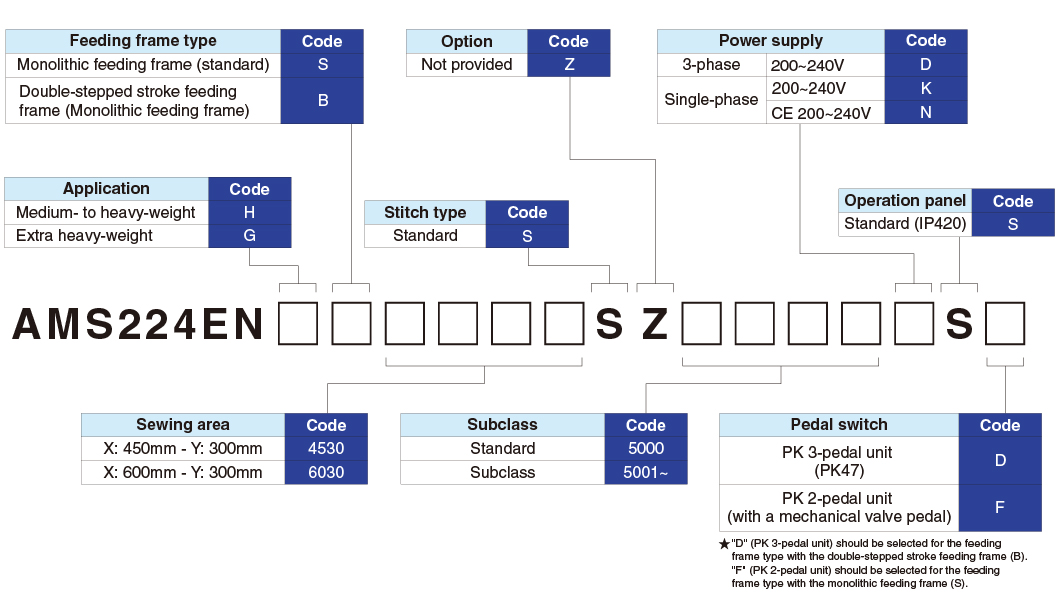

When you place orders

Gauge

AMS-224EN-HS4530
AMS-224EN-HB4530
AMS-224EN-GS4530
AMS-224EN-GB4530
AMS-224EN-HS6030
AMS-224EN-HB6030
AMS-224EN-GS6030
AMS-224EN-GB6030

  Guage NEEDLE HOLE GUIDE INNER HOOK PRESSER INNER HOOK INTERMEDIATE PRESSER SECOND THREAD TENSION ASM. THREAD TRIMMER LEVER (SMALL) ASM. NEEDLE BAR THREAD GUIDE
Sewing spec. Needle size used Figure
Thread count P/N Remarks P/N Remarks P/N P/N Remarks P/N P/N P/N Remarks
Light/ medium weight materials
#11~#14
#60~#30 B242621000A Φ1.6 14103352 Needle guard 1.3mm 40014964 40023632 Φ2.2,
H type
40010508 B24152800A0 B1405210000 2-hole
Knitwear/ foundation
#9~#11
  B242621000C Φ1.6, OP 14103352 Needle guard 1.3mm 40014964 B1601210D0E Φ1.6,
OP
40010508 B24152800A0 B1405210000 2-hole
Medium weight/ heavy weight materials
#14~#18
#30~#20 B242621000B Φ2.0, H type 14103352 Needle guard 1.3mm 40061991 40023632 Φ2.0,
H type
40029411 B24152800A0 40026884 1-hole
B1601210D0FA Φ2.2,
OP
Heavy weight materials
#18~#21
#20~#8 B242621000D Φ2.4,OP 14103352 Needle guard 1.3mm 40061991 40023632 Φ2.0,
H type
40029411 B24152800A0 40026884 1-hole
B242621000F Φ3.0, G type 14103659 Needle guard 1.7mm B1601210D0BA Φ2.7,
G type
Extra heavy weight materials
#22~#25
#8~#2 B242621000G Φ3.0, With counter bore, OP 14103659 Needle guard 1.7mm 40061991 B1601210D0BA Φ2.7,
G type
40029411 B24152800A0 40026884 1-hole
B242621000F Φ3.0, G type B1601210D0CA Φ3.5,
OP
Heavy weight materials
Counter measure against stitch skipping
  B242621000H Φ3.0, Eccentric, OP B1817210DAD Needle guard 1.9mm 40061991 B1601210D0CA Φ3.5,
OP
40029411 B24152800A0 40026884 1-hole

* Standard needle (DP×17#18), extra heavy ewight (DP×17#23)
