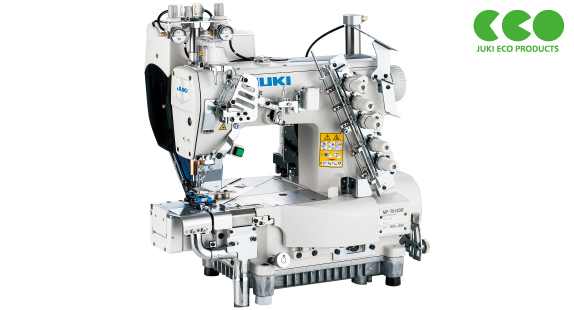

Semi-dry head, Cylinder-bed, Bottom Coverstitch Machine with digital type top feed/For hemming (with left hand fabric trimmer)
This sewing machine is best-suited to hemming of T-shirts and polo shirts.
Product overview
Product features
The machine is provided with the digital type top feed mechanism
This mechanism prevents problems, such as twist of fabric, uneven material feed, skew of grain and stitch gathering on multi-layered sections of material, which are likely to occur when sewing elastic materials, thereby achieving stable seam quality.
Digital setting of the top feed mechanism
Digital setting of the top feed mechanism can be carried out with jog dial with control panel.
(Top feed amount can be adjusted and stored directly in memory.)
Reduction in setup time
Digital setting of the top feed mechanism enables easy adjustment of sewing even when the product to be sewn is changed, thereby reducing the setup time.
Basic performance
Flat and soft seams (H24)
The sewing machine produces seams with no semi-cylindrical swells by performing sewing while making the feeding lengths of the right and left needle threads equal.
Specification
| Model name | MF-7912DRH24 | MF-7913DRH24 | ||
|---|---|---|---|---|
| Stitch type | Semi-dry head, 2-needle bottom covering stitch | Semi-dry head, 3-needle bottom covering stitch | ||
| Max. sewing speed | 5,000 sti/min* | |||
| Feed mechanism | Digital type top feed | |||
| stitch length | 0.9mm~3.6mm | |||
| Presser-bar air pressure change-over switch | Push button method | |||
| Needle | UY128GAS #9S~#12S (#10S) | |||
| Lift of the presser foot | 5mm~8mm | |||
| Lubricating oil | JUKI Machine Oil 18 (equivalent to ISO VG18) | |||
| Power requirement / Power consumption | Single-phase100V, 200V·3-phase200V/500VA | |||
*"sti/min" stands for “stitches per minute”

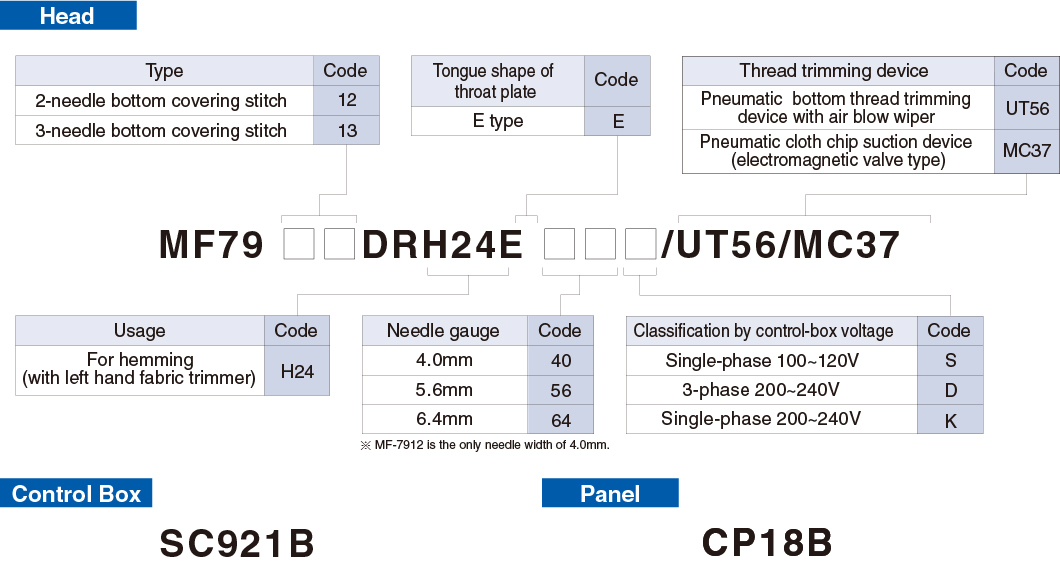

When you place orders
Gauge
MF-7912DRH24/UT
MF-7913DRH24/UT
| Guage | NEEDLE CLAMP | NEEDLE | THROAT PLATE | PRESSER FOOT | MAIN FEED DOG | DIFFERENTIAL FEED DOG | |
|---|---|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
 |
|
| Needle width | P/N | P/N | P/N | P/N | P/N | P/N | |
| inch | mm | ||||||
| 5/32 | 4.0 | 40179075 | MUY128S1000 | 40179067 | 40179071 | 40179064 | 40179065 |
| 7/32 | 5.6 | 40179076 | MUY128S1000 | 40179063 | 40179070 | 40179064 | 40179065 |
| 1/4 | 6.4 | 40179077 | MUY128S1000 | 40179066 | 40179070 | 40179064 | 40179065 |
