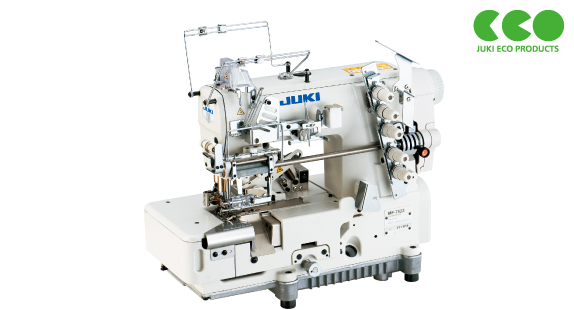

Flat-bed, Top & Bottom Coverstitch Machine

The MF-7500 Series is a newly developed coverstitch machine provided with lots of mechanisms for improving the seam quality.
It is provided with many different sewing-related mechanisms which contribute to improved seam quality, such as the new feed mechanism, and differential-feed micro-adjustment mechanism. In addition, the machine is provided as standard with a looper thread twining prevention mechanism for improved maintenance.

Product features

  • E11 For elastic lace attaching (with right hand fabric trimmer)

    This model is best suited for the sewing of elastic lace in shorts and underwear.

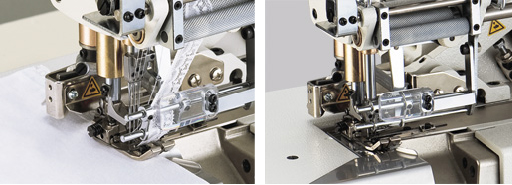

    The right hand fabric trimmer cuts the multi-layered part of a joined section with outstanding consistency. Beautifully finished products are achieved with the seams and material edges aligned. The right hand fabric trimmer mechanism's easy installation / removal of the entire unit facilitates the adjustment of related parts, such as the alignment of a looper.
    *The machine can also be used for collarette-attaching processes by removing the knife unit. (Replacement of the gauge and cover is required.)



  • JUKI's dry-head technology protects sewing products from being stained with oil

    With the excellent functions inherited from the MF-7500 Series, the MF-7500D is provided with a dry frame mechanism to eliminate the cause of oil stains. Stain removing work or re-sewing work is substantially reduced by protecting sewing products from being stained with oil, thereby improving the quality of finished products.

Basic performance

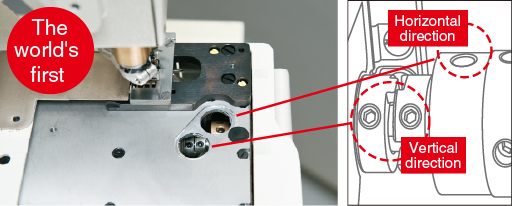

  • Thanks to the new feed mechanism, many different types of sewing are achieved

    The feed locus can be adjusted externally. The feed locus is now adjustable in terms of the vertical direction and horizontal direction, thereby improving responsiveness to sewing materials.

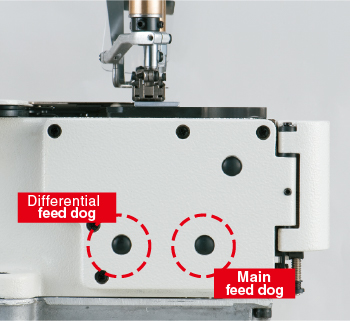

  • Feed longitudinal position adjustment mechanism

    The longitudinal position of the feed is adjustable. As a result, uneven material feed and puckering that are likely to occur when sewing products made of elastic materials such as foundations are reduced. This means that the machine promises improved responsiveness to elastic materials.

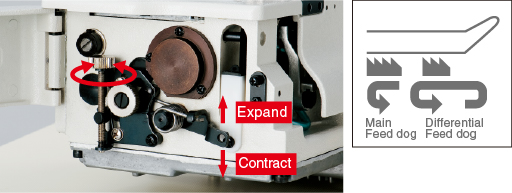

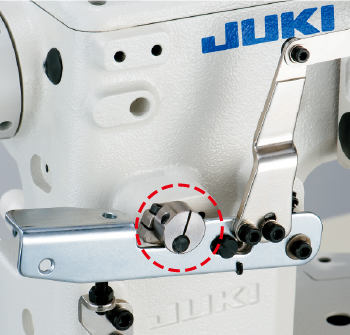

  • Differential-feed micro-adjustment mechanism

    It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed.

  • Micro-lifter mechanism

    Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage and damage of the material.

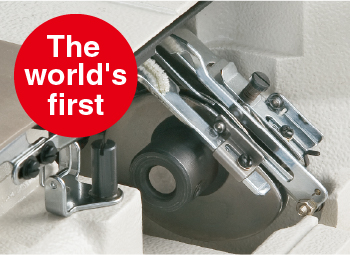

  • The looper thread twining prevention mechanism has been improved and is provided as standard for the sewing machine

    In the case of looper thread breakage, the looper thread twining prevention mechanism is activated to trim the looper thread before the thread twines on the looper thread cam. In this way, the looper thread twining prevention mechanism prevents the looper thread from twining on the looper thread cam. In addition, the looper thread cam, which has been incorporated in the sewing machine, has been changed so that it is mounted outside of the sewing machine. The externally-mounted looper thread cam promises improved maintainability.

  • Commercially-available gauge components are applicable with no additional work

    As a result of the commonality of components, commercially-available components (presser foot, throat plate and needle clamp) are now applicable and easily obtainable.

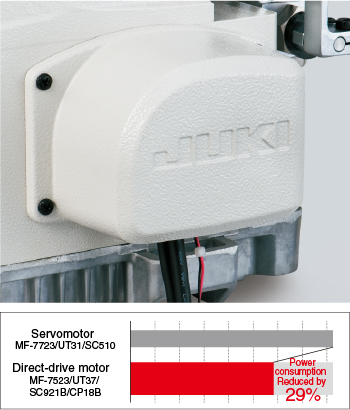

  • All of the sewing machines with a thread trimmer are provided with a direct-drive motor

    The direct-drive motor system has been adopted by all of the sewing machines with a thread trimmer. As a result, the sewing machine starts up swiftly and promises increased stop accuracy, thereby demonstrating improved responsiveness. In addition, the machine is no longer provided with a V-belt. This means that the adoption of the direct-drive motor is also effective in the elimination of belt shavings. Power is directly transmitted from the motor to the sewing machine, thereby contributing to reduced power consumption. (This sewing machine reduces power consumption by 29% as compared with the conventional models.)

Specification

Model name MF-7500 series MF-7500D series
Stitch type 2-needle/3-needle/4-needle top and bottom covering stitch
Needle UY128GAS (#10S) #9S~#12S
Lift of the presser foot 5mm (with top and bottom covering stitch),
8mm (with bottom covering stitch)
Stitch pitch adjustment By dial
Differential feed adjustment By micro-adjustment mechanism
Lubrication Automatiac Automatic
(frame: no lubrication)
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Feed dog inclination adjustment Provided as standard
Micro-lifter Provided as standard
Needle bar stroke converting function Provided as standard: 31mm: at the time of delivery /
When sewing a heavy-weight material: 33mm
Silicon oil tank for needle tip and needle thread Provided as standard
Cartridge oil filter Provided as standard
Power requirement Single-phase 100~120V / 200~240V,
3-phase 200~240V (with automatic thread trimmer)
Power consumption 500VA (with automatic thread trimmer)



Weight of the machine head E11 46kg (without device)

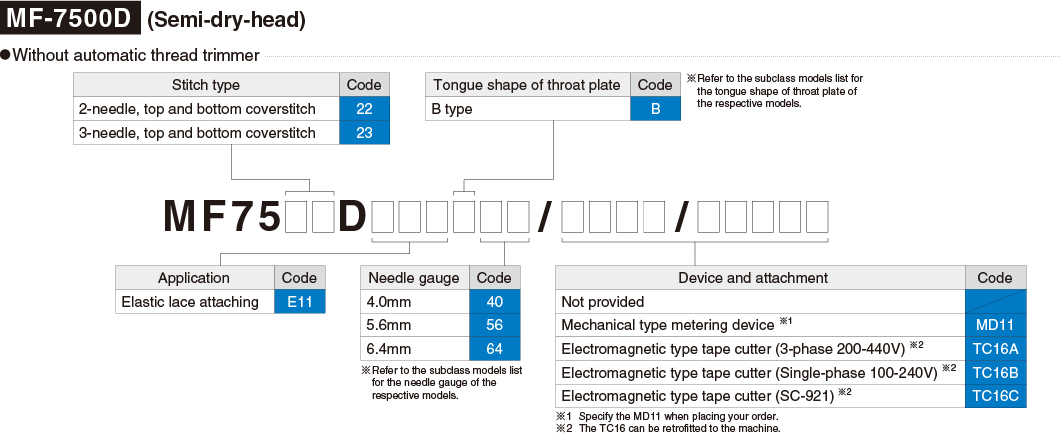

When you place orders

Subclass machine list

Gauge

MF-7522-E11

Guage NEEDLE CLAMP NEEDLE THROAT PLATE PRESSER FOOT ASM. MAIN FEED DOG DIFFERENTIAL FEED DOG
Figure
Needle width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
inch mm
1/8 3.2 13350004 FOR MF-7522-E10-B32 MUY128S1000 - 40058580 FOR MF-7522-E10-B32 40058591 FOR MF-7522-E10-B32 40079714 FOR MF-7522-E10-B32 40058582 FOR MF-7522-E10-B32
70003617 FOR MF-7522-E10-B32*OP
5/32 4.0 13350103 FOR MF-7522-E10-B40 MUY128S1000 - 13356001 FOR MF-7522-E10-B40 40018288 FOR MF-7522-E10-B40 40079715 FOR MF-7522-E10-B40 13358106 FOR MF-7522-E10-B40
70003619 FOR MF-7522-E10-B40*OP

MF-7523-E11

Guage NEEDLE CLAMP NEEDLE THROAT PLATE PRESSER FOOT ASM. MAIN FEED DOG DIFFERENTIAL FEED DOG
Figure
Needle width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
inch mm
7/32 5.6 13350301 FOR MF-7523-E10-B56 MUY128S1000 - 13356209 FOR MF-7523-E10-B56 40099964 FOR MF-7523-E10-B56 40079716 - 13358205 -
70003602 FOR MF-7523-E10-B56*OP
1/4 6.4 13350400 FOR MF-7523-E10-B64 MUY128S1000 - 13356308 FOR MF-7523-E10-B64 40018289 FOR MF-7523-E10-B64 40079716 - 13358205 -
70003621 FOR MF-7523-E10-B64*OP

MF-7522D-E11

Guage NEEDLE CLAMP NEEDLE THROAT PLATE PRESSER FOOT ASM. MAIN FEED DOG DIFFERENTIAL FEED DOG
Figure
Needle width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
inch mm
5/32 4.0 13350103 FOR B40 MUY128S1000 FOR B32, B40 40058706 FOR B40 40090196 FOR B40 13354204 FOR B32, B40, B48 13358304 FOR B32, B40, B48

MF-7523D-E11

Guage NEEDLE CLAMP NEEDLE THROAT PLATE PRESSER FOOT ASM. MAIN FEED DOG DIFFERENTIAL FEED DOG
Figure
Needle width P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks P/N Remarks
inch mm
7/32 5.6 13350301 FOR B56 MUY128S1000 FOR B48, B56, B64 40058033 FOR B56 40082974 FOR B56, B64 13353701 FOR B56, B64 13357603 FOR B56, B64
1/4 6.4 13350400 FOR B64 MUY128S1000 FOR B48, B56, B64 40040513 FOR B64 40082974 FOR B56, B64 13353701 FOR B56, B64 13357603 FOR B56, B64
