Pattern Seamer
Sewing area 280mm(X) ×500mm(Y)

Your Ingenuity creates opportunities for Automation.
The machine head adopts the oilfree lubrication technology with supporting various sewing and materials.

Product overview

Product features

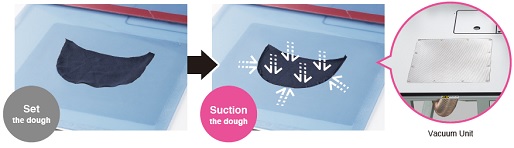

  • Fabric Vacuum Function

    Easy to set the sewing materials since Vacuum device work under the table. It is help to set softy/light fabric.

  • Patterns are identified by means of RFID/Barcode reader to enable automatic reading of sewing data

    Sewing patterns are automatically identified by means of RFID/ Barcode reader to automatically call up the relevant sewing program, thereby starting sewing quickly.
    RFID (radio frequency identification)
    It is the technology to read and write data saved on IC chips through wireless non-contact transfer of radio frequency waves and is used to identify and manage products.

  • Operation panel

    The sewing pattern data format are supports DXF, AI, PLT, and DST. Sewing pattern data in these formats are widely used in many sewing plants. As a result, the operation panel is able to use the customers' existing sewing pattern data immediately. As many as 999 sewing patterns can be saved on the large-capacity memory of the operation panel. (Editing software is included with the accessory.)

Basic performance

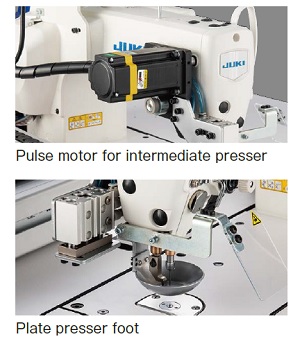

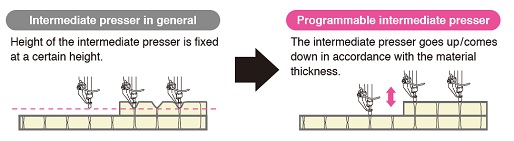

  • Intelligent Medium-Presser Foot

    It is possible to change the intermediate presser height at its lower dead point steplessly during sewing. This feature is particularly effective when sewing multi-layered portions of material. Since the material is stably held by the intermediate presser, sewing troubles such as stitch skipping and thread breakage are prevented.

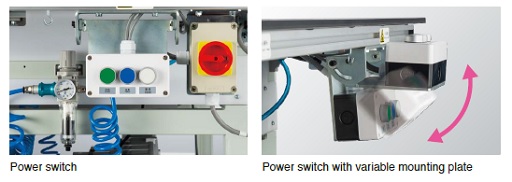

  • Power switch

    The power switch operates up and down, so the operator It can be adjusted to a position where it is easy to work. Reduces operator fatigue when sewing for long periods of time.

Specification

Model name PS-800SB-2850ZKZV
PS-800SB-2850ZKWV
PS-800SB-2850ZKZ
PS-800SB-2850ZKW
Sewing area 280mm × 500mm
Max. sewing speed 3,500 sti/min*
Lubrication Semi-dry
Fabric Vacuum
Function
Standard No
(OP device can be retrofitted)
Hook Full-rotary standard-capacity hook
Lift / Stroke of
intermediate presser
Lifting amount: 9 mm / Stroke: Standard 4 mm
Thread trimmer Double blades drive rotary knife type thread trimmer
Template recogniser RFID: 2850DKZ
Barcode: 2850DKW
RFID: 2850ZKZ
Barcode: 2850ZKW
JaNets device Retrofittable
Dimensions 1,060mm (W) × 1,330mm (L) × 1,250mm (H)

*sti/min is the abbreviation for “stitches per minute”

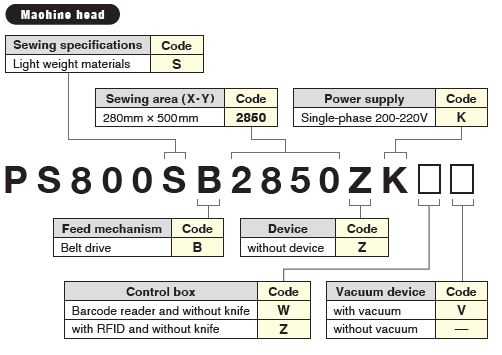

When you place orders
