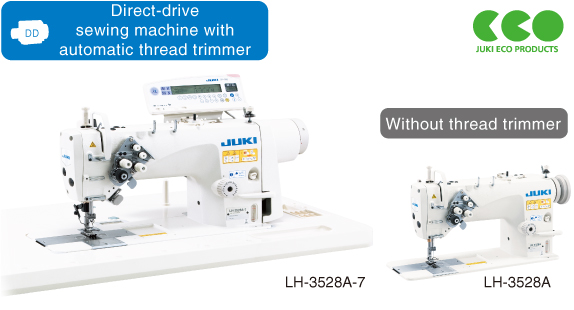

Semi-dry head, 2-needle Lockstitch Machine
The LH-3500A Series has made further progress. This is the cutting-edge model 2-needle sewing machine which comes with substantially enhanced mechanisms such as the direct-drive mechanism, semi-dry head, new thread tension control mechanism and improved oiling system.
Product overview
Product features
Adoption of the direct-drive mechanism enhances energy conservation and workability, and increases the needle's material penetrating force
A semi-dry head is now installed in all of the models of the LH-3500A SeriesONLY JUKI
All models of the LH-3500A Series are provided with a semi-dry head to eliminate staining with oil from the frame (the needle bar part).
The feed method can be easily changed over
The location of the oil tank has been changed to the inside of the sewing machine through our re-investigation of the lubricating method. As a result, space is secured under the bed surface to facilitate changeover of the feed method between the "needle feed" and "bottom feed" and changeover of the feed timing (re-placement of the timing belt).
Changeover between the needle feed and bottom feed
For the process of sewing light-weight materials or the like, puckering has to be prevented. In this case, the feed method can be changed over to the bottom feed through an easy adjustment and change of the gauge. In comparison with the needle feed, the bottom feed works to prevent puckering and enables sewing with a lower thread tension.
Many different models are prepared according to the type of materials
From a wide variety of models, the best-suited model can be chosen according to your sewing items, ranging from light- to heavy-weight materials.
Production support function
The operation panels CP-18A and CP-180A are provided with a production support function
The production support function actually consists of three different functions (six different modes), which are the output control function, operation measuring function and bobbin counter function. Each with its own production support effect. An appropriate function (mode) can be selected as required.
The parameter setting can be done on the panel located on the top of the sewing machine, thereby helping reduce operator fatigue during setup changing.
Basic performance
The best-suited thread tension is achieved according to the sewing specificationsUnique to JUKI
Two different types of thread tension controllers have been developed
The needle tension controller comes in two different mechanisms according to the type of sewing machine. For the A and F types, seam quality free from puckering and irregular stitches is promised. For the S and G types, the sewing range has been broadened to produce well-tensed seams even when thick thread is used.
Wire type and round-hole type needle bar thread guide
Two different kinds of needle bar thread guides (needle clamps), the wire type and round-hole type, have been developed according to the type of sewing machine. The wire-type needle bar thread guide has been adopted for the A and F types which require the sewing capability to sew light-weight materials and foundations without puckering or irregular stitches. The round-hole type needle bar thread guide has been adopted for the S and G types which sew materials requiring well-tensed seams. In addition, the G type is provided as standard with the presser foot with guide which is effective for the topstitching process.
Highly reliable thread-trimming mechanism
Our direct-acting thread trimmer mechanism, which spreads thread without fail, has been further improved. The thread trimmer trims the needle thread and bobbin thread without fail even when thick thread is used. In addition, the thread trimmer's bobbin thread retaining force has been increased.
Material-friendly micro-lifter mechanism
The presser foot can be lifted by a minute amount by adjusting the eccentric pin located in the presser lifter lever section.
When sewing shaggy and elastic fabrics, the load applied to the material is reduced by slightly lifting the presser foot. Materials are handled more easily and are finished without sacrificing the inherent texture of the material.Two selectable new-method oiling mechanismsUnique to JUKI
ECO-oli method (circulation type)
The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank. This method saves the effort of oiling and reduces oil consumption.
Clean oil method
The oil dropped from the hook and its surrounding sections into the under-cover is not returned to the oil tank, but only clean oil is supplied to the hook at all times.
★The oiling method can be changed over as desired.
Specification
Model name | LH-3528A-A | LH-3528A-F | LH-3528A-S | LH-3528A-G | ||
---|---|---|---|---|---|---|
Application | Light-weight | Foundation | Medium-weight | Jeans and heavy-weight |
||
Organized split needle bar mechanism |
Not provided | |||||
Hook | Vertical axis regular hook | |||||
Lubrication | Semi-dry / hook section: minute-quantity lubrication (tank system) | |||||
Max. sewing speed | 3,000sti/min* | |||||
Distance from needle to machine arm |
120mm (H) × 266mm (W) × 87mm (height of jaw part) | |||||
Feed system | Changeover between the needle feed and bottom feed | |||||
Max. stitch length | 5mm | 4mm | 5mm | |||
Needle bar stroke | 33.4mm | |||||
Thread take-up | Slide type | |||||
Tensioner | Independent right and left needles type (lockstitch type) | Standard type | ||||
Thread winder | Built-in the machine head | |||||
Lift of the presser foot | 7mm (by hand), 13mm (by knee) | |||||
Oiling method | Eco-oil method (circulation type), Clean oil method | |||||
Tank capacity | 280cm³ | |||||
Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |||||
Needle | DP × 5 (#9) #9~#16 |
DP × 5 (#10) #9~#16 |
DP × 5 (#14) #9~#16 |
DP × 5 (#21) #16~#23 |
||
Outside dimensions of package (mm) |
LH-3528A: 718mm (H) × 341mm (W) × 744mm (L) LH-3528A-7: 768mm (H) × 341mm (W) × 744mm (L) |
|||||
Machine head weight (including the package) |
LH-3528A: 48kg LH-3528A-7: 61kg (with AK: 63kg) LH-3528A-F-0B: 50kg (with AK: 63kg) |
*"sti/min" stands for "Stitches per Minute."
When you place orders
Gauge
LH-3528A-A
Guage | FEED DOG | FEED DOG_LOWER FEED | FEED DOG_LOWER FEED | NEEDLE CLAMP ASM. | PRESSER FOOT ASM. | PRESSER FOOT ASM._LOWER FEED | ||
---|---|---|---|---|---|---|---|---|
Figure | ||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | ||||||
A | 3/32 | 2.4 | 40033714 | - | - | 40035875 | 22637557 | - |
B | 1/8 | 3.2 | 40033715 | 23205107 | - | 40026027 | 22637656 | 10391852 |
C | 5/32 | 4.0 | 40033716 | - | - | 40026029 | 22637755 | - |
D | 3/16 | 4.8 | 40033718 | 23205305 | - | 10147858 | 22637854 | 10392058 |
E | 7/32 | 5.6 | - | - | - | 40026033 | - | - |
F | 1/4 | 6.4 | 40033720 | 23205503 | - | 10148054 | 22638050 | 10392256 |
G | 9/32 | 7.1 | 40033722 | - | - | 40026037 | 22638258 | - |
H | 5/16 | 7.9 | 40033723 | - | - | 10148252 | 22638357 | - |
K | 3/8 | 9.5 | 40033724 | - | - | 10148351 | 22638456 | - |
W | 7/16 | 11.1 | - | - | - | 40026043 | - | - |
L | 1/2 | 12.7 | 40033727 | 40062249 | 22848105 | 40026045 | 22638753 | 10392751 |
M | 5/8 | 15.9 | - | - | - | 40026047 | - | - |
N | 3/4 | 19.1 | 40033729 | 40052251 | 22848303 | 40026049 | 22638951 | 10393056 |
P | 7/8 | 22.2 | 40033731 | 40062252 | 22848402 | 40026051 | 22639157 | 22844450 |
Q | 1 | 25.4 | 40033732 | 40062253 | 22848501 | 10148955 | 22639256 | 33844559 |
R | 1-1/8 | 28.6 | 40033733 | - | - | 40026055 | 22639355 | - |
S | 1-1/4 | 31.8 | 40033734 | - | - | 40026057 | 22639454 | - |
T | 1-3/8 | 34.9 | - | - | - | 40026059 | - | - |
U | 1-1/2 | 38.1 | - | - | - | 40026061 | - | - |
Remarks | Wire type |
Guage | THROAT PLATE | THROAT PLATE FOR BINDING | THROAT PLATE_LOWER FEED | THROAT PLATE_LOWER FEED | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._RIGHT | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._FRONT | ||
---|---|---|---|---|---|---|---|---|---|---|
Figure | ||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | ||||||||
A | 3/32 | 2.4 | 22625008 | - | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
B | 1/8 | 3.2 | 22625107 | 22628002 | 22845200 | - | 22601058 | 22600555 | 40051633 | 40042874 |
C | 5/32 | 4.0 | 22625206 | 22628101 | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
D | 3/16 | 4.8 | 22625305 40095288 | 22628200 | 22845408 | - | 22601058 | 22600555 | 40051633 | 40042874 |
E | 7/32 | 5.6 | 22625404 | 22628309 | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
F | 1/4 | 6.4 | 22625503 40094772 | 22628408 | 22845606 | - | 22601058 | 22600555 | 40051633 | 40042874 |
G | 9/32 | 7.1 | 22625602 | 22628507 | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
H | 5/16 | 7.9 | 22625701 | 22628606 | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
K | 3/8 | 9.5 | 22625800 | - | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
W | 7/16 | 11.1 | 22625909 | - | - | - | 22601058 | 22600555 | 40051633 | 40042874 |
L | 1/2 | 12.7 | 22626006 | - | - | 40062254 | 22601157 | 22600654 | 40045729 | 40042874 |
M | 5/8 | 15.9 | 22626105 | - | - | - | 22601157 | 22600654 | 40045729 | 40042874 |
N | 3/4 | 19.1 | 22626204 | - | - | 40062256 | 22601157 | 22600654 | 40045729 | 40042874 |
P | 7/8 | 22.2 | 22626303 | - | - | 40062257 | 22601256 | 22600753 | 40045730 | 40042874 |
Q | 1 | 25.4 | 22626402 | - | - | 40062258 | 22601256 | 22600753 | 40045730 | 40042874 |
R | 1-1/8 | 28.6 | 22626501 | - | - | - | 22601256 | 22600753 | 40045730 | 40042874 |
S | 1-1/4 | 31.8 | 22626600 | - | - | - | 22601355 | 22600852 | 40045731 | 40042874 |
T | 1-3/8 | 34.9 | 22626709 | - | - | - | 22601355 | 22600852 | 40045731 | 40042874 |
U | 1-1/2 | 38.1 | 22626808 | - | - | - | 22601355 | 22600852 | 40045731 | 40042874 |
Remarks | Option |
LH-3528A-F
Guage | FEED DOG | FEED DOG | FEED DOG_LOWER FEED | FEED DOG_LOWER FEED | NEEDLE CLAMP ASM. | PRESSER FOOT ASM. | PRESSER FOOT ASM._LOWER FEED | SWIVEL GUIDE PRESSER ASM. | ||
---|---|---|---|---|---|---|---|---|---|---|
Figure | ||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | ||||||||
A | 3/32 | 2.4 | - | - | - | - | 40035875 | - | - | - |
B | 1/8 | 3.2 | 40033563 | 40035883 | 23205107 | - | 40026027 | 22627152 | 10391852 | 22647051 |
C | 5/32 | 4.0 | - | - | - | - | 40026029 | - | - | - |
D | 3/16 | 4.8 | 40033564 | 40035884 | 23205305 | - | 10147858 | 22627350 | 10392058 | 22647150 40095293 |
E | 7/32 | 5.6 | 40033565 | 40035885 | - | - | 40026033 | 22627459 | - | 22647259 |
F | 1/4 | 6.4 | 40033566 | 40035886 | 23205503 | - | 10148054 | 22627559 | 10392256 | 22647358 40094776 |
G | 9/32 | 7.1 | 40033567 | 40035887 | - | - | 40026037 | 22627657 | - | 22647457 |
H | 5/16 | 7.9 | 40033568 | 40035888 | - | - | 10148252 | 22627756 | - | 22547556 |
K | 3/8 | 9.5 | - | - | - | - | 10148351 | - | - | - |
W | 7/16 | 11.1 | - | - | - | - | 40026043 | - | - | - |
L | 1/2 | 12.7 | - | - | 40062249 | 22848105 | 40026045 | - | 10392751 | - |
M | 5/8 | 15.9 | - | - | - | - | 40026047 | - | - | - |
N | 3/4 | 19.1 | - | - | 40052251 | 22848303 | 40026049 | - | 10393056 | - |
P | 7/8 | 22.2 | - | - | 40062252 | 22848402 | 40026051 | - | 22844450 | - |
Q | 1 | 25.4 | - | - | 40062253 | 22848501 | 10148955 | - | 33844559 | - |
R | 1-1/8 | 28.6 | - | - | - | - | 40026055 | - | - | - |
S | 1-1/4 | 31.8 | - | - | - | - | 40026057 | - | - | - |
T | 1-3/8 | 34.9 | - | - | - | - | 40026059 | - | - | - |
U | 1-1/2 | 38.1 | - | - | - | - | 40026061 | - | - | - |
Remarks | Option | Wire type | binding |
Guage | THROAT PLATE | THROAT PLATE FOR BINDING | THROAT PLATE_LOWER FEED | THROAT PLATE_LOWER FEED | SLIDE PLATE ASM._FRONT SLIDE PLATE ASM._FRONT | SLIDE PLATE ASM._FRONT | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._RIGHT | SLIDE PLATE ASM._LEFT | ||
---|---|---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | |||||||||
A | 3/32 | 2.4 | 22625008 | - | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
B | 1/8 | 3.2 | 22625107 | 22628002 | 22845200 | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
C | 5/32 | 4.0 | 22625206 | 22628101 | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
D | 3/16 | 4.8 | 22625305 40095288 |
22628200 | 22845408 | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
E | 7/32 | 5.6 | 22625404 | 22628309 | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
F | 1/4 | 6.4 | 22625503 40094772 |
22628408 | 22845606 | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
G | 9/32 | 7.1 | 22625602 | 22628507 | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
H | 5/16 | 7.9 | 22625701 | 22628606 | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
K | 3/8 | 9.5 | 22625800 | - | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
W | 7/16 | 11.1 | 22625909 | - | - | - | 40042874 | 23206709 | 22601058 | 22600555 | 40051633 |
L | 1/2 | 12.7 | 22626006 | - | - | 40062254 | 40042874 | 23206709 | 22601157 | 22600654 | 40045729 |
M | 5/8 | 15.9 | 22626105 | - | - | - | 40042874 | 23206709 | 22601157 | 22600654 | 40045729 |
N | 3/4 | 19.1 | 22626204 | - | - | 40062256 | 40042874 | 23206709 | 22601157 | 22600654 | 40045729 |
P | 7/8 | 22.2 | 22626303 | - | - | 40062257 | 40042874 | 23206709 | 22601256 | 22600753 | 40045730 |
Q | 1 | 25.4 | 22626402 | - | - | 40062258 | 40042874 | 23206709 | 22601256 | 22600753 | 40045730 |
R | 1-1/8 | 28.6 | 22626501 | - | - | - | 40042874 | 23206709 | 22601256 | 22600753 | 40045730 |
S | 1-1/4 | 31.8 | 22626600 | - | - | - | 40042874 | 23206709 | 22601355 | 22600852 | 40045731 |
T | 1-3/8 | 34.9 | 22626709 | - | - | - | 40042874 | 23206709 | 22601355 | 22600852 | 40045731 |
U | 1-1/2 | 38.1 | 22626808 | - | - | - | 40042874 | 23206709 | 22601355 | 22600852 | 40045731 |
Remarks | binding | Option |
LH-3528A-S
Guage | FEED DOG | FEED DOG | FEED DOG_LOWER FEED | FEED DOG_LOWER FEED | NEEDLE CLAMP ASM. | PRESSER FOOT ASM._TIP DIVIDED | PRESSER FOOT ASM._LOWER FEED | ||
---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | |||||||
A | 3/32 | 2.4 | - | - | - | - | 10147551 | - | - |
B | 1/8 | 3.2 | - | 40033563 | 23205107 | - | 10147650 | 40035896 | 10391852 |
C | 5/32 | 4.0 | 22630206 | 40025784 | - | - | 10147759 | 40035897 | - |
D | 3/16 | 4.8 | 22630404 | 40025785 | 23205305 | - | 10147858 | 22640353 | 10392058 |
E | 7/32 | 5.6 | 22630503 | 40025786 | - | - | 10147957 | 22640452 | - |
F | 1/4 | 6.4 | 26630602 | 40025787 | 23205503 | - | 10148054 | 22640551 | 10392256 |
G | 9/32 | 7.1 | 26630800 | 40025788 | - | - | 10148153 | 22640759 | - |
H | 5/16 | 7.9 | 26630909 | 40025789 | - | - | 10148252 | 22640858 | - |
K | 3/8 | 9.5 | 26631006 | 40025790 | - | - | 10148351 | 22640957 | - |
W | 7/16 | 11.1 | 26631105 | 40025791 | - | - | 10148450 | 22641054 | - |
L | 1/2 | 12.7 | 26631303 | 40025792 | 40062249 | 22848105 | 10148559 | 22641525 | 10392751 |
M | 5/8 | 15.9 | 26631402 | 40025793 | - | - | 10148658 | 22641351 | - |
N | 3/4 | 19.1 | 26631501 | 40025794 | 40052251 | 22848303 | 10148757 | 22641450 | 10393056 |
P | 7/8 | 22.2 | 26631709 | 40025795 | 40062252 | 22848402 | 10148856 | 22641658 | 22844450 |
Q | 1 | 25.4 | 26631808 | 40025796 | 40062253 | 22848501 | 10148955 | 22641757 | 33844559 |
R | 1-1/8 | 28.6 | 26631907 | 40025797 | - | - | 10149052 | 22641856 | - |
S | 1-1/4 | 31.8 | 26632004 | 40025798 | - | - | 10149151 | 22641955 | - |
T | 1-3/8 | 34.9 | 22622103 | 40025799 | - | - | 10149250 | 22642052 | - |
U | 1-1/2 | 38.1 | 26632202 | 40025800 | - | - | 10149359 | 22642151 | - |
Remarks | Option | Hole type |
Guage | THROAT PLATE | THROAT PLATE FOR BINDING | THROAT PLATE_LOWER FEED | THROAT PLATE_LOWER FEED | SLIDE PLATE ASM._FRONT | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._RIGHT | SLIDE PLATE ASM._LEFT | ||
---|---|---|---|---|---|---|---|---|---|---|
Figure | ||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | ||||||||
A | 3/32 | 2.4 | 22625008 | - | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
B | 1/8 | 3.2 | 22625107 | 22628002 | 22845200 | - | 40042874 | 22601058 | 22600555 | 40051633 |
C | 5/32 | 4.0 | 22625206 | 22628101 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
D | 3/16 | 4.8 | 22625305 40095288 |
22628200 | 22845408 | - | 40042874 | 22601058 | 22600555 | 40051633 |
E | 7/32 | 5.6 | 22625404 | 22628309 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
F | 1/4 | 6.4 | 22625503 40094772 |
22628408 | 22845606 | - | 40042874 | 22601058 | 22600555 | 40051633 |
G | 9/32 | 7.1 | 22625602 | 22628507 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
H | 5/16 | 7.9 | 22625701 | 22628606 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
K | 3/8 | 9.5 | 22625800 | - | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
W | 7/16 | 11.1 | 22625909 | - | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
L | 1/2 | 12.7 | 22626006 | - | - | 40062254 | 40042874 | 22601157 | 22600654 | 40045729 |
M | 5/8 | 15.9 | 22626105 | - | - | - | 40042874 | 22601157 | 22600654 | 40045729 |
N | 3/4 | 19.1 | 22626204 | - | - | 40062256 | 40042874 | 22601157 | 22600654 | 40045729 |
P | 7/8 | 22.2 | 22626303 | - | - | 40062257 | 40042874 | 22601256 | 22600753 | 40045730 |
Q | 1 | 25.4 | 22626402 | - | - | 40062258 | 40042874 | 22601256 | 22600753 | 40045730 |
R | 1-1/8 | 28.6 | 22626501 | - | - | - | 40042874 | 22601256 | 22600753 | 40045730 |
S | 1-1/4 | 31.8 | 22626600 | - | - | - | 40042874 | 22601355 | 22600852 | 40045731 |
T | 1-3/8 | 34.9 | 22626709 | - | - | - | 40042874 | 22601355 | 22600852 | 40045731 |
U | 1-1/2 | 38.1 | 22626808 | - | - | - | 40042874 | 22601355 | 22600852 | 40045731 |
Remarks | Option |
LH-3528A-G
Guage | FEED DOG | FEED DOG | FEED DOG_LOWER FEED | FEED DOG_LOWER FEED | NEEDLE CLAMP ASM. | PRESSER FOOT ASM._TIP DIVIDED | PRESSER FOOT ASM._LOWER FEED | SWIVEL GUIDE PRESSER ASM. | ||
---|---|---|---|---|---|---|---|---|---|---|
Figure | ||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | ||||||||
A | 3/32 | 2.4 | - | - | - | - | 10147551 | - | - | - |
B | 1/8 | 3.2 | B1613512B0H | - | 23205107 | - | 10147650 | 40035896 | 10391852 | - |
C | 5/32 | 4.0 | B1613512C0H | - | - | - | 10147759 | 40071909 | - | - |
D | 3/16 | 4.8 | B1613512D0H | 40025801 | 23205305 | - | 10147858 | 22816557 | 10392058 | 40095293 |
E | 7/32 | 5.6 | B1613512E0H | 40025802 | - | - | 10147957 | 22816656 | - | - |
F | 1/4 | 6.4 | B1613512F0H | 40025803 | 23205503 | - | 10148054 | 22816755 | 10392256 | 40094776 |
G | 9/32 | 7.1 | B1613512G0H | 40025804 | - | - | 10148153 | 22816854 | - | - |
H | 5/16 | 7.9 | B1613512H0H | 40045805 | - | - | 10148252 | 22816953 | - | - |
K | 3/8 | 9.5 | B1613512K0H | 40045806 | - | - | 10148351 | 22817050 | - | - |
W | 7/16 | 11.1 | 40075311 | 40045807 | - | - | 10148450 | 40033941 | - | - |
L | 1/2 | 12.7 | B1613512L0H | 40045808 | 40062249 | 22848105 | 10148559 | 22817159 | 10392751 | - |
M | 5/8 | 15.9 | B1613512M0H | 40045809 | - | - | 10148658 | 40033945 | - | - |
N | 3/4 | 19.1 | B1613512N0H | 40045810 | 40052251 | 22848303 | 10148757 | 40033947 | 10393056 | - |
P | 7/8 | 22.2 | B1613512P0H | 40045811 | 40062252 | 22848402 | 10148856 | 40033949 | 22844450 | - |
Q | 1 | 25.4 | B1613512Q0H | 40045812 | 40062253 | 22848501 | 10148955 | 40033951 | 33844559 | - |
R | 1-1/8 | 28.6 | B1613512R0H | 40045813 | - | - | 10149052 | 40033953 | - | - |
S | 1-1/4 | 31.8 | B1613512S0H | 40045814 | - | - | 10149151 | 40033955 | - | - |
T | 1-3/8 | 34.9 | B1613512T0H | 40045815 | - | - | 10149250 | 40033957 | - | - |
U | 1-1/2 | 38.1 | B1613512U0H | 40045816 | - | - | 10149359 | 40033959 | - | - |
Remarks | Option | Hole type |
Guage | THROAT PLATE | THROAT PLATE FOR BINDING | THROAT PLATE_LOWER FEED | THROAT PLATE_LOWER FEED | SLIDE PLATE ASM._FRONT | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._RIGHT | SLIDE PLATE ASM._LEFT | ||
---|---|---|---|---|---|---|---|---|---|---|
Figure | ||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | ||||||||
A | 3/32 | 2.4 | - | - | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
B | 1/8 | 3.2 | - | 22628002 | 22845200 | - | 40042874 | 22601058 | 22600555 | 40051633 |
C | 5/32 | 4.0 | - | 22628101 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
D | 3/16 | 4.8 | 40095288 | 22628200 | 22845408 | - | 40042874 | 22601058 | 22600555 | 40051633 |
E | 7/32 | 5.6 | - | 22628309 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
F | 1/4 | 6.4 | 40094772 | 22628408 | 22845606 | - | 40042874 | 22601058 | 22600555 | 40051633 |
G | 9/32 | 7.1 | - | 22628507 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
H | 5/16 | 7.9 | - | 22628606 | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
K | 3/8 | 9.5 | - | - | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
W | 7/16 | 11.1 | - | - | - | - | 40042874 | 22601058 | 22600555 | 40051633 |
L | 1/2 | 12.7 | - | - | - | 40062254 | 40042874 | 22601157 | 22600654 | 40045729 |
M | 5/8 | 15.9 | - | - | - | - | 40042874 | 22601157 | 22600654 | 40045729 |
N | 3/4 | 19.1 | - | - | - | 40062256 | 40042874 | 22601157 | 22600654 | 40045729 |
P | 7/8 | 22.2 | - | - | - | 40062257 | 40042874 | 22601256 | 22600753 | 40045730 |
Q | 1 | 25.4 | - | - | - | 40062258 | 40042874 | 22601256 | 22600753 | 40045730 |
R | 1-1/8 | 28.6 | - | - | - | - | 40042874 | 22601256 | 22600753 | 40045730 |
S | 1-1/4 | 31.8 | - | - | - | - | 40042874 | 22601355 | 22600852 | 40045731 |
T | 1-3/8 | 34.9 | - | - | - | - | 40042874 | 22601355 | 22600852 | 40045731 |
U | 1-1/2 | 38.1 | - | - | - | - | 40042874 | 22601355 | 22600852 | 40045731 |
Remarks | Option |
LH-3528A-7
Guage | FEED DOG | FEED DOG | FEED DOG | FEED DOG | NEEDLE CLAMP ASM. | NEEDLE CLAMP ASM. | PRESSER FOOT ASM._TIP DIVIDED | PRESSER FOOT ASM._TIP DIVIDED | SWIVEL GUIDE PRESSER ASM. | ||
---|---|---|---|---|---|---|---|---|---|---|---|
Figure | |||||||||||
Needle width | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | |||||||||
A | 3/32 | 2.4 | - | - | - | - | 40035875 | 10147551 | - | - | - |
B | 1/8 | 3.2 | 40061270 | 40035890 | 40053705 | 40053705 | 40026027 | 10147650 | 40035896 | 40035896 | - |
C | 5/32 | 4.0 | 40061271 | 40025817 | 40071911 | - | 40026029 | 10147759 | 40035897 | 40071909 | - |
D | 3/16 | 4.8 | 40061272 | 40025818 | 40035891 | 40025831 | 10147858 | 10147858 | 22640353 | 22816557 | 40095293 |
E | 7/32 | 5.6 | 40061273 | 40025819 | 40050009 | 40025832 | 40026033 | 10147959 | 22640452 | 22816656 | - |
F | 1/4 | 6.4 | 40061274 | 40026715 | 40035892 | 40025833 | 10148054 | 10148054 | 22640551 | 22816755 | 40094776 |
G | 9/32 | 7.1 | 40061275 | 40025820 | 40050010 | 40025834 | 40026037 | 10148153 | 22640759 | 22816854 | - |
H | 5/16 | 7.9 | 40061276 | 40025821 | 40050011 | 40025835 | - | 10148252 | 22640858 | 22816953 | - |
K | 3/8 | 9.5 | 40061277 | 40025822 | 40035893 | 40025836 | 10148351 | 10148351 | 22640957 | 22817050 | - |
W | 7/16 | 11.1 | - | 40025823 | - | 40025837 | 40026043 | 10148450 | 22641054 | 40033941 | - |
L | 1/2 | 12.7 | 40061278 | 40025824 | 40035894 | 40025838 | 40026045 | 10148559 | 22641252 | 22817159 | - |
M | 5/8 | 15.9 | 40061279 | 40025825 | 40071912 | 40025839 | 40026047 | 10148658 | 22641351 | 40033945 | - |
N | 3/4 | 19.1 | 40061280 | 40025826 | 40035895 | 40025840 | 40026049 | 10148757 | 22641450 | 40033947 | - |
P | 7/8 | 22.2 | 40061281 | 40025827 | 40071913 | 40025841 | 40026051 | 10148856 | 22641658 | 40033949 | - |
Q | 1 | 25.4 | 40061282 | 40025828 | 40071914 | 40025842 | - | 10148955 | 22641757 | 40033951 | - |
R | 1-1/8 | 28.6 | 40061283 | 40025829 | 40071915 | 40025843 | 40026055 | 10149052 | 22641856 | 40033953 | - |
S | 1-1/4 | 31.8 | 40061284 | 40025830 | 40071916 | 40025844 | 40026057 | 10149151 | 22641955 | 40033955 | - |
T | 1-3/8 | 34.9 | - | - | - | - | 40026059 | 10149250 | - | - | - |
U | 1-1/2 | 38.1 | - | - | - | - | 40026061 | 10149359 | - | - | - |
Remarks | Stitch spec S | Stitch spec S, Option | Stitch spec G | Stitch spec G, Option | Wire type, Stitch spec AF | Hole type, Stitch spec SG | Stitch spec S | Stitch spec G | Stitch spec G |
Guage | THROAT PLATE | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._RIGHT | SLIDE PLATE ASM._LEFT | SLIDE PLATE ASM._FRONT | ||
---|---|---|---|---|---|---|---|
Figure | |||||||
Needle width | P/N | P/N | P/N | P/N | P/N | ||
Code | inch | mm | |||||
A | 3/32 | 2.4 | - | - | - | - | - |
B | 1/8 | 3.2 | 40035881 | 40025247 | 40025245 | 40051633 | 40042880 |
C | 5/32 | 4.0 | 40025485 | 40025247 | 40025245 | 40051633 | 40042880 |
D | 3/16 | 4.8 | 40025490 40095289* |
40025247 | 40025245 | 40051633 | 40042880 |
E | 7/32 | 5.6 | 40025491 | 40025247 | 40025245 | 40051633 | 40042880 |
F | 1/4 | 6.4 | 40025492 40094773* |
40025247 | 40025245 | 40051633 | 40042880 |
G | 9/32 | 7.1 | 40025493 | 40025247 | 40025245 | 40051633 | 40042880 |
H | 5/16 | 7.9 | 40025494 | 40025247 | 40025245 | 40051633 | 40042880 |
K | 3/8 | 9.5 | 40025495 | 40025247 | 40025245 | 40051633 | 40042880 |
W | 7/16 | 11.1 | 40025496 | 40025247 | 40025245 | 40051633 | 40042880 |
L | 1/2 | 12.7 | 40025498 | 40025248 | 40025236 | 40045729 | 40042880 |
M | 5/8 | 15.9 | 40025499 | 40025248 | 40025236 | 40045729 | 40042880 |
N | 3/4 | 19.1 | 40025500 | 40025248 | 40025236 | 40045729 | 40042880 |
P | 7/8 | 22.2 | 40025502 | 40025249 | 40025239 | 40045730 | 40042880 |
Q | 1 | 25.4 | 40025503 | 40025249 | 40025239 | 40045730 | 40042880 |
R | 1-1/8 | 28.6 | 40025504 | 40025249 | 40025239 | 40045730 | 40042880 |
S | 1-1/4 | 31.8 | 40025505 | 40025250 | 40025240 | 40045731 | 40042880 |
T | 1-3/8 | 34.9 | - | - | - | - | - |
U | 1-1/2 | 38.1 | - | - | - | - | - |
Remarks | Stitch spec S,G (only *) | Spec common | Spec common | Spec common, Option | Spec common |
