• Voice guidance for assisting the operator (newly-developed LCD panel)

  This sewing machine is provided as standard with the voice guidance with clock function.





• Production support function

  The target number of products, work progress (current number of products produced, achievement rate) and the operating rate of the sewing machine are displayed on the control panel provided that the initial data have been properly set. These pieces of data that provide an indication for the operator will contribute to enhanced production support.

• USB port standard equipment

  Since the USB port is provided as standard for the operation panel and control box, sewing data can be managed and the relevant software can be upgraded with ease.

• Automatic turning OFF function of the operation panel backlight

  The backlight of the operation panel is automatically turned OFF when the operation panel is not operated for a certain period of time. (Setting time: 1- 20 minutes)

• LED hand light

  Illuminance of the LED hand light is adjustable in five levels. It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.



• Shorter-thread remaining type DDL-8000AB

  The shorter-thread remaining type model is the high-performance sewing machine provided with the thread clamp device which is used at the beginning of sewing and the shorter-thread remaining function which is used at the end of sewing.
  With these features, manual thread nipping work is no longer required.

  Double blades drive rotary knife type thread trimmer has been adopted. Since this thread trimmer blades intersect with each other just under the needle entry, an appropriate length of needle thread is ensured without being affected by the stitch length and the length of thread remaining on the material is 3.5 mm or less with consistency.



The DDL-8000A Series of sewing machines use two different lubricating methods

• MSemi-dry head type
  DDL-8000A-MS

  Max. sewing speed: 5,000sti/min*

  Sewing work free from oil stains by means of our leading-edge dry-head technology.

  With the advanced dry technology of enabling operation without being lubricated, a frame which does not need lubrication has been developed. It is provided with not only a high-speed sewing capability, but also a safety feature for preventing oil stains.



• SMinute-quantity lubrication type
  DDL-8000A-SH
  DDL-8000A-SJ

  Max. sewing speed: 4,500sti/min*

  The machine contributes to production improvement.

  The DDL-8000A-SH is the standard model developed with the emphasis on durability. It produces seams with consistency when run at speeds which falls in the range of the highest sewing speeds.

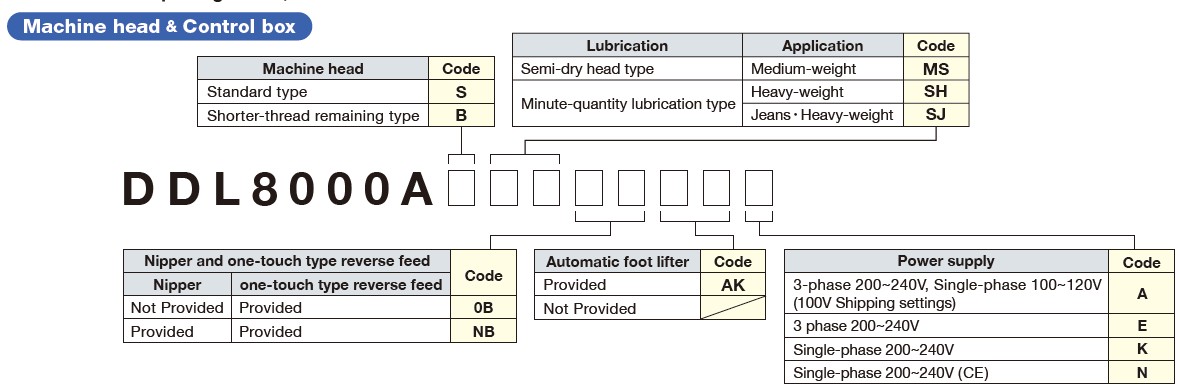

When you place orders

DDL-8000AS-MS
DDL-8000AB-MS

Guage	THROAT PLATE		PRESSER FOOT ASM.		FEED DOG		NEEDLE
Figure
Needle width	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
-	B1109552000	4sheets φ1.9_inch_general_China	B15240120BA	Width 1.9	40133950	4 teeth_pitch1.5_general_ China_Europe	MDB100B1100	#11_Organ_Japan
-	B1109012I0B	4sheets φ1.6_mm_Europe	-	-	23614506	3 teeth_pitch1.5_Japan	MDB100B1400	#14_Organ_general_China
-	11028008	3sheets φ1.9_mm_Japan	-	-	-	-	MC200500750	Nm75_Shumets_Europe

Guage	HOOK		NEEDLE BAR		BOBBIN CASE ASM.		BOBBIN
Figure
Needle width	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
-	11038650	Standard_general_ China_Japan	22886907	Return 1.8_Shankφ1.64_general_ China_Japan	11038759	-	22932909	Iron
-	11141355	Standard:C_Europe	22887004	Return 1.8_Shankφ2.02_Europe	-	-	-	-

Guage	PRESSER_SPRING		SLIDE_PLATE
Figure
Needle width	P/N	Remarks	P/N	Remarks
-	22907406	-	22901250	Iron_crape weave

DDL-8000AS-SH
DDL-8000AB-SH

Guage	THROAT PLATE		PRESSER FOOT ASM.		FEED DOG		NEEDLE
Figure
Needle width	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
-	40089605	4 sheets φ2.6_noscale_general_ Europe_Japan	D1524555EBL	Width 2.2_general_ Europe_Japan	11403003	4 teeth_general_ Europe_Japan	MDB100B2100	#21_Organ_general_ China_Japan
-	11062007	3 sheets φ2.6_no scale_China	40064839	Widrh 1.9_China	11062601	3 teeth_China	MC200501300	Nm130_Shumets_Europe

Guage	HOOK		NEEDLE BAR		BOBBIN CASE ASM.		BOBBIN
Figure
Needle width	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
-	11092251	Thick	40061767	Return 2.3_Shankφ2.04	40000264	-	22932909	Iron

Guage	PRESSER_SPRING		SLIDE_PLATE
Figure
Needle width	P/N	Remarks	P/N	Remarks
-	B1505552000A	-	22901250	Iron_crape weave

DDL-8000AS-SJ
DDL-8000AB-SJ

Guage	THROAT PLATE		PRESSER FOOT ASM.		FEED DOG		NEEDLE
Figure
Needle width	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
-	40089605	4 sheets φ2.6_no scale_ general_Europe_Japan	D1524555EBL	Width 2.2_general_ Europe_Japan	11403003	4 teeth_general_ Europe_Japan	MC200501300	Nm130_Shumets_Europe
-	11062007	3 sheets φ2.6_no scale_China	40064839	Widrh 1.9_China	11062601	3 teeth_China	MDP500B2100	#21Organ_general_ China_Japan

Guage	HOOK		NEEDLE BAR		BOBBIN CASE ASM.		BOBBIN
Figure
Needle width	P/N	Remarks	P/N	Remarks	P/N	Remarks	P/N	Remarks
-	40035058	For jeans	40061767	Return 2.3_Shankφ2.04	40000264	-	22932909	Iron

Guage	PRESSER_SPRING		SLIDE_PLATE
Figure
Needle width	P/N	Remarks	P/N	Remarks
-	B1505552000A	-	22901250	Iron_crape weave
