PS-800 Series Optional products

  • PS-800-13085 PS-800-12080 PS-800-8045
  • PS-800-3830
  • PS-800-2850

Target Models

  • PS-800-13085
  • PS-800-12080
  • PS-800-8045
  • PS-800-3830
  • PS-800-2850

①Active tension device

  • Quality improvement

Part Number:40228700

The active tension device can change the needle thread tension electrically. For the needle thread tension setting linked to the thickness of the cloth and the thread tension setting that changes according to the sewing direction, it is possible to input the tension value for each stitch from the panel.

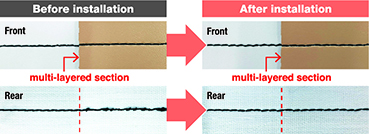

  • Before installation After installation
  • Active tension device

②BK-8 Bobbin changer device

  • Productivity improvement
  • Safety improvement

Part Number:40228699

The BK-8 bobbin changer device automatically changes pre-set bobbin cases, saving operators the trouble of changing bobbins and increasing the production efficiency.

●Optional parts for BK-8
Cassette : 40207417

  • BK-8 Bobbin changer device
  • BK-8 Bobbin changer device

③Bobbin Thread Remaining Detector

  • Quality improvement
  • Productivity improvement
  • Safety improvement

Part Number:40228698

The bobbin thread remaining detector detects the remaining amount of bobbin thread with a sensor and you can stop the sewing machine at the specified amount before the bobbin thread runs out. Furthermore, by using it in combination with a bobbin changer, you can change the bobbin automatically. Therefore, operators can work without worrying about the remaining amount of bobbin thread.

●A special bobbin case (Part number: 40237723) is required.

Bobbin Thread Remaining Detector

④Bird’s nest prevention device

  • Quality improvement

Part Number:40228695

The bird’s nest prevention device is installed on the machine head as an retrofit option to reduce the bird’s nest on the back of the material by drawing the needle thread at the beginning of sewing.

  • Bird’s nest prevention device
  • Bird’s nest prevention device

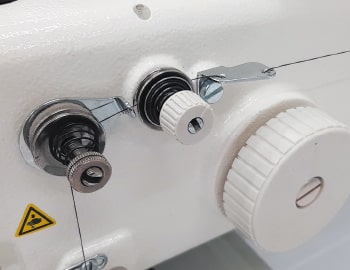

⑤Third thread tension unit

  • Quality improvement

Part Number:40228696

By turning ON/OFF the third thread tension unit, it is possible to add needle thread tension to the existing tension and change the tension in the sewing multi-layered part or the sewing direction.

Third thread tension unit

⑥Pen stick asm.

  • Quality improvement
  • Productivity improvement

Part Number:40228686

The pen stick asm. is a device that writes the sewing standard on the sewing material with a pen using the XY feeding mechanism. It can also be used for positioning in the next process.

Pen stick asm.

⑦Thick material kit

  • Quality improvement

Part Number:40228701

A thick material kit is a set of gauge parts for sewing thick materials. It is a set of intermediate presser D = 3.5, thread tension controller (assembly) (thick), needle hole guide D = 3.0, counter knife (thick), and hook (thick). Normally,this set is required when changing from an S spec sewing machine to an H spec one.

Thick material kit

⑧Template lift device

  • Productivity improvement
  • Safety improvement

Part Number:40239772

The template lift device is a device that lifts and supports the template from under the table so that the template can be easily inserted into the clamp.

●For PS-800-13085 and PS-800-12080, it is standard equipment.

Template lift device

⑨Plastic bobbin

  • Quality improvement
  • Productivity improvement

Part Number:

40244784(Blue)
40245125(Red)
40245137(Yellow)
For 2-fold hook
(For PS-800-13085,PS-800-12080,PS-800-8045,PS-800-3830)
40244783(Blue)
40245124(Red)
40245136(Yellow)
For standard hook
(For PS-800-2850)

Plastic bobbins are lighter than aluminum or steel,which reduces thread bending after intermittent stitching and thread trimming. In addition, the needle thread tension at the beginning of sewing is also reduced, making stitching more stable. Furthermore, there is almost no rubbing inside the bobbin case, so it is as durable as aluminum or iron. A total of 3 colors are available, which is useful when managing the yarn count.

Plastic bobbin

⑩Needle guard hook

  • Quality improvement
  • Productivity improvement

Part Number:40273423

The needle guard hook can prevent stitch skipping by maintaining a constant gap between the needle and the hook blade point with the needle guard. In addition, since the hook blade point is prevented from contacting the needle, it is expected to have the effect of extending the life of the hook blade point.

Needle guard hook

⑪Counter knife reinforcing plate for heavy weight

  • Quality improvement
  • Productivity improvement

Part Number:40269240

The counter knife reinforcing plate for heavy weight is a component that prevents thick threads from escaping between the moving knife and the counter knife due to elastic deformation of the counter knife when cutting thick threads. By preventing the elastic deformation of the counter knife, the moving knife and the counter knife are in close contact, enabling stable cutting of thick threads.

Counter knife reinforcing plate for heavy weight

⑫Fabric Vacuum Function

  • Quality improvement
  • Productivity improvement

Part Number:

  • 40286900(For PS-800-3830)
  • 40275338(For PS-800-2850)

The vacuum device is installed under the table, making it easy to set sewing materials. It especially helps set soft and light materials. By devising the shape of the template, the process of folding the edge of a pocket, etc. can be facilitated.

Fabric Vacuum Function

⑬Chucking device

  • Quality improvement
  • Productivity improvement

Part Number:40286901

The template is precisely positioned and firmly fixed by the chucking device. You can prevent the template from being damaged due to template setting mistakes.

Chucking device

⑭Barcode reader

  • Productivity improvement
  • Safety improvement

Part Number:

40235194(For PS-800-13085, PS-800-12080, PS-800-8045)

The barcode reader can read the barcode pasted on the specified position of the template and call the sewing data of the template. Therefore, it is possible to eliminate human error such as erroneous recall of sewing data.

●Retrofitting is required if the country is not RFID certified.

Barcode reader

Compatibility table for each model

No. Part Name Part Number 13085 12080 8045 3830 2850
S
Spec
H
Spec
Rotary
knife
Laser S
Spec
H
Spec
Rotary
knife
Laser S
Spec
H
Spec
Rotary
knife
Laser S
Spec
H
Spec
Rotary
knife
S
Spec
1 Active tension
device
40228700 -
2 BK-8 Bobbin changer device 40228699 - - - -
3 Bobbin Thread
Remaining Detector
40228698 - - - -
4 Bird’s nest
prevention device
40228695 - - - -
5 Third thread
tension unit
40228696 -
6 Pen stick asm. 40228686 - - - -
7 Thick material kit 40228701 -
8 Template lift device 40239772 - - - -
9 Plastic
bobbin for
2-fold hook
Blue 40244784 -
Red 40245125
Yellow 40245137
Plastic
bobbin for
standard
hook
Blue 40244783 - - - - - - - - - - - - - - -
Red 40245124
Yellow 40245136
10 Needle guard hook 40273423 -
11 Counter knife reinforcing
plate for heavy weight
40269240 - - - - - - - - - - - -
12 Fabric
Vacuum
Function
For 3830 40286900 - - - - - - - - - - - - - -
For 2850 40275338 - - - - - - - - - - - - - - -
13 Chucking device 40286901 - - - - - - - - - - - - -
14 Barcode reader 40235194 - - - -

Options marked with ★ are equipped as standard.
