Product features
The new model control box, which energy-saving mode is provided (SC-921,SC-922)
The new model control box SC-921 and SC-922 have been newly developed. The control boxs are resistant to voltage fluctuations, noise and vibration. The new model control boxs are provided with an energy-saving mode for the first time in a control box for sewing machines. Power consumption during standby period is further reduced. Considering convenience in setup and resource saving, both the volume and the weight of the control box has been reduced by 30 % or more (as compared with the conventional control box SC-500 and SC-510).

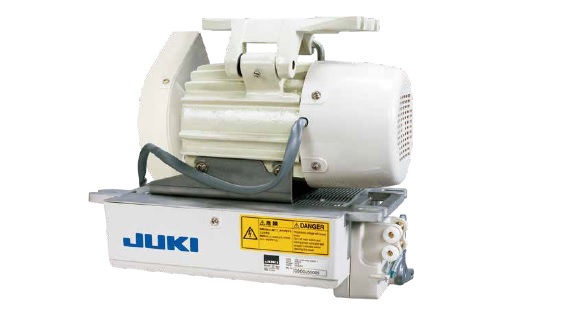

High-power motor (M51N)
High-torque AC servomotor M51N with an output of 750W has been adopted. The machine has excellent high-speed sewing performance and a strong cloth-penetrating force. The machine therefore demonstrates a broader range of applicability, from general fabric to extra heavy-weight materials

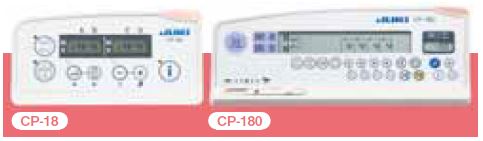

Operation panels (CP-18,CP-180)

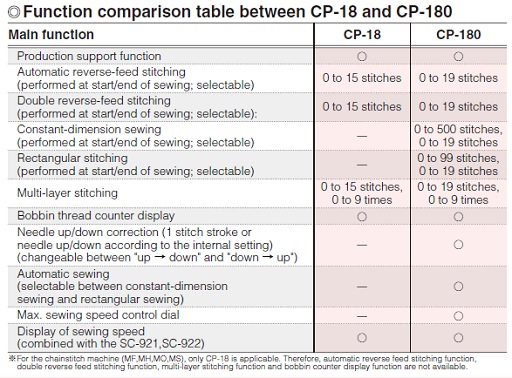

Two different operation panels, the CP-18 and CP-180 are applicable to the SC-921,922/M51N. Select the operation panel to be used, either the CP-18 or the CP-180. (The sewing machine will not operate unless the operation panel is installed.) The main functions of the respective operation panels are as shown in the table.
Specification
| Model name | SC-921/M51N | SC-922/M51N |
|---|---|---|
| Motor type | AC servomotor | |
| Motor output | 750W | |
| Power requirement | Single-phase 100～120V, 200～240V 3-phase 200～240V | |
| Power consumption | It depends on the operating conditions and installed machine head | |
| Number of input ports | 10 (for optional inputs) | Max.24 ※1 (for optional inputs) |
| Number of output ports | 8 (for optional outputs) | Max.32 ※1 (for optional outputs) |
| Number of basic programs ※2 | ̶ | 4 |
| Number of basic programs steps | ̶ | 25 sewing steps (per 1 program) |
※1 It depends on installed machine head.
※2 Basic programs are intended to operate external devices such as the stacker or to change the sewing machine operation during sewing.

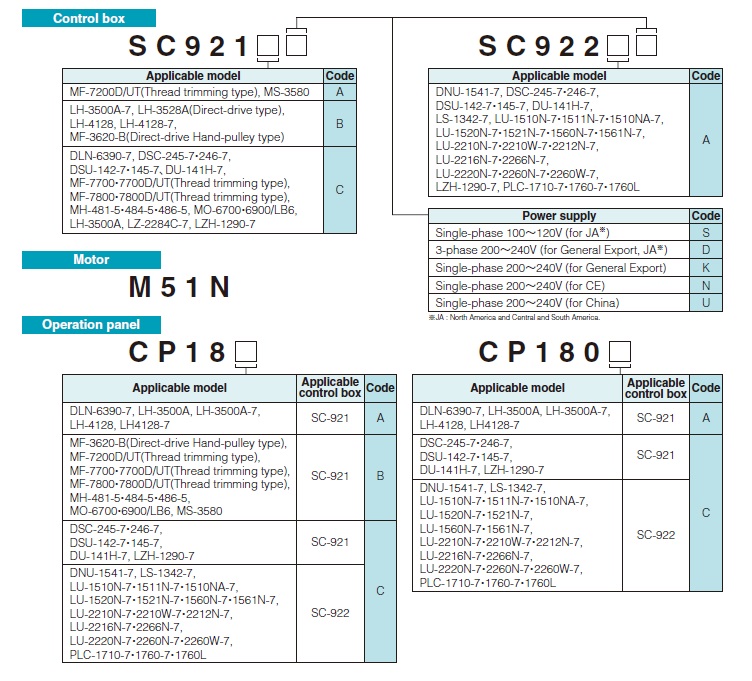

When you place orders
