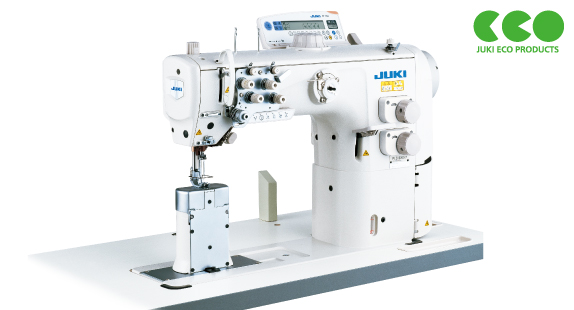

Post-bed, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook

It is the most-advanced sewing machine which is best-suited to the sewing of heavy weight materials sewing processes such as car-seats, sofas and sports goods.

Product overview

Product features

  • The long distance from the machine arm to the needle contributes to improved workability

    Most-advanced machine best suited to the stitching for heavy weight materials.

  • Stitches with authentic quality

  • Stitch length can be changed over among different lengths

    The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.

  • Reduction of noise and vibration

    Reduce weight by using resin parts for surface of vibration point. Noise and vibration decrease by changing the gear of an Hook into a bevel gear.

  • High-torque direct-drive motor is installed

    The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts.
    ※It does not contain  without automatic thread trimmer.

  • PLC-2760L (Thick-thread type)

    Thanks to the hook, thread-take up and gauges exclusively designed for PLC-2760L, the machine can sew with thread count up to #6. The machine is provided with the exclusive top and bottom feed locus ideal for sewing with thick-thread.

  • PLC-2765 (Organized split needlebars type)

    With its organized split needlebars, the machine produces well-balanced topstitch-seams even at the corners of materials such as sofas.

Basic performance

  • Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches

    The sewing machine has adopted a feed mechanism which keeps the ratio between the amount of the vertical movement of the walking foot and that of the presser foot constant even when the material is changed. The amount of the alternating vertical movement of the walking foot and the presser foot is 9 mm at the maximum. This amount can be set with ease by means of the large dial installed on the upper section of the sewing machine.

  • Higher lift of the presser bar

    A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever. Thanks to this feature, the process of joining leather and heavy-weight sponges, which are usually used as materials for expensive sofas, can be carried out with ease.

  • Eccentricity of the feed driving cam is adjustable

    Adjustment of the eccentricity of the feed driving cam has been enabled. As a result, the sewing machine is able to perform sewing with the feed that is best-suited to the material and thread used. It is no longer necessary to prepare other subclass model sewing machines.

  • The upper and lower feed ratio is adjustable

    The upper and lower feed ratio can be changed only by the adjustment of the lower feed amount without changing the upper feed amount, thereby preventing material slippage.

  • New mechanism of thread trimmer

    Thread trimming can be stable even at the maximum 12mm sewing length.

  • Walking-foot/presser-foot alternating vertical movement mechanism prevents irregular stitches

    The hook which can be adjusted with screw amout of needle guard contact to needle. The needle guard can be easily adjusted. Therefore, it prevents stitch skipping and wear of hook edge.

  • New lubrication system

    Oil does not flow backwards by a valve system. Therefore, oil can be supplied certainly even low speed. Thanks to the stable lubrication to the hook, it produces beautiful seams.

  • Double tension provided as : standard

    The machine is able to perform sewing with low-count thread under a higher tension, which is difficult for the conventional single-tension method, with ease. The machine comes with a dual-tension thread tension system.

  • Multi-functional 6-string switch
    (with automatic thread trimmer)

    Single or Double can be set easy through Multi-functional 6-string switch, regarding the machine with trimmer. (Available for more thick material)
    In addition to the one-touch type reverse feed switch, a multi-functional 6-string switch is also provided. Changeover of the amount of the alternating vertical movement of the walking foot and the presser foot and changeover of the stitch length can be done simply with this one push.

  • New bobbin thread spool device

    New bobbin thread spool device is no neccessity of rolling thread manually.

Specification

Model name PLC-2710S (Large hook) PLC-2710NS (Large hook) PLC-2710NM (Small hook) PLC-2710S-7 (Large hook) PLC-2710NS-7 (Large hook) PLC-2710NM-7 (Small hook) PLC-2760S (Large hook) PLC-2760NS (Large hook) PLC-2760NM (Small hook) PLC-2760S-7 (Large hook) PLC-2760NS-7 (Large hook) PLC-2760NM-7 (Small hook) PLC-2760L (Large hook) PLC-2765 (Large hook)
Type 1-needle 2-needle
without automatic thread trimmer
(V-belt type)
with automatic thread trimmer
(Direct-drive)
without automatic thread trimmer
(V-belt type)
with automatic thread trimmer
(Direct-drive)
thick-thread type
(V-belt type)
organized split  needlebars type
(V-belt type)
Max. Sewing speed 2,500sti/min* 2,000sti/min* 2,500sti/min*
Needle 135×17
Nm100~180
Standard Nm140
135×17
Nm140~200
Standard Nm200
135×17
Nm100~180
Standard Nm140
Thread TEX 50~167 #8~#0 TEX 50~167
Max. stitch length 12mm (forward / backward)
Stitch adjusting method 1 pitch dial 2 pitch dial 1 pitch dial 2 pitch dial 1 pitch dial 1 pitch dial
Thread take-up Link type
Automatic reverse feed function Lever type Pneumatic type Lever type Pneumatic type Lever type Lever type
Needle bar stroke 40mm
Hook Vertical-axis 2.0-fold capacity hook (latch type)
Lift of the presser foot By hand: 10mm
Auto: 20mm
By hand: 10mm
Auto: 18mm
Alternating vertical movement 1~9mm
Alternating vertical movement adjusting method Dial
DL device Option Provided as standard Option Provided as standard Option Option
Safety mechanism Provided as standard
Bobbin thread winder Built in the machine arm
Bottom-feedmicro-adjustment mechanism Provided as standard
Lubrication Automatic (Tank system)
Distance from needle to machine arm 347mm
Post height 170mm
Knee-lifter Provided as standard - Provided as standard - Provided as standard Provided as standard
Auto-lifter Option Provided as standard Option Provided as standard Option Option
Weight of the machine head 76kg 81kg 79kg 84kg 79kg 80kg
Power requirement/Power consumption Single-phase 100~120V / 200~240V,
3-phase 200~240V / 193VA (with automatic thread trimmer)
Air consumption - 0.1dm³/min (ANR) - 0.1dm³/min (ANR) - -

*"sti/min" stands for "Stitches per Minute."

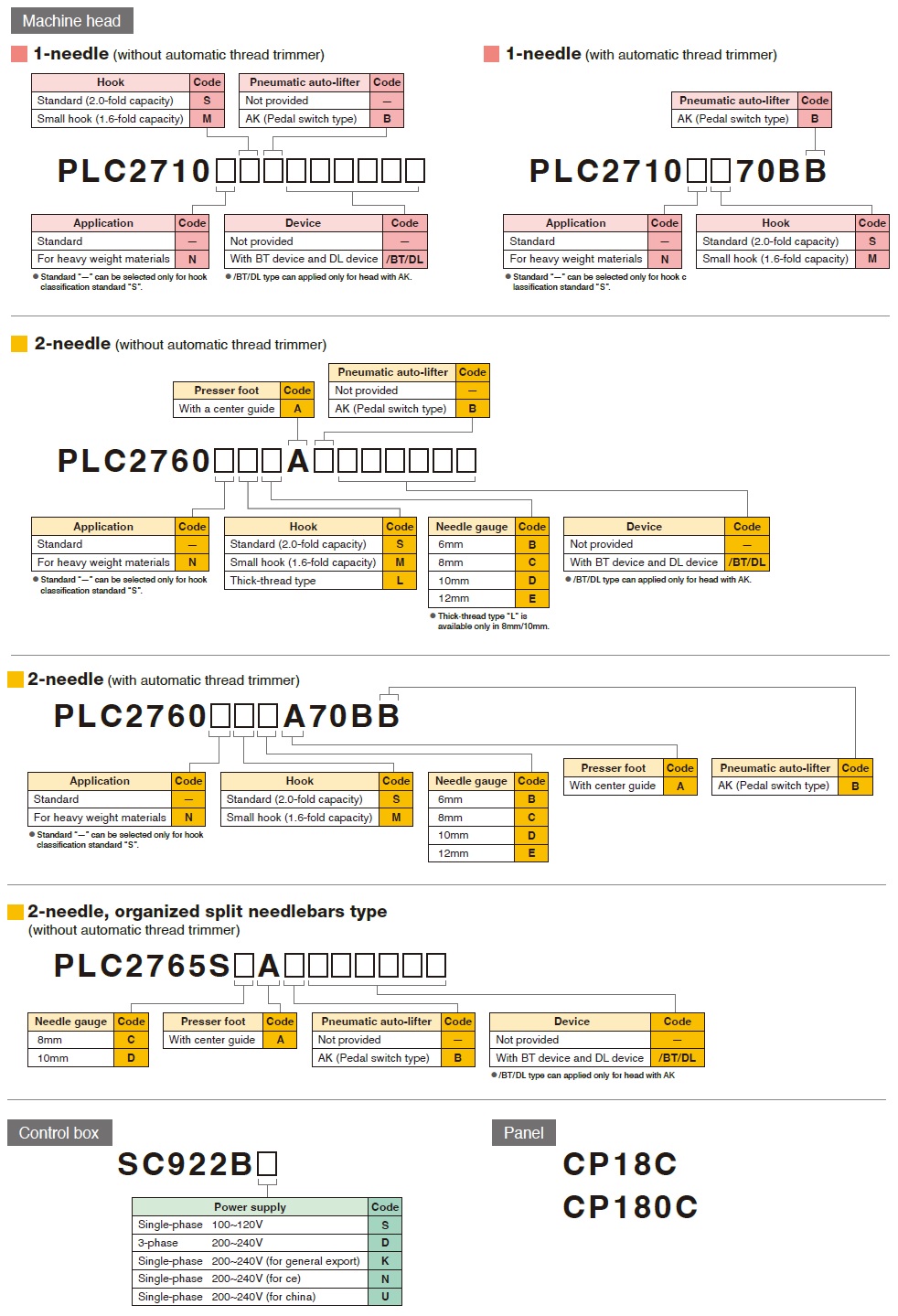

When you place orders

Gauge

PLC-2760-7

Guage GUAGE SET* THROAT PLATE_NEEDLE THREAD BREAKAGE FEED DOG NEEDLE CLAMP ASM. PRESSER FOOT ASM. FINGER GUARD* BED COVER FEEDING FEET (PAIR) FOR THE GUIDE SIDE COVERS (PAIR)
Figure -
Needle width P/N P/N P/N P/N P/N P/N P/N P/N P/N
3mm 40171199 40145774 40145765 40144367 40144390 - 10786903 40129982 40061164 40145775
4mm 40171201 40164657 40164656 40144369 10781557 - 10786903 40129982 40061806 40164675
6mm 40171203 40130927 40130925 40038778 40038810 With a center guide 40038799 40129982 40038854 40134017
8mm 40171205 40130908 40130907 40038776 40038808 With a center guide 40038799 40129982 40038852 40134018
10mm 40171210 40130064 40130062 40038774 40038806 With a center guide 40038794 40129982 40038850 40134019
12mm 40171229 40130928 40130926 40038772 40038802 With a center guide 40038794 40129982 40038848 40134020
14mm 40171233 40171240 40171239 40144371 - - - - -

*A bed slide is not included in the gauge set.
*The finger guard is a component of the presser feet (pair).

PLC-2760

Guage GUAGE SET* NO THROAT PLATE_NEEDLE THREAD BREAKAGE FEED DOG NEEDLE CLAMP ASM. PRESSER FOOT ASM. FINGER GUARD* BED COVER FEEDING FEET (PAIR) FOR THE GUIDE SIDE COVERS (PAIR)
Figure -
Needle width P/N P/N P/N P/N P/N P/N P/N P/N P/N
3mm 40171198 40172353 40145765 40144367 40144390 - 10786903 40129982 40061164 40145775
4mm 40171200 40172354 40164656 40144369 10781557 - 10786903 40129982 40061806 40164675
6mm 40171202 40131017 40130925 40038778 40038810 With a center guide 40038799 40129982 40038854 40134017
8mm 40171204 40131016 40130907 40038776 40038808 With a center guide 40038799 40129982 40038852 40134018
10mm 40171208 40130065 40130062 40038774 40038806 With a center guide 40038794 40129982 40038850 40134019
12mm 40171228 40131018 40130926 40038772 40038802 With a center guide 40038794 40129982 40038848 40134020
14mm - 40171244 40171239 40144371 - - - - - -

*A bed slide is not included in the gauge set.
*The finger guard is a component of the presser feet (pair).

PLC-2760L

Guage GUAGE SET* NO THROAT PLATE_NEEDLE THREAD BREAKAGE FEED DOG NEEDLE CLAMP ASM. PRESSER FOOT ASM._WITH CENTER GUIDE FINGER GUARD* BED COVER FEEDING FEET (PAIR) FOR THE GUIDE SIDE COVERS (PAIR)
Figure -
Needle width P/N P/N P/N P/N P/N P/N P/N P/N P/N
8mm 40171206 40153188 40153187 40038776 40038808 40038799 40129982 40067204 40134018
10mm 40171212 40130066 40130063 40038774 40038806 40038794 40129982 40039271 40134019
12mm 40171230 40171245 40172165 40038772 40038802 40038794 40129982 - 40134020
14mm 40171234 40171246 40172166 - - - - - -
16mm 40171236 40171247 40172167 - - - - - -

*A bed slide is not included in the gauge set.
*The finger guard is a component of the presser feet (pair).

PLC-2765

Guage GUAGE SET* NO THROAT PLATE_NEEDLE THREAD BREAKAGE FEED DOG NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT PRESSER FOOT ASM._WITH CENTER GUIDE FINGER GUARD* BED COVER FEEDING FEET (PAIR) FOR THE GUIDE SIDE COVERS (PAIR)
Figure -
Needle width P/N P/N P/N P/N P/N P/N P/N P/N P/N P/N
8mm 40171207 40131016 40130907 40062043 40062041 40038808 40038799 40129982 40038852 40134018
10mm 40171222 40130065 40130062 23023856 23021355 40038806 40038794 40129982 40038850 40134019
12mm 40171231 40131018 40130926 40172168 40172170 40038802 40038794 40129982 - 40134020
14mm 40171235 40171244 40171239 40172171 40172172 - -   - -

*A bed slide is not included in the gauge set.
*The finger guard is a component of the presser feet (pair).

PLC-2710-7

Guage THROAT PLATE FEED DOG PRESSER FOOT ASM. FEED FOOT ASM. RULER EDGE GUIDE SIDE COVER SIDE COVERS (PAIR)
Figure
- P/N P/N P/N P/N P/N P/N Remarks
40130067 40130061 10712552 10711653 40129979 40134098 F
40134097 A

PLC-2710

Guage THROAT PLATE FEED DOG PRESSER FOOT ASM. FEED FOOT ASM. RULER EDGE GUIDE SIDE COVER SIDE COVERS (PAIR)
Figure
- P/N P/N P/N P/N P/N P/N Remarks
40130068 40130061 10712552 10711653 40129979 40134098 F
40134097 A
