Lock-stitch Machine with Automatic Undertrimmer

Optimum for stitching thick materials such as automobile seats, bags and sofa sets.
Operations are simplified with the large pulley and touch back switch with release function.
Materials can be easily stitched as the needle can be raised to 16mm using the reverse run needle lifting function.

Product features

Basic performance

  • Stable thread cutting performance from thin to thick threads

    The meshing of the fixed female and the female linearly moving in parallel with the feed dog enables excellent cutting of thread from fine to thick threads (#8).

  • Reverse needle raising function (when using Limiservo X)

    After thread cutting, the reverse function of the sewing machine can be used to prevent the needle from coming out from the holder and to ensure the holder is raised to 16mm. This function ensures easy insertion and removal of thick materials.

  • Lineup of car seat (CS) specifications

    The lineup includes a CS specification model for sewing car seats and other projects. Changes have been made to the balance stroke and feed motion to further improve sewing quality in seat sewing projects.

  • Touchback switch with release function

    Turning the button releases the touchback function.

  • Stitch adjustment dial with lock

    Reliably prevents stitch change problems during sewing.

  • LE-FA - Automatic presser bar device (optional)

    By attaching LE-FA, presser bar can be performed by using the pedal motion.
    It reduces the burden on the knees of operators who work in a sedentary position.
    This product is indispensable for standing work.

  •



Specification

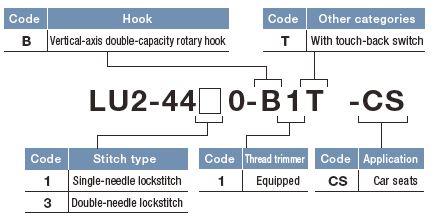

Model LU2-4410-B1T-CS LU2-4430-B1T
Stitching style Single-needle lockstitch Double-needle lockstitch
Application Car seat Thick items
Max. speed 2,000sti/min＊
Max. stitch length 9ｍｍ
Holder lift stroke (manual) 8mm
Holder lift stroke (knee) 16mm
Needle DP x 17 #21 DP x 17 #23
Hook Vertical-axis 2.0 fold-capacity hook
Needle bar stroke 35ｍｍ 36ｍｍ
Oil lubrication Automatic oil lubrication system
Thread cutting equipment Available
Touchback equipment Available
Needle width (standard) Needle width (special) 6.4ｍｍ
Needle width (special) Needle width (special) 3.2 / 4.0 / 4.8 / 8.0 / 9.5 /16.0 mｍ
Upper feed foot alternate amount 2 to 6mm
Bed shape Flat bed system
Throat length 250.5mm
Bed dimensions 517 x 178mm
Mass 36kg 37kg

Note: Mass includes the mass of the sewing machine only.
Note: An operation caution sticker is attached to the sewing machine unit.
* sti/min is the abbreviation for “stitches per minute”
