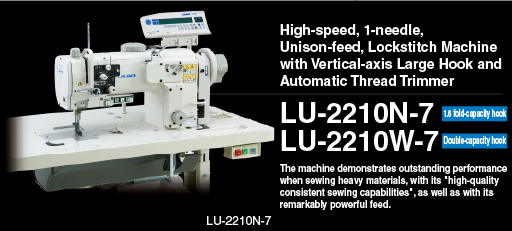

High-speed, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook and Automatic Thread Trimmer

Capabilities for sewing car seats have been significantly improved.

Product features

  • Capabilities for sewing car seats have been significantly improved

    Efficiency of feed and sewing capabilities for supporting sewing performance at a higher speed of 3,500sti/min

  • LU-2212N-7
    (1.6 fold-capacity hook / 2-pitch dial type)

    One of two different stitch lengths can be selected according to the application.

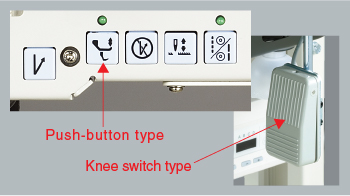

    The stitch length can be instantaneously changed over by pressing the stitch selector switch mounted on the lower part of the machine arm.

  • LU-2220N-7
    (1.6 fold-capacity hook / 2-pitch dial / Shorter thread remaining type)

    Thread nipping work required at the beginning and end of sewing is reduced. This is a high-performance machine which contributes to both increased productivity and improved quality for sewing car seats. Frequency of the use of scissors by the operator is reduced, thereby helping prevent the material from being damaged.

Basic performance

  • Higher lift of the presser foot

    • The machine is provided as standard with a pneumatic auto-lifter.

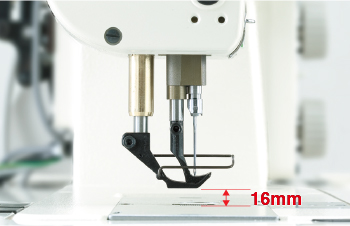

    • The high, 16mm presser foot lift enables easy material handling.

  • The walking foot and presser foot's alternating vertical movement can be set and changed with ease

    • The vertical strokes of the presser foot and walking foot (alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head.
    • In addition the sewing speed is automatically adjusted with the set vwith the set value. With this feature, ideal sewing conditions are maintained at all times.

  • The highly efficient vertical-axis 1.6 fold-capacity hook is provided as standard

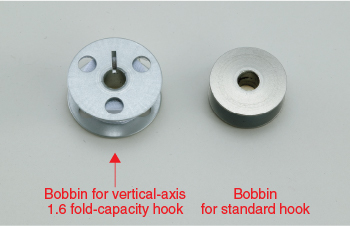

    With the adoption of this verertical-axis 1.6 fold-capacity hook, the frequency of bobbin thread winding is reduced, promising sewing work of increased efficiency.

  • Instantaneous change-over device for the alternate vertical movement amount (DL device) is provided as standard

    • The alternate vertical movement amount can be instantaneously maximized in a process for sewing a hard-to-feed part of material, such as a multilayered part, finishing with beautiful seams free from stitch gathering.
    • The machine is provided with both a hand switch and knee switch.

Specification

Model name LU-2210N-7
LU-2210W-7
LU-2212N-7 LU-2220N-7 LU-2260N-7
LU-2260W-7
1-needle 1-needle / 2-pitch dial type 1-needle / 2-pitch dial /
Shorter thread remaining type
2-needle
Max. sewing speed 3,500sti/min*
Max. stitch length 9mm (forward/backward) 6mm (forward/backward)
Needle bar stroke 33.8mm
Max. lift of the presser foot Auto: 16mm, By hand: 9mm
Alternating vertical movement 1mm~6.5mm (by dial)
Thread take-up Link type
Hook N: Vertical-axis 1.6 fold-capacity hook
W: Vertical-axis double-capacity hook
N: Vertical-axis 1.6 fold-capacity hook N: Vertical-axis 1.6 fold-capacity hook
W: Vertical-axis double-capacity hook
Needle 134×35R (Nm140) Nm110~Nm160
Thread #30~#4, B46~B138, Nm60/3~20/3 #20~#5, B64~B138, Nm40/3~20/3
Distance from needle to machine arm 263.5mm
Lubrication Automatic
Bobbin thread winder Built on the machine head
Safety mechanism Provided as standard
Automatic reverse feed function Provided as standard
Auto-lifter Provided as standard (pneumatic auto-lifter)
Compressed air 0.5MPa
Air consumption 0.763dm³/min (ANR) 1.078dm³/min (ANR) 1.337dm³/min (ANR) 0.736dm³/min (ANR)
Weight of the machine head 55kg 58kg
Power requirement  Single-phase 100~120V, 200~240V
3-phase 200~240V
Power consumption 425VA

*“sti/min” stands for “Stiches per Minute”

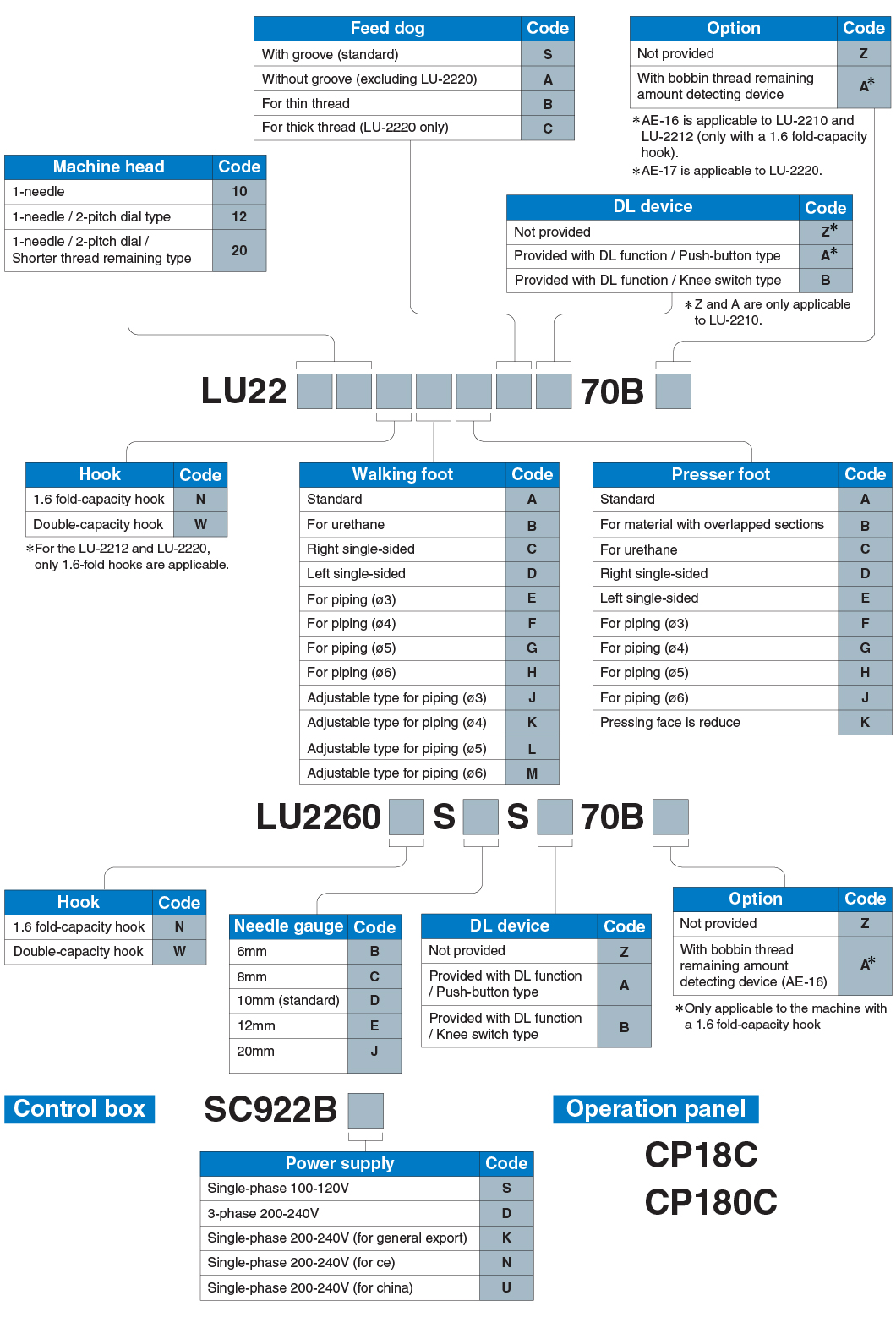

When you place orders

Gauge

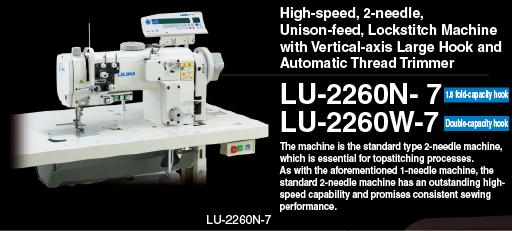

LU-2260N-7
LU-2260W-7

Guage GUAGE SET NEEDLE CLAMP ASM. NEEDLE ROD THREAD RACK FEED DOG  PRESSER FOOT ASM. FINGER GUARD
Figure -
Needle width P/N P/N P/N P/N P/N P/N
(4) 10784551 - 10779007 10780005 10781557 10786903
6 10784650 10777654 10780104 10781656
8 10784759 10777753 10780203 10781755
10 10784858 10777852 10779106 10780302 10781854 10787000
12 10784957 10777951 10780401 10781953
(14) 10785053 10778058 10780500 10782050 10787109
(16) 10785152 10778157 10780609 10782159
(18) 10785251 10778256 10780708 10782258
20 10785350 10778355 B1403526000 10780807 10782357 10787208
(22) 10785459 10778454 10780906 10782456
(24) 10785558 10778553 10781003 10782555
(30) 10785657 10778652 10781102 10782654 10787307
(36) 10785756 10778751 10781201 10782753 10787406
Remarks Sets having () with needle width are specially made to order. Slide plate_left and slide plate_right are not included int the set.
Guage WOLKING FOOT ASM. THROAT PLATE SLIDE PLATE_LEFT SLIDE PLATE_RIGHT
Figure
Needle guage size P/N P/N P/N P/N
(4) 10783058 10784502 10786309 10701803
6 10783157 10784601
8 10783256 10784700
10 10783355 10784809 10786408 10786002
12 10783454 10784908
(14) 10783553 10785004
(16) 10783652 10785103
(18) 10783751 10785202
20 10783850 10785301 10786507 10786101
(22) 10783959 10785400
(24) 10784056 10785509
(30) 10784155 10785608
(36) 10784254 10785707 10786606 10786200
Remarks Slide plate_left and slide plate_right are not included int the set.

LU-2210N-7
LU-2210W-7
LU-2212N-7
LU-2220N-7

Guage PRESSER FOOT ASM. WALKING FOOT ASM. *1 WALKING FOOT ASM_WITHOUT GROOVE
P/N Figure P/N Figure P/N Figure
Standard 10712552 10711653 10712354
*2 For overlapped sections of material. 10758456
*3 For overlapped sections of material. 10712651
*4 For light weight sponge. 10712750 - -
*5 For heavy weight sponge. 10711752 - -
Right edge presser - - 10711851 - -
Left edge presser - - 10711950 - -
For piping 3mm - - 10745354 - -
4mm - - 10745453 - -
5mm - - 10745552 - -
6mm - - 10745651 - -
For piping, adjustment type 3mm - - 10746352 - -
4mm - - 10746451 - -
5mm - - 10746550 - -
6mm - - 10746659 - -
Wide type - - 10712057 - -

*1 To be used when the thread cannot be grasped at the sewing start.
*2 Common type for overlapped sections and flat sections, intermediate type between 10712552 and 10712651.
*3 To be used when overlapped sections cannnot be smoothly fed.
*4 To be used for resilient materials such as sponge.
*5 To be used for further resilient materials.

Guage PRESSER FOOT ASM. WALKING FOOT ASM.
P/N Figure P/N Figure
- - - 10711653
For urethane - - 10711752
*2 Right edge presser 10712859 10711851
*3 Left edge presser 10712958 10711950
*4 For piping 3mm 10747350 10745354
4mm 10747459 10745453
5mm 10747558 10745552
6mm 10747657 10745651
*5 For piping, adjustment type 3mm - - 10746352
4mm - - 10746451
5mm - - 10746550
6mm - - 10746659
*1 Without groove - - 10712354
*6 Wide type 10713055 10712057

*1 To be used when the thread cannot be grasped at the sewing start.
*2 To be used to sew edges of material.
*3 To be used to sew edges of material.
*4 To be used for general piping processes.
*5 Permits adjustment of needle position with respect to the pipe.
*6 To be used when a sewing product cannot be smoothly fed.

Guage FEED DOG THROAT PLATE
Figure
- Model P/N P/N
Standard LU-2210N-7
LU-2210W-7
LU-2212N-7
10717106 10701704
Without groove 10717205 -
For fine thread  10717304 -
 Wide type 10739001 10702009
Standard LU-2220N-7 40083237 40058071
OP 40058070 -
40062827
40064353
40081022
Guage FEED FOOT ASM. PRESSER FOOT ASM.
Figure
For machining P/N 10712255 10748358
Guage SWING WDGE GUIDE NEEDLE BAR THREAD GUIDE
Figure
Model P/N P/N
LU-2220N-7 MAH152010A0 10735868
