1-needle, unison-feed, lockstitch machine with vertical-axis large hook and automatic thread trimmer (shorter-thread remaining type for sewing car seats)

This model of sewing machine is best-suited to car-seats manufacturing factories.
The machine achieves beautifully-finished seams with its shorter-thread remaining type thread trimming mechanism.

Product features

  • Responsiveness to materials has been substantially improved

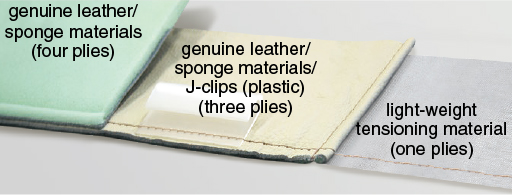

    This single unit of machine is able to smoothly sew a wide variety of materials such as genuine leather, J-clip (plastic), heavy-weight materials for men's trousers, light-weight fabric materials and even light-weight materials which need to be sewn with stretched to remove the slack in garment body.

  • Seam quality and sewing performance have been greatly improved

    • Well-tensed seams can be produced with a lower thread tension. (Needle thread tension can be reduced by 50% in comparison with that required for the conventional models.)
    • Even when sewing a light-weight material which needs to be sewn with stretched, the machine is able to reduce puckering.
    • The machine is able to reduce the frequency of occurrence of thread breakage, stitch skipping, needle breakage and isolated idling loops.
    • Since the machine produces well-tensed seams even when using a thin higher-count needle, it is able to provide finished seams that ideally match the material.

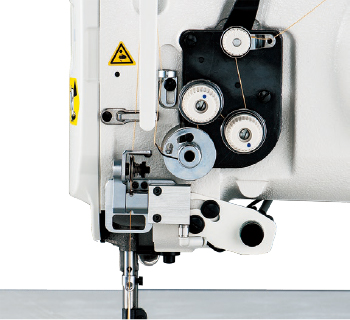

  • Needle thread clamping device

    This device pulls the needle thread into the wrong side of the material at the beginning of sewing, thereby ensuring more beautifully-finished seams.

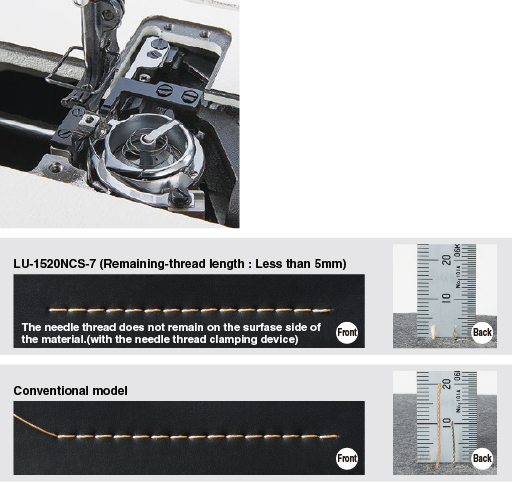

  • The length of thread remaining on the material after thread trimming has been reduced to save manual nipping by the operator

    • The machine has adopted newly-designed direct-drive thread trimming mechanism to shorten the length of thread remaining on the material after thread trimming.
    • This results in the reduction of manual thread nipping at the end of sewing.
    • Frequency of use of scissors is also reduced, thereby contributing to the prevention of damage to the fabric by scissors.

Specification

Name of model LU-1520NCS-7
Max. sewing speed 2,000 sti/min*
Max. stitch length Normal/reverse: 7 mm
Needle bar stroke 38 mm
Pitch changing method By dial
Thread take-up Slide type
Hook Vertical-axis, double-capacity hook
Lift of the
presser foot		 Manual 9 mm
Auto 16 mm
Alternating vertical
movement amount		 1~6.5 mm
Needle 135×17, SY3355
Nm120 (Nm100~Nm160)
Thread #30~#5
Lubrication Automatic (Partly manual with an oiler)
Lubricating oil JUKI New Defrix Oil No. 2

*"sti/min" stands for "Stitches per Minute."

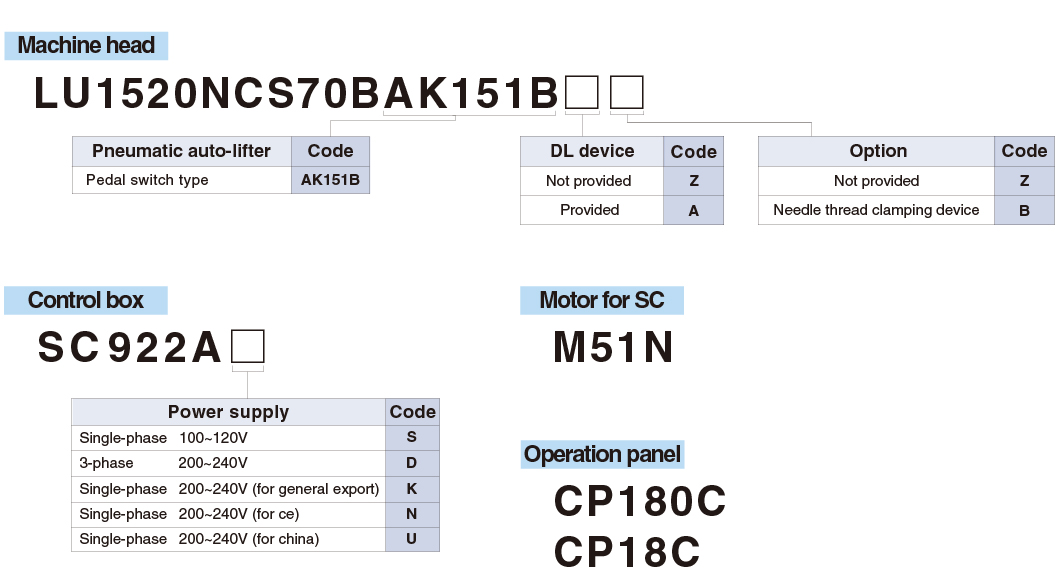

When you place orders

Gauge

LU-1520NCS-7

Guage THROAT PLATE FEED DOG
Figure
P/N 40162276 40162277 40165977 40165978
Remarks Standard Standard OP:Nm120 OP:Nm130
Guage WALKING FOOT PRESSER FOOT
Figure
P/N 40041246 B14700530A0 D1470241EA0 D1470241EAA 40041243 21350152 B1525241HA0
Remarks Standard OP OP OP Standard OP OP
Guage WALKING FOOT PRESSER FOOT WALKING FOOT PRESSER FOOT WALKING FOOT PRESSER FOOT WALKING FOOT PRESSER FOOT
Figure
OP: For piping inch mm P/N P/N P/N P/N P/N P/N P/N P/N
5/32 4.4 B1478245000 B15302450AC B1478245000 B15312450AC B147424500C B15272450AC 10338309 B1525563SA0
3/16 4.8 B15302450AD B147924500D B15312450AD B147424500D B15272450AD
1/4 6.4 B15302450AF B147924500F B15312450AF B147424500F B15272450AF
5/16 7.9 B15302450AH B147924500H B15312450AH B147424500H B15272450AH
3/8 9.5 B15302450AK - - B147424500K B15272450AK
Remarks - Back cut With teeth With teeth
Guage WALKING FOOT PRESSER FOOT
OP P/N Remarks Figure P/N Remarks Figure
MAQ09307000 - MAQ093080A0 With teeth
For binding
MAN10452000 -
B147624500A With teeth B15292450AA With teeth
10325306 - 10325157 -
10326205 For B&W 10326304 For B&W
B14702450A0 - B15242450A0 -
