1-needle, Lockstitch Machine with Double-capacity Hook
The machine provided with a double-capacity hook best-suited for the sewing of heavy-weight materials, upgrades the quality of finished products and promotes efficiency in production.
Product features
Widely applicable to the sewing of heavy-weight materials
The machine for heavy-weight materials (L-Type) has the maximum stitch length as long as 8mm, thereby making the machine widely applicable to the sewing of such as bags, etc. requiring a longer stitch length.
Higher lift of the presser foot
The lift of the presser foot is as high as 13mm when using the knee lifter, thereby allowing the operator to handle the material on the machine with ease, even when using heavy materials.
The double-capacity hook is provided as standard
The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.
Reliable thread trimmer to surely cut a thread as thick as the count #8
Thanks to the reliable thread trimming mechanism which comes with a moving knife and a counter knife, the machine quickly and surely trims a thread from a thin one up to a thread as thick as the count #8.
Basic performance
Standard with attachment mounting seats (DDL-5600NL-7)
The machine is provided as standard with extra attachment mounting seats for attachment of new auxiliary parts in the future. The extremely high durability of the seats ensures an extended service with frequent replacement of attachments.
Specification
| Model name | DDL-5600NJ | DDL-5600NL | DDL-5600NJ-7 | DDL-5600NL-7 | DDL-5600NU-7 |
|---|---|---|---|---|---|
| Application | For jeans | For heavy-weight materials |
For jeans | For heavy-weight materials |
For leather shoes |
| Max. sewing speed | 4,000sti/min* | 3,000sti/min* | 4,000sti/min* | 3,000sti/min* | |
| Max. stitch length | 5mm (normal/reverse feed) |
8mm (normal/reverse feed) |
5mm (normal/reverse feed) |
8mm, 5mm (reverse feed) |
|
| Needle bar stroke | 36mm | ||||
| Lift of the presser foot | By hand: 5.5mm, By knee: 13mm | ||||
| Needle (at the time of delivery) | DB×1 (#21) #20~#23 For JE: 134 (Nm130) | ||||
| Thread | #30~#8, B46~B92, Nm=60/3~30/3 | ||||
| Hook | Horizontal-axis double-capacity hook | ||||
| Lubrication | Automatic | ||||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | ||||
| Automatic reverse feed function | - | Provided as standard | |||
| Power requirement | - | Single-phase 100~120V, 200~240V, 3-phase 200~240V | |||
| Power consumption | - | 650VA | |||
| Weight of the machine head | 28kg | 30kg | |||
*"sti/min" stands for "Stitches per Minute."

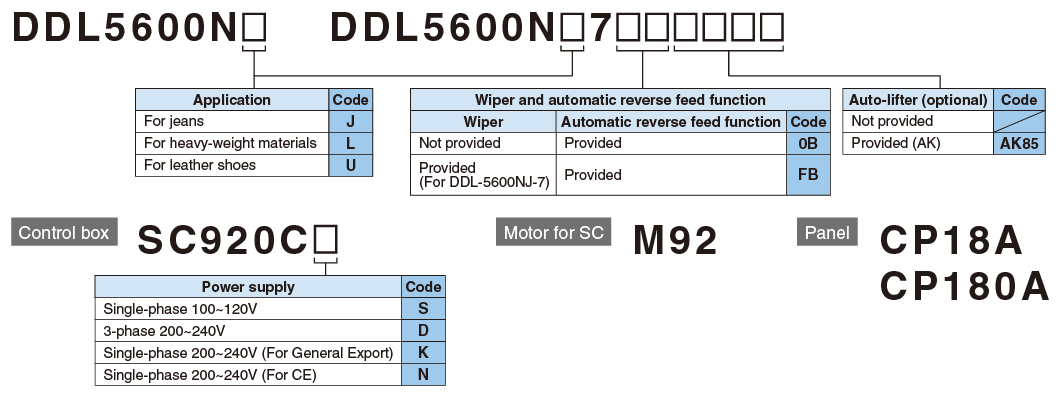

When you place orders
Gauge
DDL-5600NJ
DDL-5600NJ-7
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
 |
| - | P/N | P/N | P/N |
| Standard | 11400801 | 11403003 | D1524555EAL |
| Other | - | - | D1524555ECL * |
| Remarks | - | - | * With finger guard |
DDL-5600NL
DDL-5600NL-7
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
|
| - | P/N | P/N | P/N |
| Standard | D1109555E0L | D1613560E0A | D1524555EAL |
| Other | D1109555E0B * | D1613555E0L | D1524555ECL * |
| Remarks | * Groove: Effective for thread tightening | - | * With finger guard |
