Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine with Vertical-axis Hook

The LS Series offers a consistent stitching pitch and outstanding ability to sew sharp curves. This makes the machine ideal for the sewing of tubular articles.

Product features

  • Sewing capabilities and feed performance that respond to a broad range of uses in the sewing of heavy materials

    With its larger needlebar stroke, larger lift of the presser foot, and newly adopted double-tension mechanism, the machine sews beautifully with thick threads (low count thread) and at higher thread tensions. This allows the machine to sew a broad range of heavy materials.
    * The LS-1340 is provided with a single-tension mechanism.

  • Rectangular feed

    Compared with the elliptical feed, the rectangular feed helps reduce gathered stitches.

  • Alternating vertical movement mechanism

    The ratio of alternate vertical movement remains unchanged even when the material thickness changes.

  • Excellent for the sewing of sharp curves

    The slimmed-down throat plate easily responds to the sewing of small tubular articles with diameters as small as φ40mm.
    This enhances the machine's ability to smoothly sew not only bags and shoes, but also small articles such as wallets.

  • Gauge for small articles are provided as standard

    The throat plate and feed dog are provided with a gauge that offers an excellent capability for the sewing of sharp curves. These gauges are especially useful for the sewing of curves of bags and leather cases.

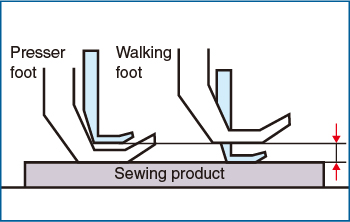

  • The vertical stroke of the walking foot and presser foot can be easily set and changed
    (LS-1342, LS-1342-7)

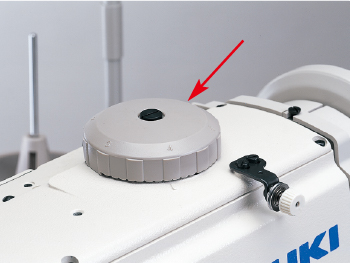

    The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head. The sewing speed is automatically regulated based on the vertical stroke setting. This ensures ideal sewing conditions at all times.

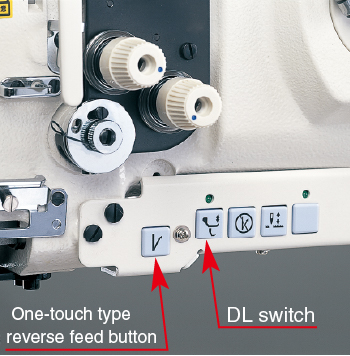

  • The machine is provided as standard with an instantaneous change-over device for the alternate vertical movement amount (DL device)

    • For sewing processes that handle heavy materials or multi-layered parts of material, the alternating vertical movements of the walking foot and presser foot can be quickly set to maximum by pressing the DL switch.
       The result is beautiful seams free from gathered stitches.
    • The machine is provided with both a hand switch and knee switch.



  • A helpful automatic reverse feed function is provided as standard

    With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated.

  • Thread trimming without fail

    The machine handles thread counts from #30 to #5.
    Its highly rigid thread trimming mechanism cuts the thread without fail. The machine can be applied to a broad range of sewing processes, including the sewing of bags.

Basic performance

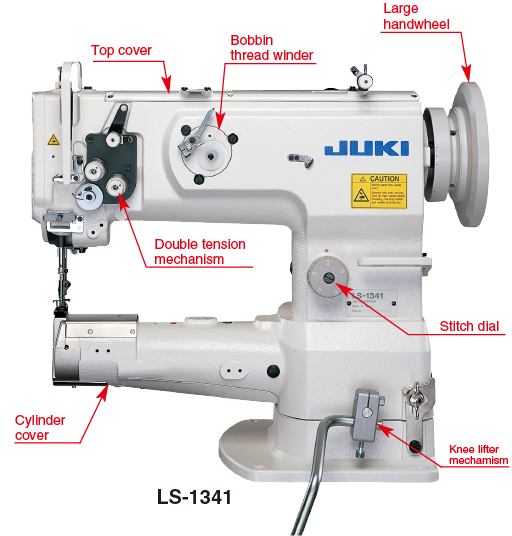

  • Excellent operability and maintainability

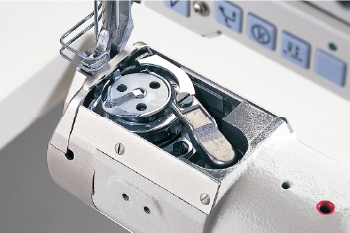

    • The underside of the top end of the cylinder-bed is provided with an easy-to-remove cover. This promises easy cleaning of thread wastes.
    • The stitch length can be easily selected by the stitch dial. The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel (φ160mm).
    • A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup.
    • The machine’s full-open-type top design makes adjusting works easier.
    • The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. (The hook needs manual oiling with an oiler.)
    • A walking foot mechanism is built into the machine arm to prevent oil from scattering.

  • The area around the needle entry is designed to be easily observed

    Since the needle thread-tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry is easily viewable. This substantially improves the operability of the machine.

Specification

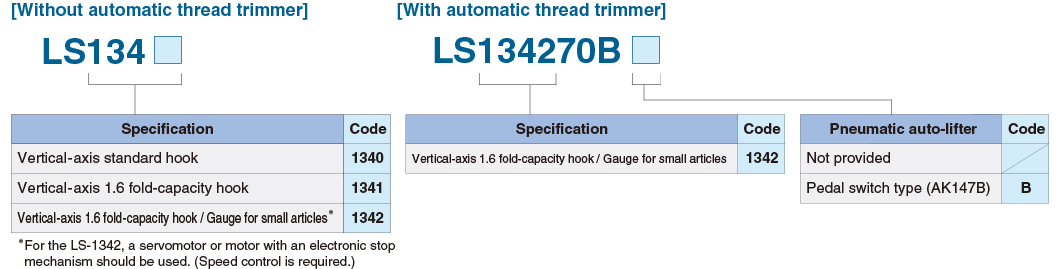

Model name LS-1340 LS-1341 LS-1342 LS-1342-7
Gauge type Standard For small articles
Max. sewing speed 2,500sti/min* 2,000sti/min*
Max. stitch length 6mm(Normal/Reverse feed)
Needle bar stroke 36mm
Lift of the presser foot By hand: 9mm, By knee: 16mm
Thread take-up Slide type
Amount of alternating
vertical movement
2.5~6.5mm 1~6.5mm
Hook Vertical-axis standard hook Vertical-axis 1.6 fold-capacity hook
Safety mechanism
Needle
(at the time of delivery)
135×17
(Nm140) Nm100~Nm180
135×17
(Nm160) Nm100~Nm180
Thread #50~#8, B33~B92,
Nm=120/3~30/3
#40~#5, B33~B138,
Nm=90/3~20/3
#30~#5, B46~B138,
Nm=60/3~20/3
Safety mechanism Provided as standard
Lubrication Centralized oil wick lubrication (hook: by an oiler)
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Distance from needle to
machine arm
255mm
Cylinder-bed diameter φ72mm
Weight of the machine head 37.5kg 40kg
Automatic reverse feed
function
Option Provided as standard
Power requirement - Single-phase 100~120V, 200~240V
3-phase 200~240V

*"sti/min" stands for "Stitches per Minute."

When you place orders

Gauge

LS-1341

Guage EDGE GUIDE ASM. FIXING BINDER FITTING PLATE THROAT PLATE FEED DOG WALKING FOOT
Figure
OP B91013400A0 B9104340000 21445606 21225305
21225008
21231006
Remarks - - With teeth - -

LS-1342-7
LS-1342

Guage BINDER SET THROAT PLATE FEED PLATE FEED PLATE TAPE GUIDE
Figure
OP 21434956 21427406 MAQ14302000 MAQ14303000 MAQ09206000
Remarks Including "*" * For binder * A * B *
Guage SPRING FEED DOG VERTICAL FEE CAM PRESSER FOOT ASM. PRESSER FOOT ASM.
Figure
OP 21232004 MAQ14306000 21445200 21445150 21445051
Remarks * * * For binder * For binder *
Guage FEED FEED EDGE GUIDE ASM. FIXING BINDER FITTING PLATE PRESSER FOOT
Figure
OP 21225404 21445507 B91013400A0 B9104340000 21445408
Remarks For binder For accessory - - -
Guage WELDING INNER PRESSER ASM. WELDING OUTER PRESSER ASM. FINGER GUARD
Figure
OP 3/16 - 21446158 23034002
1/4 21445952 21446059
Remarks OP OP -
