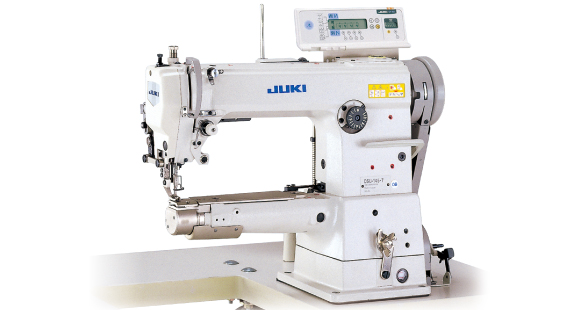

Cylinder-bed, 1-needle, Top and Bottom-feed, Lockstitch Machine
with Automatically Lubricated for Hook
The top-and-bottom feed mechanism provides upgraded feed efficiency, feeding heavy-weight material steadily and smoothly.
Product features
Consistent sewing performance at a high speed
The top-and-bottom feed mechanism provides upgraded feed efficiency, feeding heavy-weight material steadily and smoothly. Even when the machine runs at a high speed, this highly accurate feed mechanism promises consistent sewing performance with no irregular feed pitch.
Higher lift of the presser foot
When using the knee lifter, the lift of the presser foot is as high as 15mm (13mm for the machine with a thread trimmer).
With this extra space the operator can handle the material on the machine without any difficulties.
The highly efficient horizontal-axis double-capacity hook is provided as standard
With the adoption of this horizontal-axis double-capacity hook, the frequency of bobbin thread winding is reduced, promising sewing work of increased efficiency.
Automatic lubrication system
By adopting an automatic lubrication system that automatically feeds oil to the hook, the need for hook maintenance is eliminated.
Specification
| Model name | DSU-145 | DSU-145-7 | ||||
|---|---|---|---|---|---|---|
| Max. sewing speed | 2,000rpm | |||||
| Max. stitch length | 6mm (forward/backward) | |||||
| Needle bar stroke | 37mm | |||||
| Lift of the presser foot | By hand: 7mm, By knee: 15mm | By hand: 6mm, By knee: 13mm | ||||
| Thread take-up | Link type | |||||
| Alternating vertical movement | 2~5mm | |||||
| Hook | Horizontal-axis double-capacity hook | |||||
| Needle (at the time of delivery) | DP×17 (#21) #14~#22 | |||||
| Thread | #50~#8, B33~B92, Nm=120/3~30/3 | |||||
| Lubrication | By an oiler (hook: automatic) | |||||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |||||
| Cylinder-bed diameter | φ50mm | |||||
| Distance from needle to machine arm | 270mm | |||||
| Weight of the machine head | 36kg | 39kg | ||||
| Automatic reverse feed function | - | Provided as standard | ||||
| Power requirement | - | Single-phase 100~120V, 220~240V 3-phase 200~240V |
||||

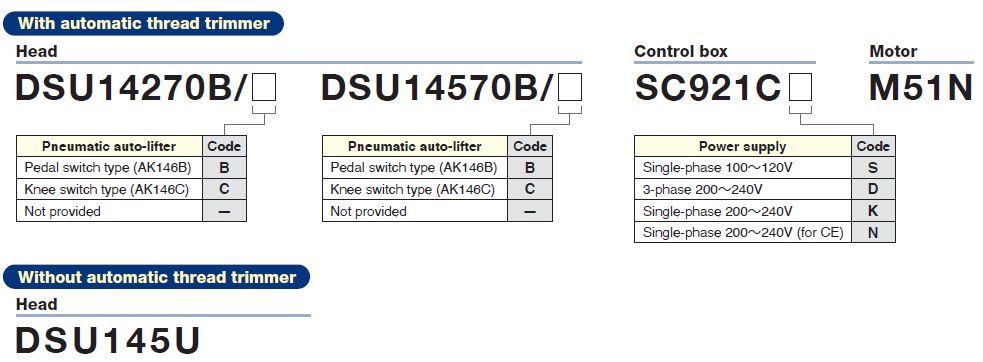

When you place orders
Gauge
DSU-145-7
| Guage | THROAT PLATE | ||
|---|---|---|---|
| Figure |  |
 |
 |
| P/N | B110514500B | D1105145E0B | D1105145E0T |
| Guage | FEED DOG | ||||
|---|---|---|---|---|---|
| Figure |  |
 |
 |
 |
 |
| P/N | B161314500A | B161314500B | D1613145E0A | D1613145E0B | D1613145E0T |
| Guage | PRESSER FOOT ASM. | PRESSER FOOT ASM. | PRESSER FOOT ASM. |
|---|---|---|---|
| Figure |  |
 |
 |
| P/N | D1525141EAA | B15251450AT | B152514500A |
