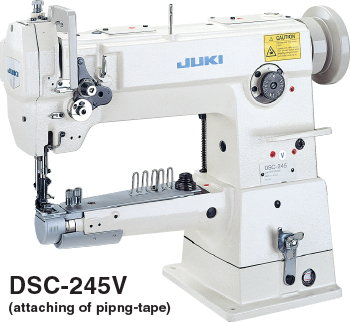

Cylinder-bed, 1-needle, Unison-feed, Lockstitch Machine

The DSC Series of sewing machine for sewing tubular materials such as bags and shoes has an outstanding ability to sew small curves smoothly.

Product features

  • The DSC Series of sewing machine for sewing tubular materials such as bags and shoes has an outstanding ability to sew small curves smoothly

    With its consistent seam quality and sharp-curve sewing function, the JUKI DSC Series of cylinder-bed, 1-needle, unison-feed, lockstitch machines has earned an outstanding reputation. A further-upgraded DSC Series is now launched. The machine is provided with automatic thread trimmer and comes with thoroughly-redesigned electrical components, thereby ensuring higher power and improved reliability.
    JUKI is confident that its newly launched DSC Series is provided with all the essentials needed for the sewing of heavy materials.

  • When using the knee lifter, the lift of the presser foot is as high as 15mm (Machine without a thread trimemer)

    For the machine provided with a thread trimmer, the lift of the presser foot is as high  as 13mm, allowing the operator to handle the material with ease.

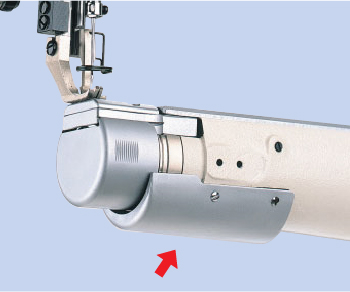

  • automatically lubricated for hook
    (DSC-245, DSC-245-7)

    The machine is equipped with a new automatic hook-lubricating system that automatically lubricates the hook. With this feature, a maintenance-free hook has finally materialized.

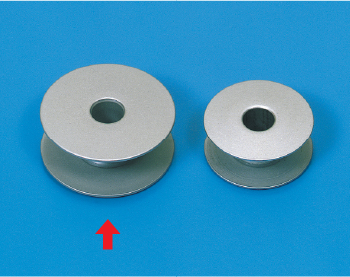

  • double-capacity hook
    (DSC-246, DSC-246-7)

    The hook accommodates thread twice as long as that for a standard hook. It also reduces the frequency of bobbin thread replacement, thereby enabling the operator to smoothly conduct sewing with a higher degree of efficiency.

Specification

Model name DSC-244 DSC-245 DSC-246
Max. sewing speed 2,200sti/min*
Max. stitch length 6mm (normal/reverse feed)
Needle bar stroke 36mm 38mm
Lift of the presser foot By hand: 9mm, By knee: 15mm
Thread take-up Slide type
Alternating vertical movement 3.0~4.8mm
Hook Horizontal-axis full-rotary hook Horizontal-axis full-rotary double-capacity hook
Needle (at the time of delivery) DP×17 (#18) #14~#21
For JE: 135×17 (Nm110)		 DP×17 (#21) #14~#23
For JE: 135×17 (Nm130)
Thread #50~#20, B33~B69, Nm=120/3~40/3 #50~#8, B33~B92, Nm=120/3~30/3
Lubrication By an oiler By an oiler (hook: automatic) By an oiler
Lubricating oil JUKI New Defrix Oil No. 1 (equivalent to ISO VG7)
Cylinder-bed diameter ø 46mm ø 50mm
Distance from needle to machine arm 264mm
Weight of the machine head 36kg

* “sti/min” stands for “Stitches per minute”

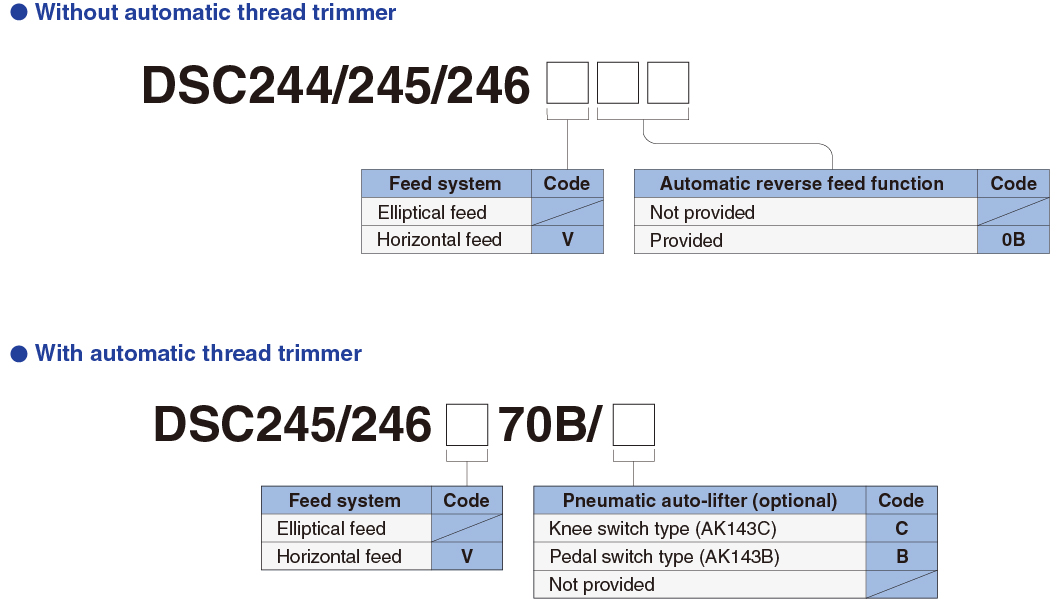

When you place orders

Gauge

DSC-244
DSC-245-7
DSC-245

Guage THROAT PLATE FEED DOG FEED DOG FEED DOG FEED DOG FEED DOG
Figure
P/N B110524500C B161324500A B161324500B D1613245E0B B161324500C D1613245E00
Remarks - For cloth For thin needle For thin needle - -
DSC-244 Provide Provide Provide - Provide -
DSC-245-7,DSC-245 - - - Provide - Provide
Guage FEED DOG FEED DOG PRESSER FOOT ASM. PRESSER FOOT ASM. WALKING FOOT
Figure
P/N D1613245E0C B1613245000 B15242450AA B15242450AB B147024500B
DSC-244 - Provide - - -
DSC-245-7,DSC-245 Provide - - - -

DSC-246-7
DSC-246

Guage THROAT PLATE FEED DOG FEED DOG FEED DOG
Figure
P/N 21131305 21134002 21135108 21134200
Remarks For machining For cloth For thin needle For thin needle
DSC-246-7 - Provide - Provide
DSC-246 Provide - Provide -
Guage PRESSER FOOT ASM. PRESSER FOOT ASM. PRESSER FOOT ASM. PRESSER FOOT ASM.
Figure
P/N 21138201 21138003 B15242450AA B15242450AB
Remarks Diamond cut For machining - -
DSC-246-7 - - - -
DSC-246 Provide Provide Provide -
Guage WALKING FOOT WALKING FOOT
Figure
P/N 21139001 B147024500B
Remarks For machining -
DSC-246-7 - -
DSC-246 Provide -
