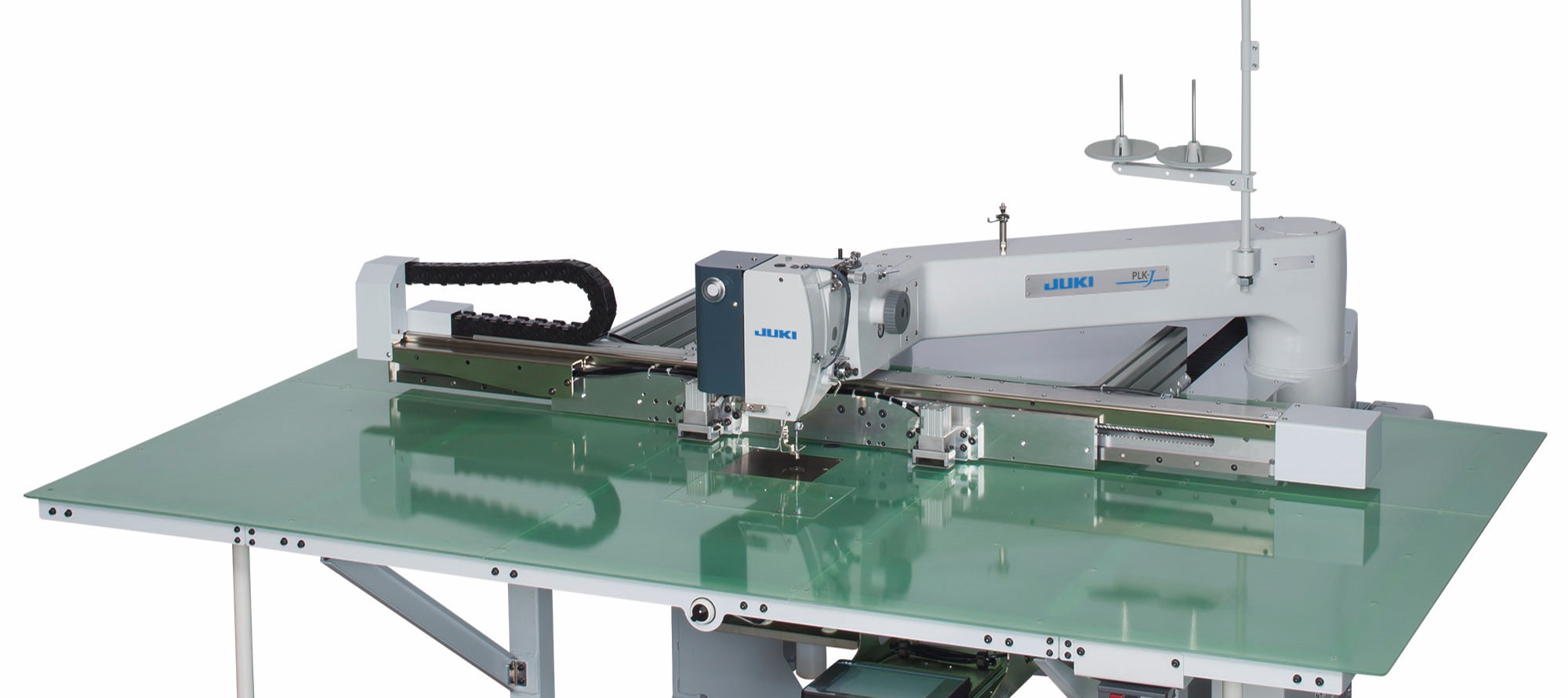

Computer-controlled Cycle Machine with Input Function
Sewing area 1,000 x 500mm
Product features
Basic performance
Fabric presser with optimal pressure
A new motion control allows the presser foot to press down on various types of fabric, from thin to thick materials, with optimal pressure.
Optimizes thread tightness in all stitching directions
This function reduces variation in tightness according to the stitching direction and improve quality.
Faster and more attractive
The world’s highest class of actual sewing speed is achieved (as of April 2020).
Curves and large seams can be sewn quickly and beautifully.
Automatic checking of setting mistakes
The sewing machine checks the thickness of the fabric and detects setting mistakes prior to sewing.
The oiling timing of the hook is digitized to ensure proper oiling and prevent excessive oil use.
Excellent energy-saving effects
The new arm bed structure and new XY feed control realize low vibration and low sound, and thereby realize energy savings.
Stable thread interlocking from the first stitch
“Stitch interlock faults” are resolved by minimizing the flapping of fabric at the start of stitching.
Detects stitching errors
In addition to visual detection by the operator, stitch errors (skipped stitches, thread breaks) are detected by the machine to help discover defective items.
*This function does not warranty all abnormal stitch detections. Depending on the sewing conditions, there may be undetected or false detection.
Faster adjustment of presser foot height
The height of the presser foot is adjusted after automatically measuring the overall fabric thickness along the stitching pattern.
Faster adjustment and reproduction of past adjustments
The hook, presser foot, and thread trimmer are digitally adjusted.
Open/close window for bobbin exchange
Unlike conventional large models which required the operator to get under the sliding plate to replace the bobbin, the J series models have an open/close window on the sliding plate so that the bobbin can be easily exchanged. This greatly reduces the operator’s work.
Quick sewing of even thick materials
Work efficiency is greatly improved with batch stitching.
Specification
| Model | PLK-J10050RH | ||
|---|---|---|---|
| Stitching style | Single-needle lockstitch | ||
| Hook | 6-fold capacity rotary hook | ||
| Needle | DD x 1 #26 | ||
| Max. speed (Note 1) | Intermittent feed 1,000 sti/min*, Continuous feed 1,000 sti/min* |
||
| Feeding system | Intermittent or continuous (switchover method) | ||
| Stitch length | 0.1 to 20.0mm (min. resolution 0.1mm) | ||
| Max. stitches | 20,000 stitches/pattern | ||
| Max. patterns (Note 2) | 9,000 | ||
| Memory medium | USB flash memory | ||
| Work holder | Chucking system | ||
| Stitch alert (Note 3) | Standard equipment | ||
| Outline dimensions | 2,122 x 1,941 x 1,250mm (WxDxH) | ||
| Mass | 640kg | ||
| Power supply | 200 to 240V single-phase/three-phase | ||
* sti/min is the abbreviation for “stitches per minute”
Note 1: Sewing speed may be limited by the type of sewing material, presser weight, stitch length, etc.
Note 2: Max. patterns may be limited depending on the number of stitches per pattern in the memory.
Note 3: Detection of all stitch errors is not guaranteed. Always complete adjustments according to the stitching conditions before use.
