Computer-controlled, High-speed Shape-tacking Machine
(without the work clamp foot for attaching hooks & eyes and snaps)

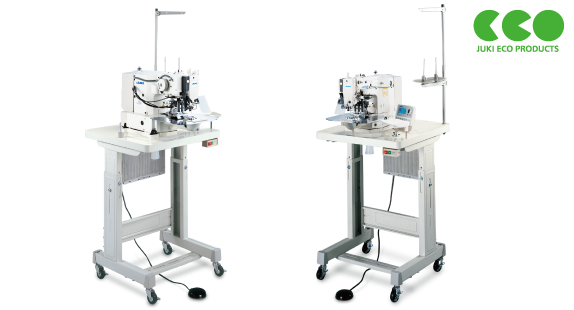

Productivity is increased by using two units of the LK-1910SS5010Z.

Product features

  • Productivity is increased by using two units of the LK-1910SS5010Z

    Increased productivity is promised when the operator operates two sewing machines alternately, i.e., one is the sewing machine for attaching hooks, and the other is the sewing machine for attaching eyes.

Basic performance

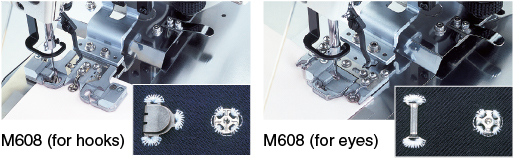

  • Work clamp foot for attaching hook & eye and snaps

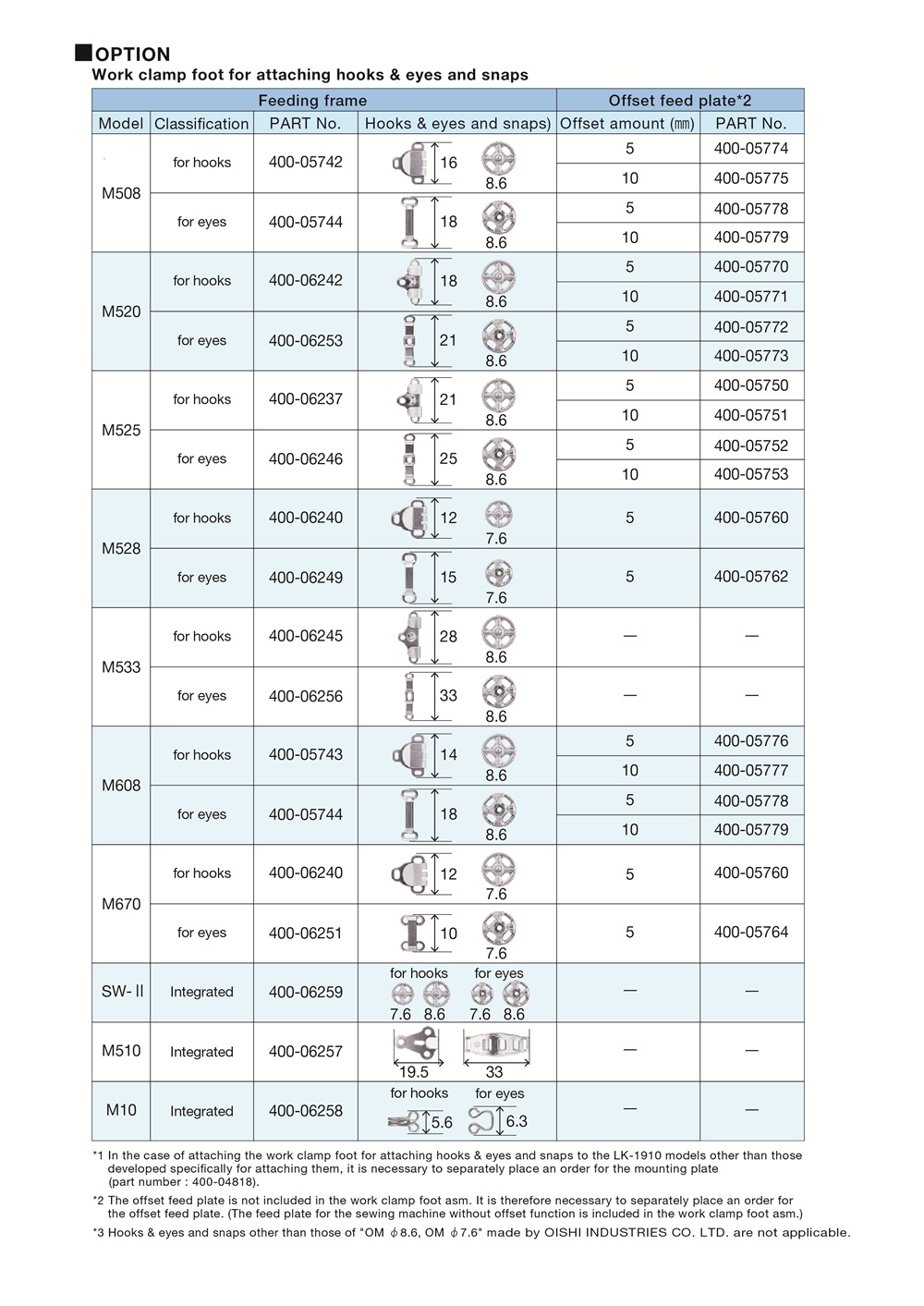

    Select a work clamp foot for hooks & eyes and snaps from the optional parts table. Place an order for the work clamp foot required for attaching them.

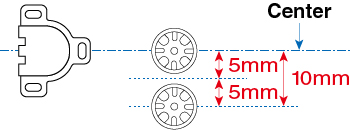

  • Snap position

    The position of snaps can be changed in three stages from the center in a downward direction (maximum distance from the center : 10 mm).
    The snap can be attached at the position that longitudinally deviates from the position of hook & eye attached to the center of waist belt.
    As a result, turning over of the belt can be prevented. (See the figure given below.)

  • Easy operation

    • Since the feed plate of work clamp foot can be replaced by a simple snap-in operation, setup changing can be carried out with ease.
    • Since the side zipper can be set on the sewing machine from the front side of the operator as in the case of rear the zipper, workability is improved.


Model name LK-1910SS5010Z
Application Standard
Max.sewing speed 1,600sti/min*
Stitch length 0.1mm~10mm
Needle bar stroke 41.2mm
Lift of the feeding frame Max. 22mm
Needle DP×17 (#14)
Hook Double-capacity shuttle hook
Wiper Side-weeping type
Feed motion work clamp foot Max.20,000 stitches
Number of patterns that can be input 200 patterns
Memory medium Memory /EEP-ROM
Bobbin thread counter Provided as standard (Up / down method)
Lubrication Centralized oil wick type
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Sewing machine motor AC servomotor (direct-drive system)
Power consumption 3 - phase 200~240V / 380VA
Weight Machine head (include motor) 46kg, control box 5kg

*"sti/min" stands for "Stitches per Minute."

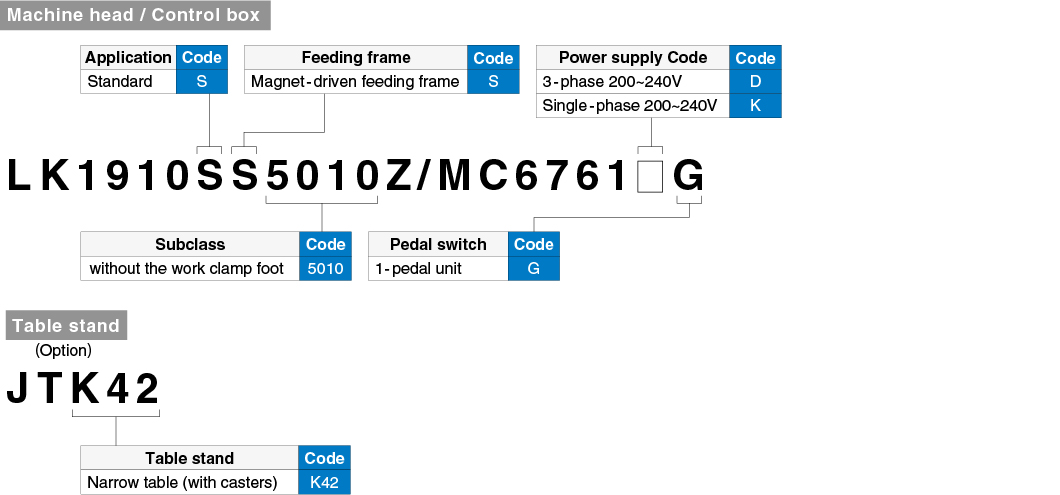

When you place orders
