Semi-dry-head, High-speed, Overlock / Safety Stitch Machine

JUKI's dry-head technology protects the sewing products from oil stains.
This model of sewing machine has been developed while inheriting JUKI's advanced "dry" technology. JUKI is happy to launch the product which responds to customers' concern about oil stains on the fabric.

Product overview

Product features

  • Oil stains on the sewing product are eliminated

    • Oil splashes are substantially reduced to eliminate oil stains on sewing products, thereby upgrading the finished quality.
    • The frequency of stain removal or re-sewing is reduced.
    • The machine achieves a practical maximum sewing speed of 7,000sti/min.

  • Cutting-edge dry technology for achieving a lubrication-free mechanism

    • The needle bar mechanism and upper looper mechanism have been re-designed to require no lubrication.
    • The most-advanced dry technologies, such as the special surface treatment applied to the major drive unit and the grease feeding method, contribute to higher durability. The machine does not splash oil after a long-period of use. The grease filler openings are newly provided for the sewing machine on two locations, i.e., one on the upper looper component and the other on the sewing machine frame, thereby improving maintainability.


Specification

Model name MO-6804D MO-6814D MO-6816D MO-6843D
Stitch type 1-needle overlock 2-needle overlock Safety stitching 3-needle safety stitching
Stitch style in the U.S.A. 504 514 516 -
Max. sewing speed 7,000sti/min*
Stitch length 0.6~3.8 (4.5)mm
Needle gauge (mm) - 2.0mm 3.0, 5.0mm 5.0+2.0mm
Overedging width (mm) 4.0mm 2.0, 3.0, 4.0mm 4.0, 5.0mm 3.0mm
Bottom differential feed ratio Gathering 1:2 (Max. 1:4), Stretching 1:0.7 (Max. 1:0.6)
Needle bar stroke 24.5mm
Inclination angle of the needle 20°
Needle mechanism Lower bushing method
Needle DC×27 (excluding some subclass model)
Max. lift of the presser foot 7mm (excluding some subclass model)
Max. presser foot pressure 63.7N (6.5kgf)
Stitch adjusting method By push-button
Differential-feed adjusting method By lever (with micro-adjustment)
Weight of the machine head 27kg
Lubrication Automatic (The needle bar mechanism and upper looper mechanism do not require lubrication.)
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler Provided as standard
Needle thread heat remover Provided as standard
Micro-lifter Option

*sti/min is the abbreviation for "stitches per minute"

When you place orders

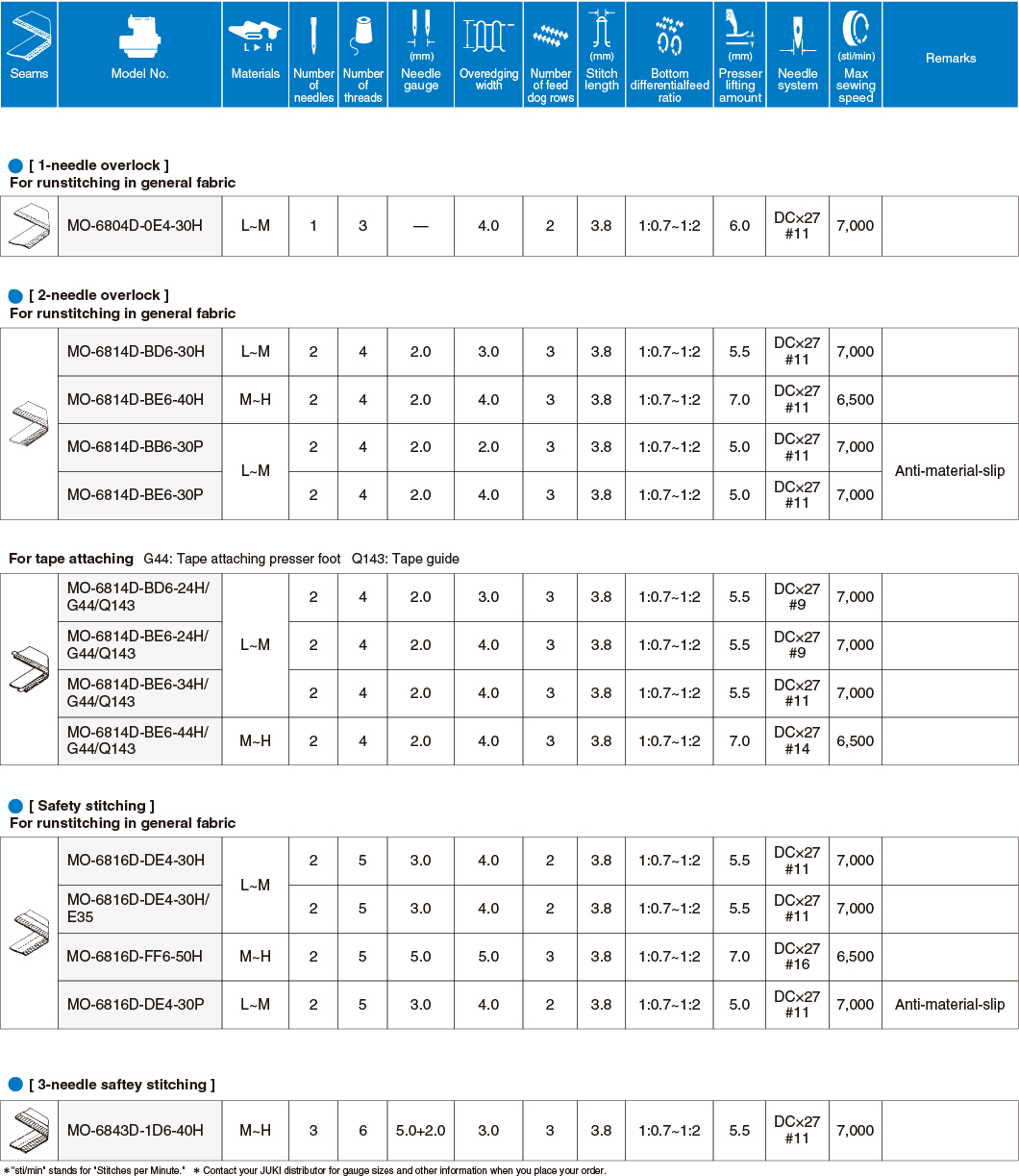

Subclass machine list

Gauge

MO-6804D-0E4-30H
MO-6814D-BD6-30H
MO-6814D-BE6-40H
MO-6814D-BB6-30P
MO-6814D-BE6-30P
MO-6814D-BD6-24H/G44/Q143
MO-6814D-BE6-24H/G44/Q143
MO-6814D-BE6-34H/G44/Q143
MO-6814D-BE6-44H/G44/Q143
MO-6816D-DE4-30H
MO-6816D-DE4-30H/E35
MO-6816D-FF6-50H
MO-6816D-DE4-30P
MO-6843D-1D6-40H

Guage THROAT PLATE FEED DOG FEED DOG FEED DOG PRESSER FOOT UPPER LOOPER NEEDLE CLAMP NEEDLE
Figure
Needle width P/N P/N P/N P/N P/N P/N P/N P/N
- 40159827 40159820 70000782 40159836 40159844 70000798 70000801 DCX27#11
2.0 40159828 40159822 70000782 40159837 40169857 70000238 70000802 DCX27#11
2.0 40159829 40159822 70000782 40159837 40159843 70000799 70000802 DCX27#11
2.0 40164047 40164050 40164051 40164046 40164020 70000238 40164055 DCX27#11
2.0 40164048 40164050 40164051 40164044 40164021 70000238 40164055 DCX27#11
2.0 40159828 40159822 70000782 40159837 40159817 70000238 70000802 DCX27#9
2.0 40159829 40159822 70000782 40159837 40159817 70000238 70000802 DCX27#9
2.0 40159829 40159822 70000782 40159837 40159817 70000238 70000802 DCX27#11
2.0 40159829 40159822 70000782 40159837 40159817 70000799 70000802 DCX27#14
3.0 40169859 40169860 70000782 40169862 40159850 70000238 70000803 DCX27#11
3.0 40169858 40169860 70000782 40169861 40159850 70000238 70000803 DCX27#11
5.0 40159834 40159821 70000782 40159839 40159849 70000799 70000804 DCX27#16
3.0 40164049 40164052 40164052 40164045 40164029 70000238 70000803 DCX27#11
5.0＋2.0 40159833 40159821 70000782 40159839 40159848 70000238 70000806 DCX27#11
