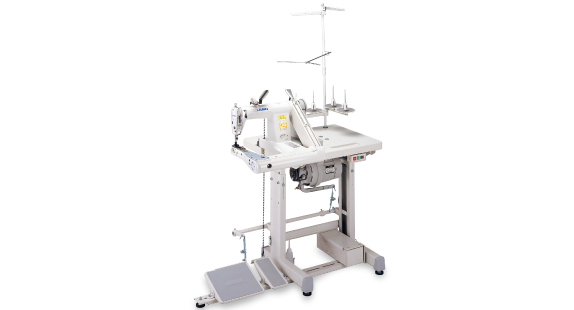

Feed-off-the-arm, Double Chainstitch Machine

The machine achieves beautifully-finished seam while preventing puckering and stitch skipping.

Product features

  • Low-tension stitching ability and improved stitching mechanism prevents puckering

    Both needle thread tension and bobbin thread tension have been decreased after reinvestigation of the double chainstitching mechanism. Furthermore, the stitch dial, gauges and looper have been dramatically improved, thereby forming beautifully finished seams and preventing puckering.

Basic performance

  • The machine prevents stitch skipping even when it runs at high speed, ensuring high-quality products

    With its low-tension sewing capability and the best-suited timing among the needle, looper and feed, the machine forms even stitches with consistency at all times. The machine also prevents stitch skipping at a high speed to help promote high-grade manufacuring.

  • The machine is equipped as standard, with newly developed folders which enable the machine to perform stitching with consistency

    Newly developed folders are equipped as standard for the machine. The folders are designed to match the presser foot and allow overlapping material to be fed smoothly under them. They are easy to use and improve consistency in sewing. Many different kinds of folders are prepared in accordance with the materials to be used, ranging from folders for extra heavy-weight materials to medium-weight materials.

  • The machine has improved ease of operation

    The shape of the bed has been designed to allow the operator to handle it with ease. The push-button type stitch length dial has been introduced to change the feed amount. The timings of the feed driving cam and the looper rocking cam can be separately adjusted. All of these features are designed for easier operation and maintenance.

Specification

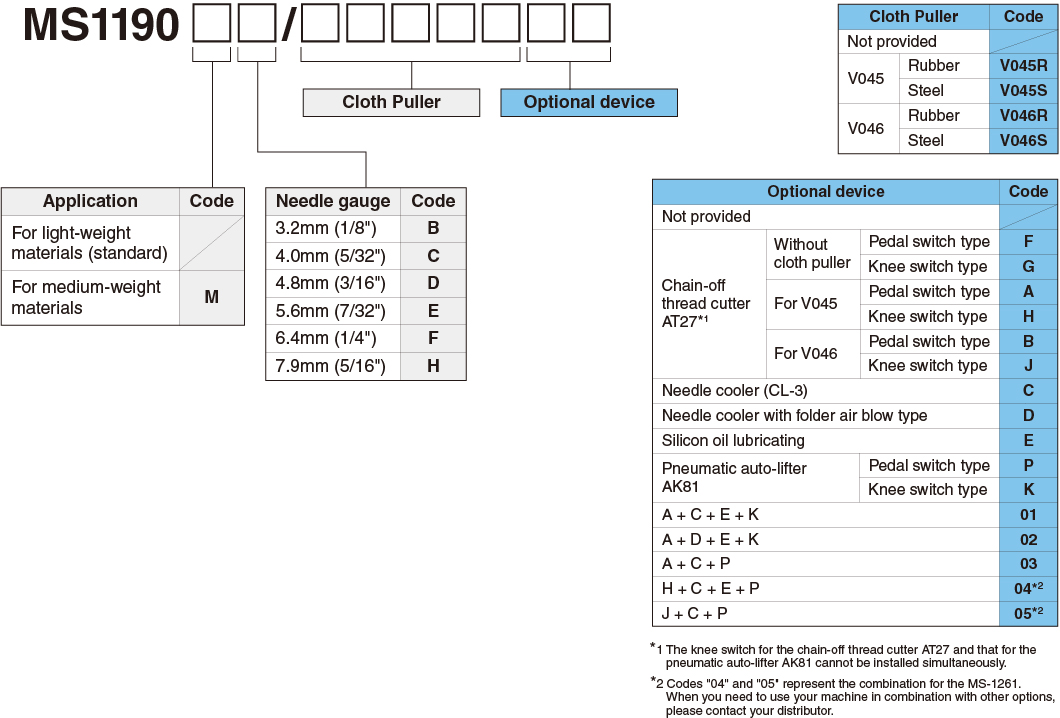

Model name MS-1190 MS-1190M
Application For light-weight materials For medium-weight materials
No. of needle 2
Max. sewing speed 4,000sti/min (normal 3,500sti/min)*
Needle bar stroke 28.0mm
Needle
(at the time of delivery)		 SCHMETZ B-64 (Nm80)
Nm60~Nm90
ORGAN TV×64-NY (#12)
#8~#14		 SCHMETZ B-64 (Nm100)
Nm80~Nm120
ORGAN TV×64-NY (#16)
#12~#19
Needle gauge 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), 5.6mm (7/32"), 6.4mm (1/4")
Stitch length 1.2~3.2mm
Lift of the presser foot 10mm
Thread take-up lever Thread pulling cam type thread take-up lever Needle bar thread take-up lever
Circumference of tube at the needle entry 171mm
Needle guard Longitudinally-fixed needle guard
Stitch adjusting system By push-button (with locking mechanism)
Lubrication Semi-automatic lubrication
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

*"sti/min" stands for "Stitches per Minute."

When you place orders

Gauge

MS-1190

Guage GUAGE SET THROAT PLATE NEEDLE CLAMP ASM. PRESSER FOOT ASM. FEED DOG LOOPER_L LOOPER_R
Figure -
Needle width P/N P/N P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 12923561 12923504 12926051 12927869 12932307 12941555 12940656
C 5/32 4.0 12923660 12923603 12926150 12927968 12932307 12941654 12940755
D 3/16 4.8 12923462 12923405 12925954 12927760 12932307 12941456 12940557
E 7/32 5.6 12923769 12923405 12926259 12928065 12932307 12941753 12940854
F 1/4 6.4 12923868 12923801 12926358 12928164 12932406 12941852 12940953
H 5/16 7.9 - 12924007 12926457 12928354 12932802 12941951 12941050
Remarks With finger guard - - With finger guard - - -



Guage HOLDERS (PAIR)_M295 HOLDERS (PAIR)_M296 HOLDERS (PAIR)_M297 FEED DOGS (PAIR) LOOPER THREAD GUIDE THROAT PLATE FEED DOG
Figure
Needle width P/N P/N P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 MAM2950AAAA MAM2960AAAA MAM2970AAAA 12932653 12943007 12923306 12932208
C 5/32 4.0 MAM2950BBAA MAM2960BBAA MAM2970BBAA 12932653 12943007 - -
D 3/16 4.8 MAM2950CCAA MAM2960CCAA MAM2970CCAA 12932653 12943007 - -
E 7/32 5.6 MAM2950DDAA MAM2960DDAA MAM2970DDAA 12932653 12943007 - -
F 1/4 6.4 MAM2950EEAA MAM2960EEAA MAM2970EEAA 12932752 12943007 - -
H 5/16 7.9 - - MAM2970GGAA - - - -
Remarks For extra light weight materials Light weight
(MS-1190 Provided as standard)		 Medium weight
(MS-1190M Provided as standard)		 Moving needle guide Moving needle guide To support extra thread To support extra thread
Remarks Holders are not included in the gauge set.
H gauge requires a dedicated needle guide 12943957.		 - - - -

MS-1190M

Guage GUAGE SET THROAT PLATE NEEDLE CLAMP ASM. PRESSER FOOT ASM. FEED DOGS (PAIR) LOOPER_L LOOPER_R
Figure -
Needle width P/N P/N P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 12980561 12980504 12926051 12982666 12983508 12941555 12940656
C 5/32 4.0 12980660 12980603 12926150 12982765 12983508 12941654 12940755
D 3/16 4.8 12980462 12980405 12925954 12982567 12983508 12941456 12940557
E 7/32 5.6 12980769 12980702 12926259 12982864 12983508 12941753 12940854
F 1/4 6.4 12980868 12980801 12926358 12982963 12983607 12941852 12940953
Remarks With finger guard - - With finger guard - - -



Guage HOLDERS (PAIR)_M296 HOLDERS (PAIR)_M297 THROAT PLATE FEED DOG
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 MAM2960AAAA MAM2970AAAA 12980900 12983706
C 5/32 4.0 MAM2960BBAA MAM2970BBAA - -
D 3/16 4.8 MAM2960CCAA MAM2970CCAA - -
E 7/32 5.6 MAM2960DDAA MAM2970DDAA - -
F 1/4 6.4 MAM2960EEAA MAM2970EEAA - -
Remarks Light weight
(MS-1190 Provided as standard)		 Medium weight
(MS-1190M Provided as standard)		 To support extra thread To support extra thread
Remarks Holders are not included in the gauge set. - -
