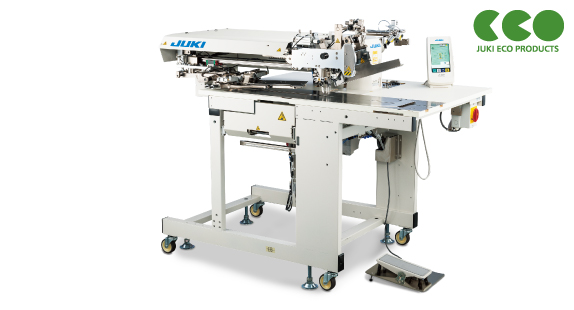

Lockstitch Automatic Welting Machine (for straight pockets without flaps)

APW-895NE provides excellent performance and high productivity in welting, such as slacks and working pants. It comes with a high-speed machine head that is able to perform sewing at 3,000 sti/min at the maximum. Even an inexperienced operator can easy sewing slacks and working pants by just placing the fabric on the welting machine and carrying out the start operation.

Product features

  • Increased productivity

    It comes with a high-speed machine head that is able to perform sewing at 3,000 sti/min at the maximum.

  • Selection of a sewing position by control panel

    APW-895NE is equipped with a function to select a sewing position (from the operator side, from the counter operator side, at the center of the sewing length) when changing the length of the pocket.
    Note that the moving marker (option) is required if you wish to automatically move the marker line.

Basic performance

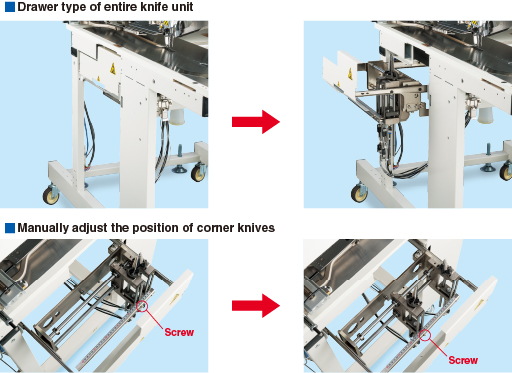

  • Adjustment of the corner knife

    The corner knives, which can be drawn out in the entire knife unit is adopted.
    The knives are easily adjusted and can also be changed with ease. The slim corner knife cover helps reduce material thrusting, thereby achieving material cutting with accuracy. Loosen the screw and manually adjust the position of corner knives.

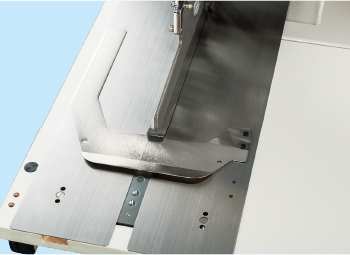

  • Pocket bag presser device

    When performing welting of slacks and working pants, the pocket bag presser device clamps the pocket bag for sewing it simultaneously with welting.

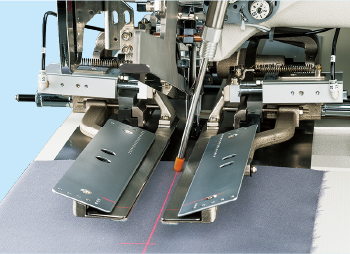

  • Dart stretcher

    The dart stretcher clamps the end of material to smooth out the wrinkles on a garment body, thereby allowing the sewing machine to perform welting with consistency.

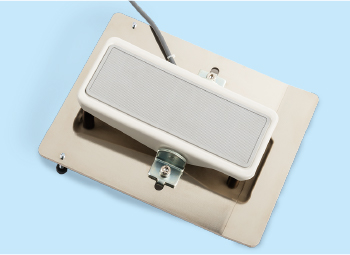

  • Operation pedal

    One-shot operation pedal is adopted to start the sewing machine. The sewing step is moved forward by depressing the front part of pedal, and it is moved backward by depressing the rear part of pedal.

Specification

Model name APW-895NE
Sewing speed Max. 3,000 sti/min*
Kind of welts Parallel double welt, parallel single welt (without flaps)
Stitch length Standard 2.5mm (2.0~3.4mm)
Stitch length
(fastening stitching)		 Condensation stitching : Standard 1.0mm (0.5~1.5mm)
Back-tack stitching : Standard 2.0mm (0.5~3.0mm)
*Changeable between condensation / back tack stitching
Corner-knife cutting adjusting method Mechanical adjustment
Needle DP × 17 Standard #16 (#14~#18), 190R Standard #100 (#100~#110)
Thread SPUN #60 (recommend)
Hook Vertical-axis 1.7-fold capacity hook
Number of independent sewing patterns 99 patterns (999 patterns when a CF memory card is used)
Number of cycle sewing patterns 20 patterns
Number of alternate sewing patterns 20 patterns
Machine head 2-needle, lockstitch machine
Cloth feeding system Driven by a stepping motor
Compressed air /Air consumption 0.5MPa, 40dm³/min (ANR)
Weight 238.5kg
Dimensions 1,095mm(W)×1,500mm(D)×1,200mm(H)



Model name With / Without
(corner knife and center knife)		 Sewing length (welt length) Needle gauge (mm)
APW-895NE (Economy type) Without Min. 18mm~Max. 220mm (settable in increments of 0.1mm) 10, 12
With Min. 35mm
When a solenoid valve is used: Min. 21mm
*For a needle gauge width of 14mm or more, the minimum sewing length is 50mm.

*"sti/min" stands for "Stitches per Minute."

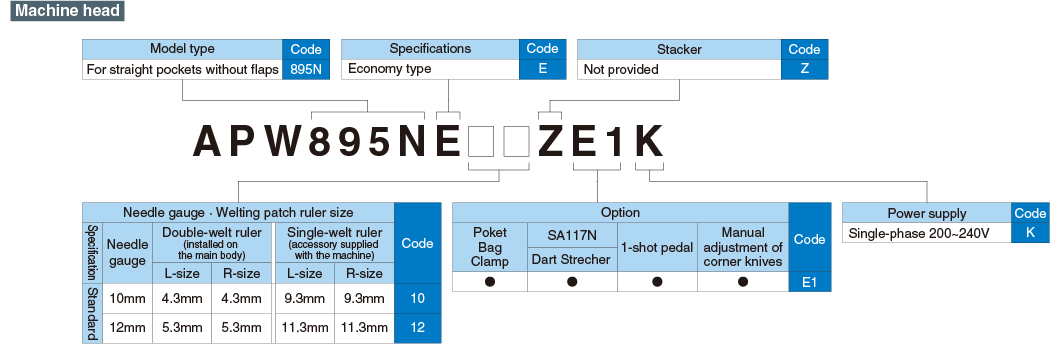

When you place orders

Gauge

APW-895NE

Guage THROAT PLATE NEEDLE CLAMP (FOR DELICERY) NEEDLE CLAMP (FOR REPLACEMENT) NEEDLE THREAD KNIFE NEEDLE THREAD COUNTER KNIFE NEEDLE THREAD CLAMP PLATE
Figure
Needle width P/N P/N P/N P/N P/N P/N
10mm 40046301 40046314 40045696 40023020 16409906 40033815
12mm 40046302 40046315
Guage SEWING TABLE DOUBLE WELT PATCH PLATE
Figure
Needle width P/N P/N L R A
10mm 40026357 40026627 4.3 4.3 18.6
12mm 40035331 5.4 5.4 22.6
Guage COURNER KNIFE
Figure
Needle width P/N Remarks
10mm 16607301
16607400		 A1
A2
12mm
