• High-quality joining of materials

  The sewing machine is applicable to the sewing of materials with different curves and different-in-kind materials.
  It is necessary for the joining of materials with beautiful textures added to carry out sewing of the materials and aligning their ends with notches simultaneously. The AE-200AN allows, through by its unique techniques, inexperienced operators to perform this difficult and skill-requiring process simply by placing the materials on the sewing machine. The sewing machine enables control of shirring and stretching of materials on a section-by-section basis by dividing the sewing length into ten different sections at the maximum. As a result, high-quality and consistent joining of materials is enabled even if the materials have complicated curves.

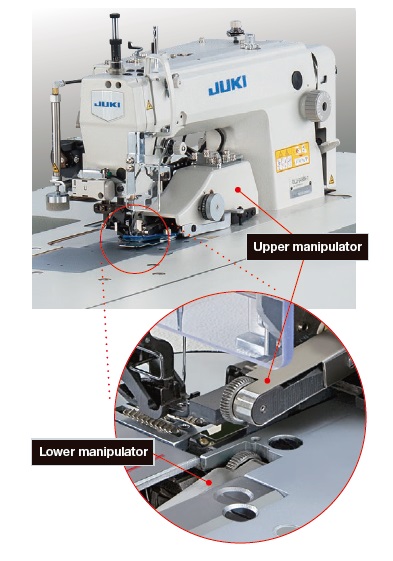

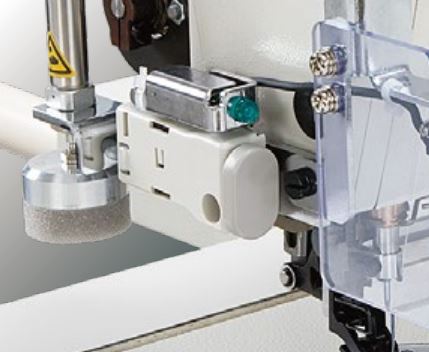

  The manipulator is a JUKI unique device which enables accurate joining of materials by active pressure* and rotation of the rollers.
  *“Active pressure” (AP) is a JUKI unique new function that controls the pressures of the upper and lower manipulators separately according to the material and sewing specifications. (The manipulator pressures can be controlled in 10 different sections in one pattern.)

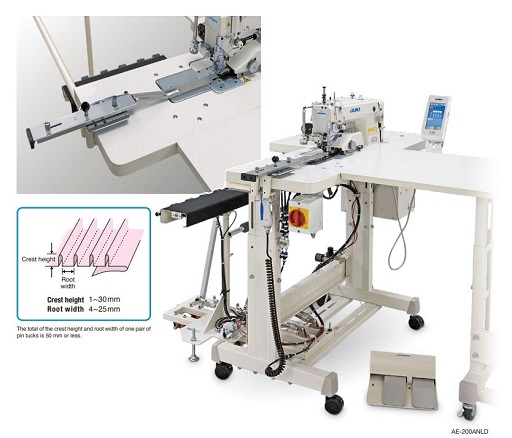

• AE-200ANLD Pin tuck type

  The sewing machine is able to produce beautiful and equally-spaced pin tucks by installing the pin tuck device (40088621).



• Applications

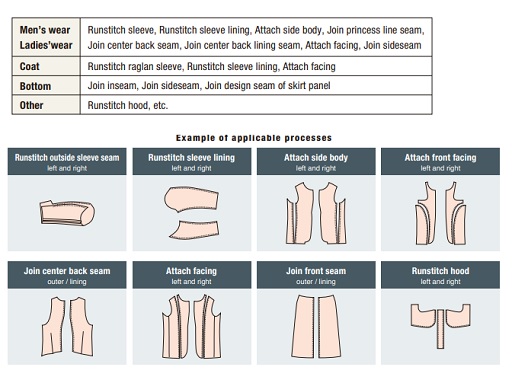

  This sewing machine is applicable to many different processes such as sewing the center of back of men’s and ladies’ jackets and joining the sides of ladies’ skirts.



• Simple operation of the operation panel
  Sewing data can be input and programmed with ease on the operation panel

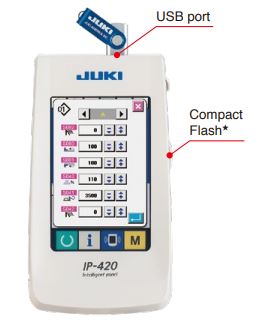

  Large color LCD touch panel IP-420 is adopted.
  Increase in size of the LCD part facilitates selection of a stitch shape and setting of the number of stitches allowing the operator to carry out data setting operation in an intuitive manner. In addition, settings of the pressure and differential feed amount of the manipulator can be confirmed at a glance on the panel. As a result, reduction in the number of man-hours required for changing the pattern is achieved. Furthermore, external storage media such as the USB thumb drive and CompactFlash memory card can be connected to the touch panel to make data transfer between sewing machines easier.

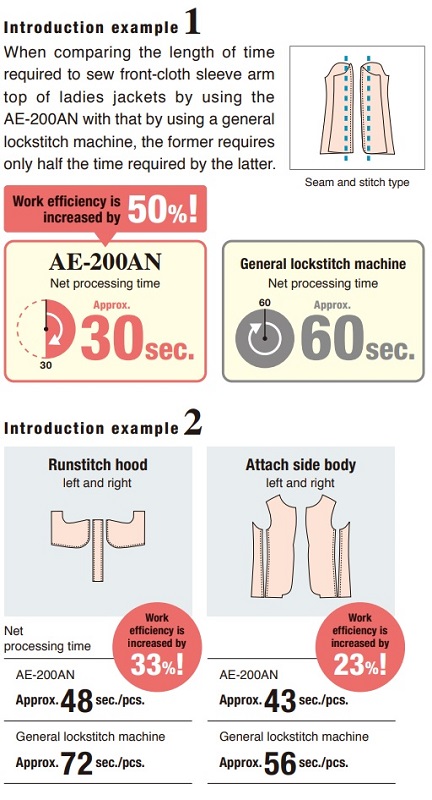

• Productivity is substantially increased!

  The operator is only required to place materials on the sewing machine. The sewing machine automatically and continuously sews the materials while aligning the materials’ ends until the sewing end is reached.This sewing machine allows even inexperienced operators to carry out difficult processes that require skills! The AE-200AN contributes to deskilling.

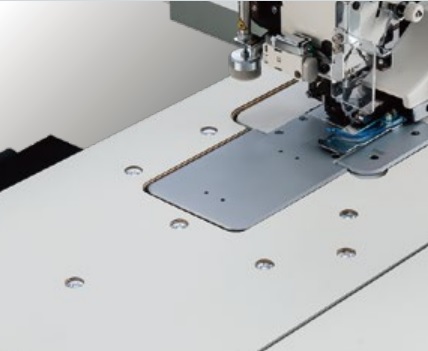

• Air-blow table

  The sewing machine is provided as standard with an air blower which helps feed the material, thereby improving workability.

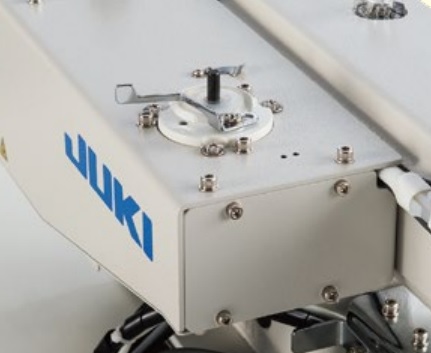

• Bobbin winder

  In order to improve the workability at bobbin thread changing, the bobbin winder is placed on the top of the main motor cover.



• Handy switch

  The start/pause switch is provided close at hand as standard. The switch is located near the position where the operator places the materials on the sewing machine, allowing the operator to carry out sewing in a responsive manner.

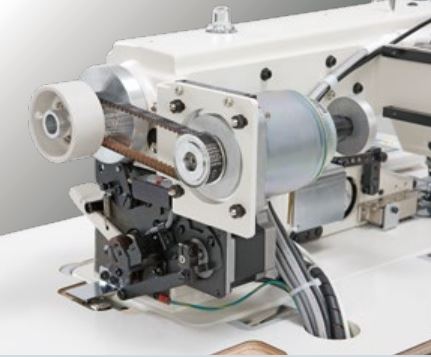

• TBD system*

  A timing belt drive system has been adopted for the AE-200AN. This system allows the sewing machine to start sewing with no loss of the driving force.
  *TBD stands for Timing Belt Drive.

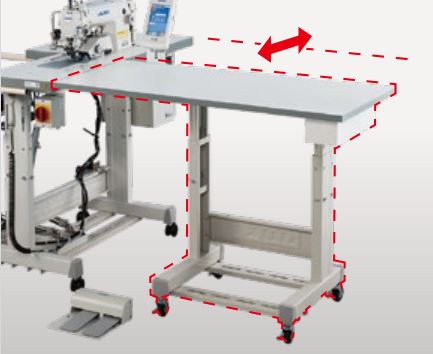

• Sub table

  The sub table that can be fixed to the front of the sewing machine when sewing long materials, or to the rear when sewing small articles allows the operator to handle materials with ease and improves workability.

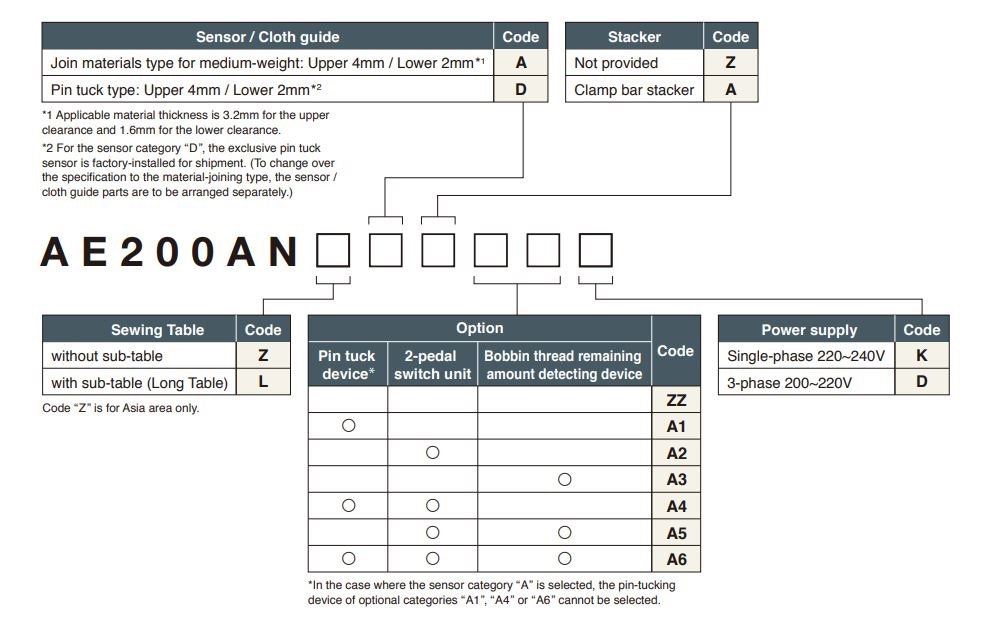

Model name	AE-200ANLA	AE-200ANLD
Application	Join materials type (medium-weight)	Pin tuck type
Machine head	DLU-5498N-7 (exclusive machine head for AE-200AN)
Sewing speed	200~3,500sti/min*
Max. stitch length	4mm
Max. top-feed amount	8mm
Lift of the presser foot	10mm
Needle	DB×1 (#11) #9~#18
Sewing condition	(Seam allowance) 1~30mm (Curve sewing) 100mmR or more (Number of plies) Two or one
Compressed air	0.5MPa
Power requirement Power consumption	Single, 3-phase 200~240V/220W

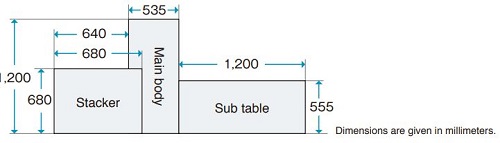

Dimensions
Total weight	135kg (when all options are installed)

*"sti/min" stands for "Stitches per Minute."

機種表示

The choice by ”cloth guide + machine " is needed. Please , choose by "(2)+(1)" or "(3)+(1)" by a sewing condition.

(1)SEWING MACHINE GAUGE LIST

AE200AN SEWIING　MACHINE			FEED DOG	PREVIOUS THROAT PLATE	NEW THROAT PLATE	PRESSER FOOT ASM	UPPER FEED　DOG
Figure
MIDIUM　HEAVY/HEAVY （DELIVERY　SETTING）			22881403 （P=1.50mm）	22881502 (φ=1.9㎜)	40098870 (φ=1.9㎜)	22881304	40088257
LIGHT　CLOTH			22881700 （P=1.15㎜）	22881601 （φ=1.3㎜）	40098871 （φ=1.3㎜）
Scratch prevention （Urethane-gum coated）			-	-	-	-	40088215

(2)STANDARD SHAPE CLOTH GUIDE LIST

AE200AN EDGE　CONTROL			CLOTH　GUIDE	EDGE　SENSOR	MAX-THICKNESS OF CLOTH
Figure
MIDIUM　HEAVY （DELIVERY　SETTING）			40088210	40084100	A：UPPER ：3.2㎜ B：LOWER：1.6㎜
LIGHT CLOTH			40088211	40084102	A：UPPER：1.6㎜ B：LOWER：1.6㎜
LIGHT HEAVY CLOTH			40088212	40084101	A：UPPER：3.2㎜ B：LOWER：3.2㎜

(3)CLOTH GUIDE LIST FOR SMALL PIECE SHAPE

AE200AN EDGE　CONTROL （For Small piece ）			CLOTH　GUIDE	EDGE　SENSOR	MAX-THICKNESS OF CLOTH
Figure
MIDIUM　HEAVY			18076356	40084100	A：UPPER ：3.2㎜ B：LOWER：1.6㎜
LIGHT CLOTH			18076059	40084102	A：UPPER：1.6㎜ B：LOWER：1.6㎜
LIGHT HEAVY CLOTH			18076257	40084101	A：UPPER：3.2㎜ B：LOWER：3.2㎜
