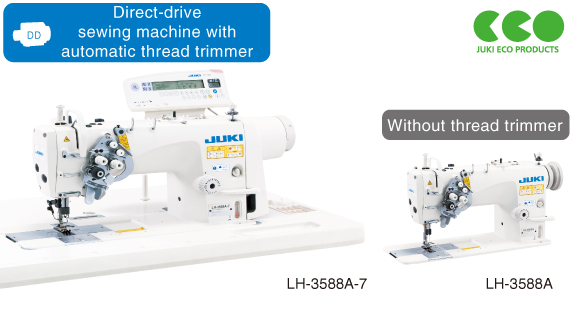

Semi-dry head, 2-needle Lockstitch Machine

The LH-3500A Series has made further progress. This is the cutting-edge model 2-needle sewing machine which comes with substantially enhanced mechanisms such as the direct-drive mechanism, semi-dry head, new thread tension control mechanism and improved oiling system.

Product features

  • Adoption of the direct-drive mechanism enhances energy conservation and workability, and increases the needle's material penetrating force

  • A semi-dry head is now installed in all of the models of the LH-3500A SeriesONLY JUKI

    All models of the LH-3500A Series are provided with a semi-dry head to eliminate staining with oil from the frame (the needle bar part).

  • The "large-hook type" uses a hook 1.8 times larger than standard
    This increase in size reduces the frequency of bobbin-thread changes

    The sewing machine has been designed to eliminate waste time and the operator's stress.

  • Many different models are prepared according to the type of materials

    From a wide variety of models, the best-suited model can be chosen according to your sewing items, ranging from light- to heavy-weight materials.

  • Production support function

    The operation panels CP-18A and CP-180A are provided with a production support function

    The production support function actually consists of three different functions (six different modes), which are the output control function, operation measuring function and bobbin counter function. Each with its own production support effect. An appropriate function (mode) can be selected as required.
    The parameter setting can be done on the panel located on the top of the sewing machine, thereby helping reduce operator fatigue during setup changing.

Basic performance

  • The best-suited thread tension is achieved according to the sewing specificationsUnique to JUKI

    Two different types of thread tension controllers have been developed

    The needle tension controller comes in two different mechanisms according to the type of sewing machine. For the G types, the sewing range has been broadened to produce well-tensed seams even when thick thread is used.

    Wire type and round-hole type needle bar thread guide

    Two different kinds of needle bar thread guides (needle clamps), the wire type and round-hole type, have been developed according to the type of sewing machine. The round-hole type needle bar thread guide has been adopted for the G types which sew materials requiring well-tensed seams. In addition, the G type is provided as standard with the presser foot with guide which is effective for the topstitching process.

  • Highly reliable thread-trimming mechanism

    Our direct-acting thread trimmer mechanism, which spreads thread without fail, has been further improved. The thread trimmer trims the needle thread and bobbin thread without fail even when thick thread is used. In addition, the thread trimmer's bobbin thread retaining force has been increased.

  • Material-friendly micro-lifter mechanism

    The presser foot can be lifted by a minute amount by adjusting the eccentric pin located in the presser lifter lever section. When sewing shaggy and elastic fabrics, the load applied to the material is reduced by slightly lifting the presser foot. Materials are handled more easily and are finished without sacrificing the inherent texture of the material.

  • Two selectable new-method oiling mechanismsUnique to JUKI

    ECO-oli method (circulation type)

    The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank. This method saves the effort of oiling and reduces oil consumption.

    Clean oil method

    The oil dropped from the hook and its surrounding sections into the under-cover is not returned to the oil tank, but only clean oil is supplied to the hook at all times.

    *The oiling method can be changed over as desired.

Specification

Model name LH-3588A-G
Application Jeans and heavy-weight
Organized split needle bar mechanism Provided as standard
Hook Vertical axis 1.8 times large hook
Lubrication Semi-dry / hook section: minute-quantity lubrication (tank system)
Max. sewing speed 3,000sti/min*
Distance from needle to machine arm 120mm (H) × 266mm (W) × 87mm (height of jaw part)
Feed system Needle-feed
Max. stitch length 5mm
Needle bar stroke 33.4mm
Thread take-up Slide type
Tensioner Standard type
Thread winder Built-in the machine head
Lift of the presser foot 7mm (by hand), 13mm (by knee)
Oiling method Eco-oil method (circulation type), Clean oil method
Tank capacity 280cm³
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Needle DP×5 (#21) #16~#23
Outside dimensions of package (mm) LH-3588A: 718mm (H) × 341mm (W) × 744mm (L)
LH-3588A-7: 768mm (H) × 341mm (W) × 744mm (L)
Machine head weight (including the package) LH-3588A: 48kg
LH-3588A-7: 61kg (with AK: 63kg)

*"sti/min" stands for "Stitches per Minute."

When you place orders

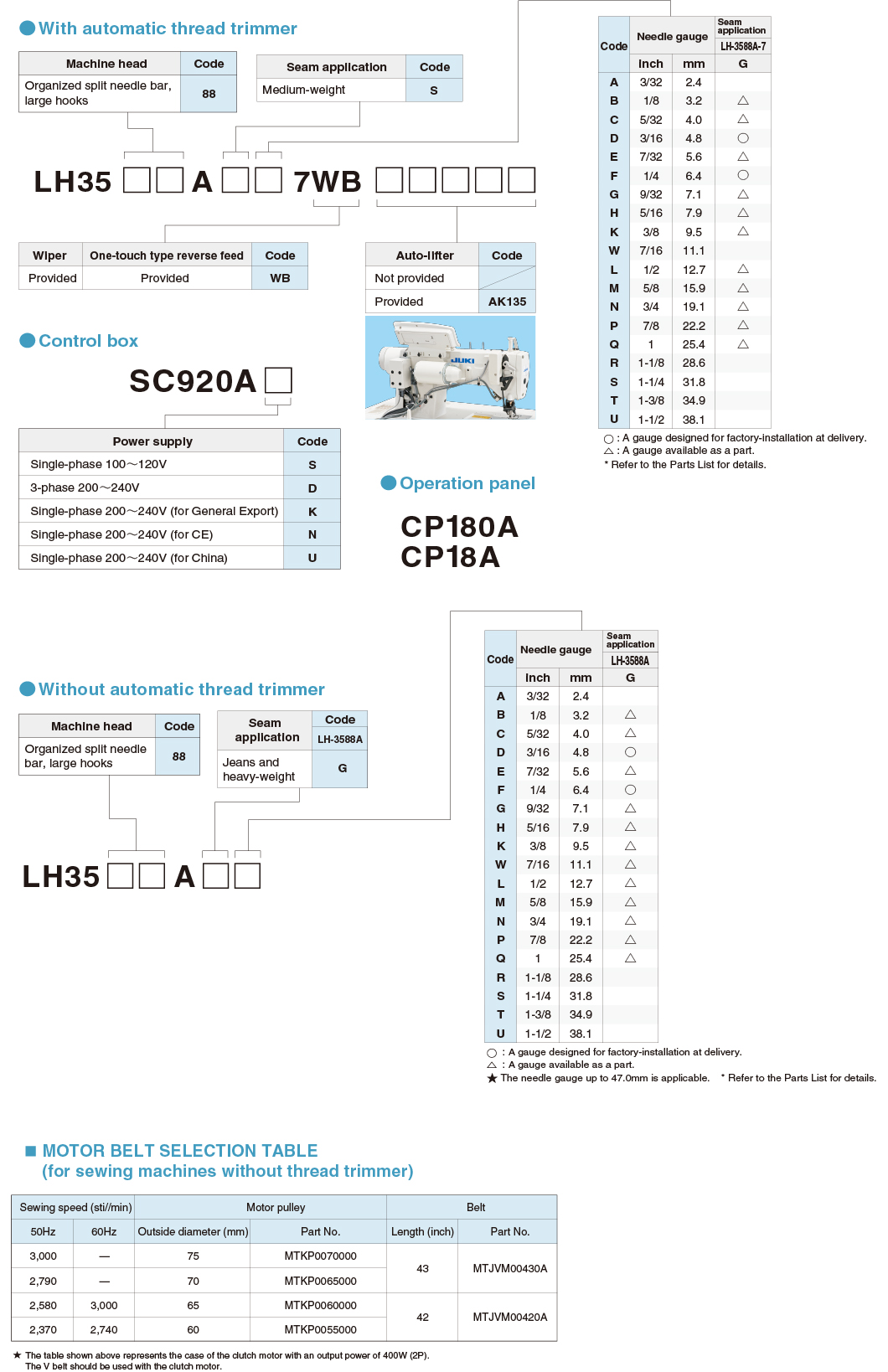

Gauge

LH-3588A-G

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT THROAT PLATE
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 B1402526BA0A B1402526BA0A B1402528BA0A B1402528BA0A -
C 5/32 4.0 B1402526CA0A B1402526CA0A B1402528CA0A B1402528CA0A -
D 3/16 4.8 B1402526DALA B1402526DARA B1402528DALA B1402528DARA 40095288
E 7/32 5.6 10228559 10228567 B1402528EAL B1402528EAR -
F 1/4 6.4 B1402526FALA B1402526FARA B1402528FALA B1402528FARA 40094772
G 9/32 7.1 B1402526GALA B1402526GARA B1402528GAL B1402528GAR -
H 5/16 7.9 B1402526HALA B1402526HARA B1402528HALA B1402528HARA -
K 3/8 9.5 B1402526KALA B1402526KARA B1402528KALA B1402528KARA -
L 1/2 12.7 B1402526LALA B1402526LARA B1402528LAL B1402528LAR -
M 5/8 15.9 10228856 10228864 B1402528MAL B1402528MAR -
N 3/4 19.1 10228955 10228963 B1402528NAL B1402528NAR -
P 7/8 22.2 - - B1402528PAL B1402528PAR -
Q 1 25.4 10229151 10229169 B1402528QAL B1402528QAR -
Remarks Option,For DP17 Option,For DP17 For DP5, Hole type For DP5, Hole type -
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 22601058 22600555 40051633 40042874
C 5/32 4.0 22601058 22600555 40051633 40042874
D 3/16 4.8 22601058 22600555 40051633 40042874
E 7/32 5.6 22601058 22600555 40051633 40042874
F 1/4 6.4 22601058 22600555 40051633 40042874
G 9/32 7.1 22601058 22600555 40051633 40042874
H 5/16 7.9 22601058 22600555 40051633 40042874
K 3/8 9.5 22601058 22600555 40051633 40042874
L 1/2 12.7 22601157 22600654 40045729 40042874
M 5/8 15.9 22601157 22600654 40045729 40042874
N 3/4 19.1 22601157 22600654 40045729 40042874
P 7/8 22.2 22601256 22600753 40045730 40042874
Q 1 25.4 22601256 22600753 40045730 40042874
Remarks - - Option -
Guage FEED DOG FEED DOG PRESSER FOOT ASM._TIP DIVIDED SWIVEL GUIDE PRESSER ASM.
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 - - 40035896 -
C 5/32 4.0 B1613512C0H - 40071909 -
D 3/16 4.8 B1613512D0H 40025801 22816557 40095293
E 7/32 5.6 B1613512E0H 40025802 22816656 -
F 1/4 6.4 B1613512F0H 40025803 22816755 40094776
G 9/32 7.1 B1613512G0H 40025804 22816854 -
H 5/16 7.9 B1613512H0H 40025805 22816953 -
K 3/8 9.5 B1613512K0H 40025806 22817050 -
L 1/2 12.7 B1613512L0H 40025808 22817159 -
M 5/8 15.9 B1613512M0H 40025809 40033945 -
N 3/4 19.1 B1613512N0H 40025810 40033947 -
P 7/8 22.2 B1613512P0H 40025811 40033949 -
Q 1 25.4 B1613512Q0H 40025812 40033951 -
Remarks - Option - -

LH-3588AG-7

Guage NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT THROAT PLATE
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 B1402528BA0A B1402528BA0A B1402526BA0A B1402526BA0A 40035881
C 5/32 4.0 B1402528CA0A B1402528CA0A B1402526CA0A B1402526CA0A 40025485
D 3/16 4.8 B1402528DALA B1402528DARA B1402526DALA B1402526DARA 40095289
E 7/32 5.6 B1402528EAL B1402528EAR 10228559 10228567 40025491
F 1/4 6.4 B1402528FALA B1402528FARA B1402526FALA B1402526FARA 40094773
G 9/32 7.1 B1402528GAL B1402528GAR B1402526GALA B1402526GARA 40025493
H 5/16 7.9 B1402528HALA B1402528HARA B1402526HALA B1402526HARA 40025494
K 3/8 9.5 B1402528KALA B1402528KARA B1402526KALA B1402526KARA 40025495
L 1/2 12.7 B1402528LAL B1402528LAR B1402526LALA B1402526LARA 40025498
M 5/8 15.9 B1402528MAL B1402528MAR 10228856 10228864 40025499
N 3/4 19.1 B1402528NAL B1402528NAR 10228955 10228963 40025500
P 7/8 22.2 B1402528PAL B1402528PAR - - 40025502
Q 1 25.4 B1402528QAL B1402528QAR 10229151 10229169 40025503
Remarks For DP5, Hole type For DP5, Hole type Option,For DP17 Option,For DP17 -
Guage SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._RIGHT SLIDE PLATE ASM._LEFT SLIDE PLATE ASM._FRONT
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40025247 40025235 40051633 40042880
C 5/32 4.0 40025247 40025235 40051633 40042880
D 3/16 4.8 40025247 40025235 40051633 40042880
E 7/32 5.6 40025247 40025235 40051633 40042880
F 1/4 6.4 40025247 40025235 40051633 40042880
G 9/32 7.1 40025247 40025235 40051633 40042880
H 5/16 7.9 40025247 40025235 40051633 40042880
K 3/8 9.5 40025247 40025235 40051633 40042880
L 1/2 12.7 40025248 40025236 40045729 40042880
M 5/8 15.9 40025248 40025236 40045729 40042880
N 3/4 19.1 40025248 40025236 40045729 40042880
P 7/8 22.2 40025249 40025239 40045730 40042880
Q 1 25.4 40025249 40025239 40045730 40042880
Remarks - - Option -
Guage FEED DOG FEED DOG PRESSER FOOT ASM._TIP DIVIDED SWIVEL GUIDE PRESSER ASM.
Figure
Needle width P/N P/N P/N P/N
Code inch mm
B 1/8 3.2 40053705 40053705 40035896 -
C 5/32 4.0 40071911 - 40071909 -
D 3/16 4.8 40035891 40025831 22816557 40095293
E 7/32 5.6 40050009 40025832 22816656 -
F 1/4 6.4 40035892 40025833 22816755 40094776
G 9/32 7.1 40050010 40025834 22816854 -
H 5/16 7.9 40050011 40025835 22816953 -
K 3/8 9.5 40035893 40025836 22817050 -
W 7/16 11.1 40035894 40025838 22817159 -
M 5/8 15.9 40071912 40025839 40033945 -
N 3/4 19.1 40035895 40025840 40033947 -
P 7/8 22.2 40071913 40025841 40033949 -
Q 1 25.4 40071914 40025842 40033951 -
Remarks - Option - -
