Direct-drive, 1-needle, Needle-feed, Lockstitch Machine with Automatic Thread Trimmer
Energy-saving servomotor is installed in the direct-drive style.
With its needle feed mechanism, the machine supports the operator, promotes efficiency in production, and upgrades the quality of finished products.
Product features

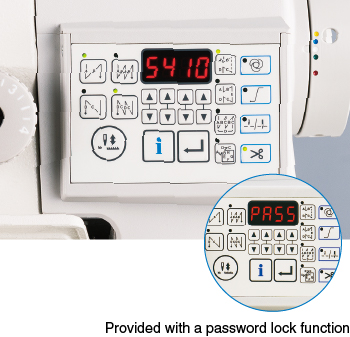

Highly-functional control panel
The control panel which belongs equivalently to the highly-functional CP-180 family is built into the control box. With this panel, various sewing data ranging from the sewing speed to the production support functions can be adjusted.
In addition, the control panel has been newly provided with a password lock function to restrict panel operation. The machine may be used simply by entering any given passcode number.Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn

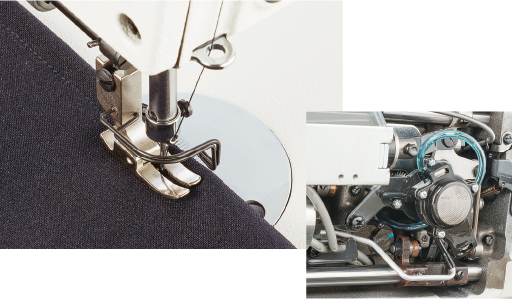

The machine head has been redesigned to improve the performance of each component. Thanks to the machine' s low-tension sewing capability and the adjustment function for the needle feed amount ( ±15%), uneven material feeding and puckering rarely occur, thus enhancing the machine's ability to respond to any change in the material to be sewn.
The optimally balanced design of the machine head and the stronger frame structure significantly reduce machine vibration and noise while the machine is being operated.
Basic performance
Compact and small energy-saving direct-drive motor
Compared with conventional V-belt driven sewing machines, sewing machines driven by direct drive motors save more than 13% of power consumption.
Dramatically advanced availability for material, maintainability is improved.
Specification

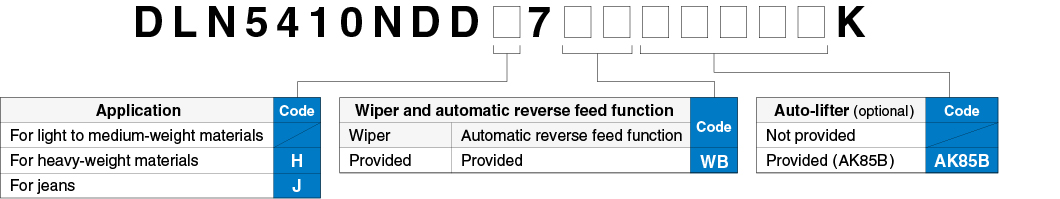

Model name | DLN-5410NDD-7 | DLN-5410NDDH-7 | DLN-5410NDDJ-7 |
---|---|---|---|
Application | Light to medium weight | Heavy weight | Jeans |
Max. sewing speed | 5,000 sti/min* | 4,000 sti/min* | |
Max. stitch length | 4mm | 4.5mm | |
Needle bar stroke | 30.7mm | 33mm | |
Lift of the presser foot | By hand: 5.5mm, By knee: 13mm | ||
Needle | DB × 1 (#14) # 9~#18 | DB × 1 (#21) # 20~#23 | |
Hook | Automatic-lubricating full-rotary hook | Automatic-lubricating double capacity full-rotary hook | |
Lubrication | Automatic | ||
Lubricating oil | JUKI Machine Oil 7 (equivalent to ISO VG7) | ||
Automatic reverse feed function | Provided as standard | ||
Power requirement | Single-phase 220~240V | ||
Power consumption | 390VA | ||
Weight of machine head | 36kg (include motor, control box, cover) |
*sti/min is the abbreviation for "stitches per minute"
