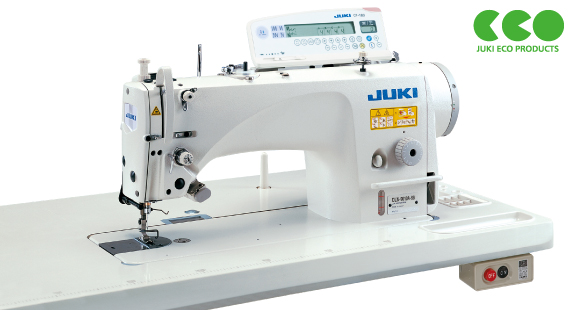

Direct-drive, High-speed, 1-needle, Needle-feed, Lockstitch Machine with Automatic Thread Trimmer

The needle feed mechanism, which is widely recognized as offering outstanding efficiency of feed and effectively preventing uneven material feed, responds to a wide range of applications such as the sewing of outerwear, runstitching of men's shirts, etc. and the attaching of various parts to garment bodies.

Product features

  • The machine is installed with a highly reliable needle feed mechanism

    • Thanks to the needle-feed mechanism which offers excellent efficiency of feed, the machine ensures accurate stitch pitches (stitch length) as well as preventing slippage of the upper cloth.
      The bottom feed's locus has been improved to match the needle feed motion, thus the machine produces beautiful seams without stitch gathering, even when it is used for sewing slippery and difficult-to-feed material or for handling a difficult process.
    • The needle feed mechanism is a so-called "dry type", which does not require oiling. With this mechanism, a highly reliable machine structure, free from oil leakage troubles, has been achieved.
      The frame, which requires only a minute quantity of lubricating oil, is structured to eliminate oil leakage.
    • The machine can be easily changed over from a needle feed mechanism to a bottom feed mechanism easily, through a simple adjustment and gauge replacement. It is a useful feature for those users who also want to use the machine simply as a regular bottom feed type machine in accordance with applications and processes.

  • The machine no longer uses an oil pan
    With this oil pan-less structure, the machine helps create a clean work environment

    • The machine has been configured to eliminate the oil pan, and supplies a minute quantity of lubricating oil to the hook and needle bar, thereby contributing to the reation of a clean work environment.
    • The machine saves you the time and trouble of removing the knee-lifter and cover. This means that the machine head can be tilted for cleaning and maintenance without the inconvenience of removing the knee-lifter and cover.
    • Even if you tilt the machine head while the power is still ON, the safety switch will disable the machine. This means the machine won't start running when the head is tilted even if you press the foot pedal.

  • The machine is provided with various easy-to-operate functions for increased operability

  • The new model control box, which energy-saving mode is provided (SC-920A)

    The new model control box SC-920A, which consists of an energy-saving mode, has been developed. This control box is the first one which provides an energy-saving mode for the sewing machine. The power consumption during standby, when the motor is at rest, is reduced by approximately 20%.

  • The operation panel can be selected according to the process (CP-18A,CP-180A)

    Two different operation panels, the CP-18A and CP-180A are applicable to the DLN-9010A. Both operation panels are provided with the production support function.
    The production support function actually consists of three different functions (six different modes)

Specification

Model name DLN-9010A-SS DLN-9010A-SH
Application For light- to medium-weight materials For heavy weight materials
Max. sewing speed 5,000sti/min* 4,000sti/min*
Max. stitch length 4.5mm*1
Needle bar stroke 33mm
Lift of the presser foot By hand: 5.5mm, By knee: 15mm(max.), Auto: 10mm
Needle (at the time of delivery) DB×1 (#11) #9~#18
For JE:134 (Nm90) Nm65~Nm110
DB×1 (#21) #20~#23
For JE:134 (Nm130) Nm120~Nm160
Hook Automatic-lubricating full-rotary hook
Lubrication Minute-quantity lubrication to needle bar and hook
Lubricating oil JUKI New Defrix Oil NO.1 (equivalent to ISO VG7)
Distance from needle to machine arm 300mm
Size of bed 517mm×178mm
Bobbin thread winder Built-in the machine head
Micro-lifter screw Provided as standard
Machine head drive Compact AC servomotor that is directly connected to the main shaft (direct-drive system)
Automatic reverse feed function Provided as standard (built-in solenoid type)
Power requirement/Power consumption Single-phase 100~120V, 200~240V, 3-phase 200~240V / 310VA
Total weight 83.5kg

*1The maximum sewing speed is 4,000 sti/min or less in cases where the maximum stitch length is 3.5 mm or more.
*sti/min stands for Stitches per Minute.

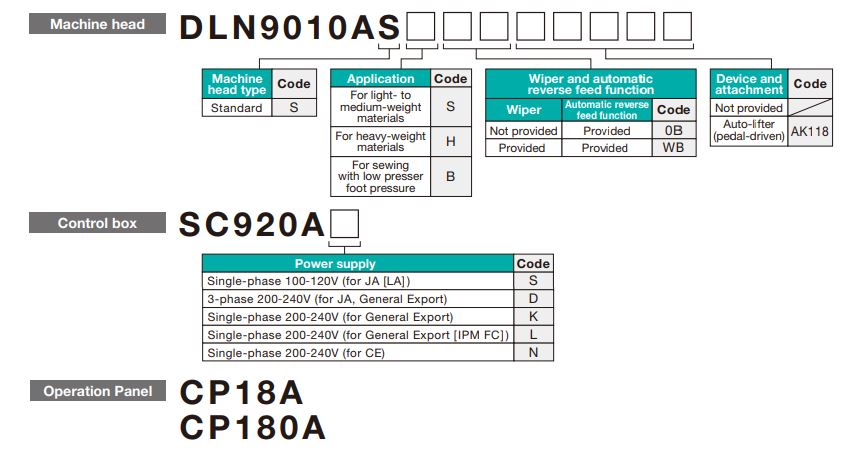

When you place orders

Gauge

DLN-9010A-SS

Guage FEED DOG THROAT PLATE PRESSER FOOT Features in sewing
Figure
Application P/N Needle hole Pitch Remarks P/N No. of
grooves
Thickness P/N
Standard
For light to midium weight matelials
D1609415B00 1.9 1.15   11300308 3 3.2 D1524415BAA Suited to the sewing of the material which is likely to cause slip-off of needle thread and stitch skipping.
Pressure of the presser foot: Standard value.
Needle: Standarad (#12~#18)
Throat plate (11300308) provides higher durability than throat plate (B1109041F0B).
For light to midium weight matelials B1609041B00 1.9 1.15   B1109041B00 2 3.2 B1524041A00
(B1524041EA0)
(B15244120A0)
(D1524415BAA)
Suited to the sewing of curves and sharp curves. Widely used for overedging.
Pressure of the presser foot: Standard value.
Needle: Standarad (#12~#18)
For midium weight matelials B1609041C00 1.9 1.25 Provided with a thread path groove B1109041C00 1 3.2 B15244120A0
(D1524415BAA)
Suited to the sewing of sharp curves. Suited to the sewing which requires to be carried out using a binder in combmation wlth the gauge set. Widely used for overedging.
Pressure of the presser foot: Standard value, or a slightly lower value.
Needle: Standarad (#12~#18)
For light to midium weight matelials B1609041D00 1.9 1.15 Provided with a thread path groove B1109041D00 1 3.2 B15244120A0
(D1524415BAA)
When compared with B1609041C00, straight-feeding capability is improved. Suited to the sewlng of comparatlvely resilient materials. Widely used for overedging.
Pressure of the presser foot: Standard value, or a slightly lower value.
Needle: Standarad (#12~#18)
For light to midium weight matelials B1609041F00 1.9 1.15 Provided with a thread path groove B1109041F00 3 3.2 B15244120A0
(D1524415BAA)
Pressure of the presser foot: Standard value
Needle: Standard (#12~#18)

DLN-9010A-SH

Guage FEED DOG THROAT PLATE PRESSER FOOT Features in sewing
Figure
Application P/N Needle hole Pitch Remarks P/N No. of
grooves
Thickness P/N
Standard For heavy weight materials 11322203 2.4 1.7 Provided with a thread path groove B1109415H0B 3 3.2 B152404EA0 Pressure of the presser foot: Slightly increase.
Needle: Thick (#19~#23)
For heavy weight materials 11321908 2*2.9 2 A slot shaped needle hole B1109415H0B 3 3.2 B1524041EA0 Pressure of the presser foot: Slightly increase.
Needle: Thick (#19~#23)
For extra heavy weight materials 11322005 2.4*3.4 1.7 Provided with a thread path groove A slot shaped needle hole B1109415H0B 3 3.2 B1524041EA0 Effective when sewing the material which needs highlu tensed seams.
Pressure of the presser foot: Slightly increase.
Needle: Thick (#19~#23)
For heavy weight materials 11322104 2 1.7   B1109415H0B 3 3.2 B1524041EA0 Pressure of the presser foot: Slightly increase.
Needle: Thick (#19~#23)
For extra heavy weight materials D1609415B0H 2.4*3.4 1.7 Provided with a thread path groove A slot shaped needle hole B1109415H0B 3 3.2 B1524041EA0 Effective when sewing the material which needs highlu tensed seams.
Pressure of the presser foot: Slightly increase.
Needle: Thick (#19~#23)
For heavy weight materials D1609415D0H 2*2.9 2 A slot shaped needle hole D1109415D0H 3 3.2 B1524041EA0 Pressure of the presser foot: Slightly increase.
Needle: Thick (#19~#23)
