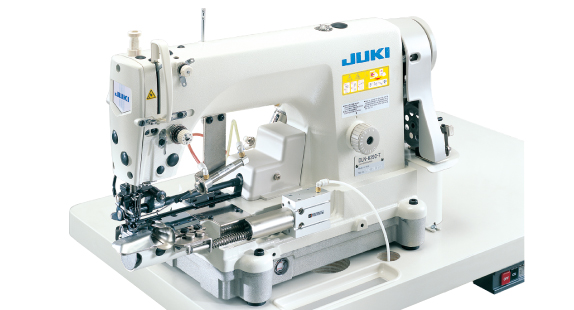

High-speed, Cylinder-bed, 1-needle, Needle-feed Lockstitch Machine with Large Hook

The last word in cylinder-bed lockstitch machines, intended for bottom hemming processes for jeans, casual pants and work uniforms has been launched.

Product features

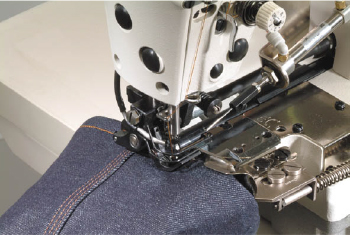

  • The machine offers excellent seam quality and sewing capabilities

    • The needle bar stroke is as high as 35mm. This offers increased penetration of the needle into the material to improve adaptability to heavy-weight materials.
    • The machine demonstrates excellent sewing capabilities, when sewing heavy-weight denim or multi-layered portions, that free it of sewing troubles such as stitch gathering, stitch skipping and needle breakage.
    • The machine is able to sew material with a low presser foot pressure while preventing the material from flapping.
      As a result, the material can be sewn free of puckering.
    • The top- and bottom-roller style feed mechanism forms seams with increased consistency to achieve improved hemming quality while reducing uneven hems.

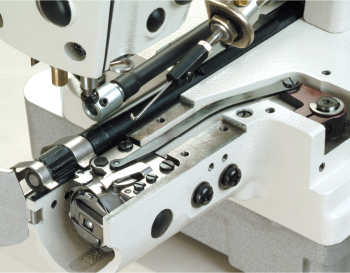

  • Highly consistent and reliable thread trimmer mechanism

    • The machine employs a highly reliable horizonta thread trimming mechanism which cuts thick thread without fail.
    • The entire knife unit can be installed/removed.
    • The moving knife position can be easily adjusted.
    • The knife unit is of a bed device type. This means that adjustment of the knife unit is not required after removing the throat plate.
    • Every time that operation of the thread trimmer occurs, the air blower keeps the knife clean by blowing off thread chips from the blade, ensuring the reliable operation of the thread trimmer.

Basic performance

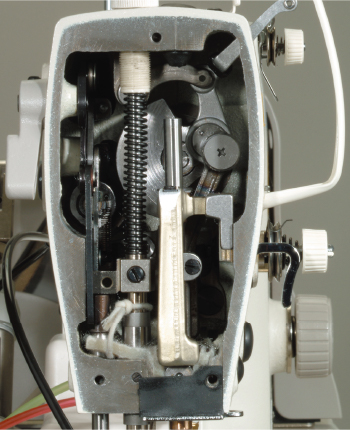

  • The lubrication mechanism effectively reduces oil stains on the material

    • The machine has adopted a forced circulation mechanism in consideration of reliable oiling and oil leakage prevention.
    • The frame and cylinder-bed sections are provided with a circulation feature to prevent oil leakage. In addition, to ensure reliable operation, a gasket is fitted inside the frame, preventing any leakage of oil from the needle bar.
    • The machine comes with a newly designed needle bar sliding mechanism that is highly durable and free of play.



Model name DLN-6390 DLN-6390-7
Application Bottom-folding and hemming (lockstitch type)
Max. sewing speed 5,000sit/min*
Stitch length Standard gears: 3.2mm (2.8mm) / Supplied gears: 2.3mm, 3.6mm /
Optional gears: 2.1mm, 2.5mm, 4.2mm (utilized by changing pitch conversion gears)
Needle SCHMETS UY180GVS Nm140
range of use: Nm90~Nm150 (equivalent to #14~#22.5)
Needle bar stroke 35mm
Hook Automatic-lubrication type exclusive full-rotary 1.7-fold hook
Lift of the presser foot Max. 14mm
Feed system Top- and bottom-roller style
Binder open/close type Manual type Driven by air cylinder
Compressed air and
air consumption
- 0.5MPa (0.5kgf/cm2), 10Nl /min
Lubrication JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Cylinder-bed diameter 180mm
Weight of the machine head 34.5kg 36.5kg

*“sit/min”stands for “Stitches per Minute”

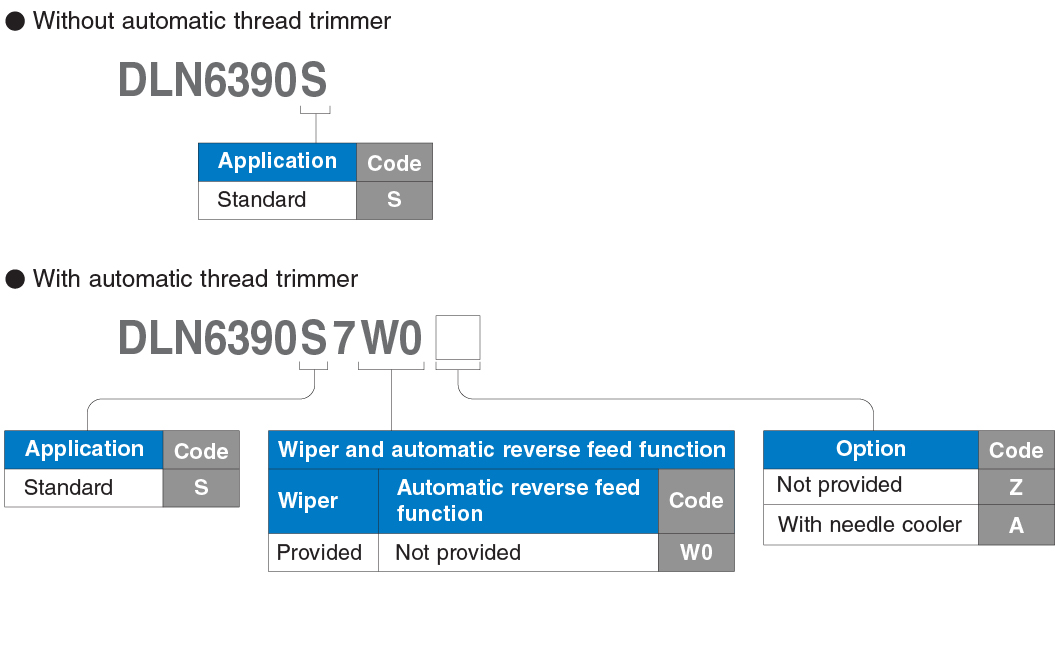

When you place orders
