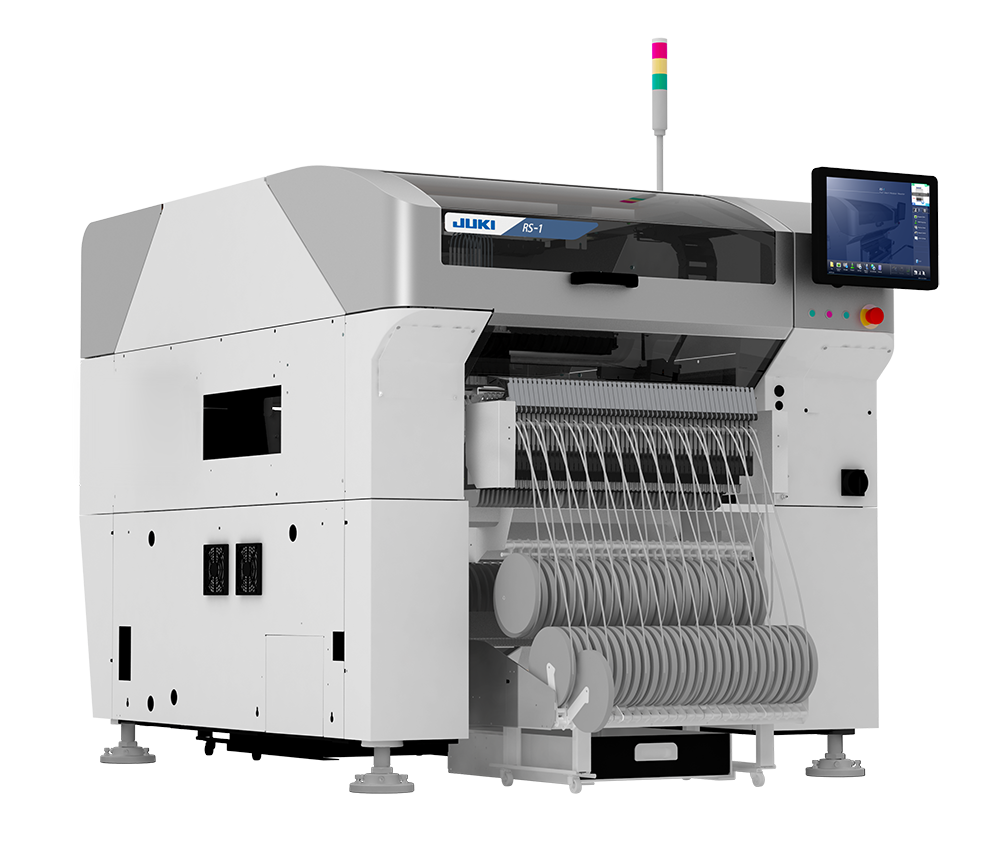

Fast Smart Modular Mounter
RS-1XL
As a Chip Mounter, as a Flexible Mounter, as a Balancer. Any item can be produced for smart production.
The new mounter will change the conventional common sense of the ever innovative.
Features
- Class leading speed, up to 42,000 cph
- 0201* ~ 74mm×74mm / 50mm×150mm
- Wide component range
- Optimum line balance and highest throughput
- Newly developed “Takumi Head” with changing recognition sensor height
- JUKI’s laser centering technology is fast, accurate and reliable for a wide range of parts.
*Please contact for details.
Specification
| Fast Smart Modular Mounter | ||||||
|---|---|---|---|---|---|---|
| Model | RS-1XL | |||||
| Board size | 50×50㎜~650×560㎜ | |||||
| Component height | 25㎜ | |||||
| Component size | 0201*1～□74㎜/150×50㎜ | |||||
| Placement speed | Optimum | 42,000CPH | ||||
| IPC9850 | 29,000CPH | |||||
| Placement accuracy | ±35μｍ (Cpk≧1) | |||||
| Feeder inputs | Max. 112*2 | |||||
| Power supply | AC200 ～ 415V*3 .3-phases | |||||
| Apparent power | 22 kVA | |||||
| Operating air pressure | 0.5±0.05 Mpa | |||||
| Air consumption | 200L / min | |||||
| Machine dimensions (W×D×H)*4 | 2,109×2,000×1,440 ㎜ | |||||
| Body weight | 1,850 kg | |||||
*1 For metric 0201 compliance please contact us.
*2 Using RF (RF08AS) feeders.
*3 A transformer unit (option) is necessary except AC 200 V.
*4 D dimension does not include the front operation monitor. H dimension does not include signal tower.
*Please contact for details.
