Features
Low impact placement for flexible circuits
Low impact feature allows separately adjusting the down and up speed of the nozzle during placement. This minimizes the load on the part and on the board during placement. This is optimal for placing very small parts that require a lot of accuracy.
Optimal for LED placement

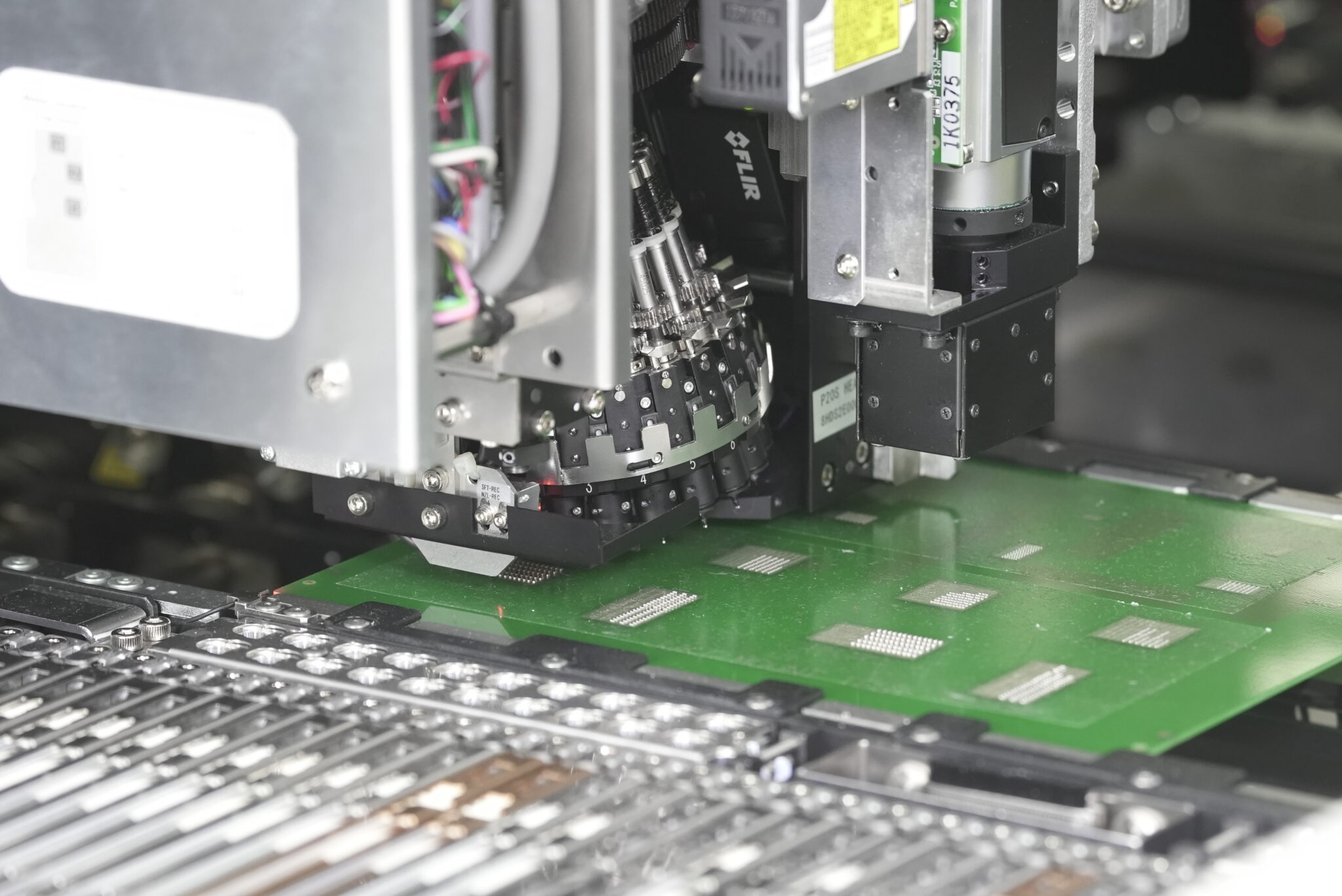

With Planet P20S head, stable recognition can be achieved even with continuous-mounting, enabling high-quality mounting for producing LED indicator lamps.
State-of-the-art centering and inspection vision system

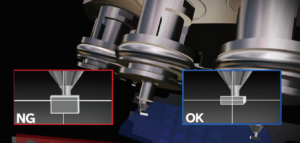

The vision system detects presence and absensce, inverted chips, and tombstoning. It also automatically corrects the pick position of every part, increasing the pick rate. This system makes it ideal for placing very small parts.
-
-
inverted chips
-
-
tombstoning
New high accuracy camera for inspection and centering
New coaxial lighting technology gets clearer images and better, more accurate inspection data.
-
-
0402 chip (metric)
-
-
0603 chip (metric)
-
-
Small BGA
-
-
Glass Jig
