Overlock / Safety Stitch Machine for Extra Heavy-weight Materials

An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials.
It demonstrates an excellent performance ability in the sewing of various kinds of heavy-weight materials such as jeans, raised fabric materials, mats and carpets.

Product features

  • For the sewing of extra heavy-weight materials

    The machine securely clamps the material at the beginning of sewing as well as smoothly sewing multi-layered parts of the material to facilitate the sewing of extra heavy-weight materials.

  • Variable Top-feed (MO-6900J)

    The MO-6900J Series comes with a newly-developed feed mechanism that moves the top and bottom feeds separately. With its improved feeding capacity and stronger cloth-biting force, the feed mechanism prevents uneven material feed when sewing extra heavy-weight materials.

  • Excellent mechanism to durability

    The machine incorporates mechanisms that are both durable and reliable, such as the needle bar mechanism, utilyzing the upper and lower bushings, a cartridge type oil filter and cooling fan.

  • The micro-lifter

    The machine is equipped as standard with a micro-lifter that helps reduce operator fatigue. The micro-lifter is designed to achieve optimum balance, not only reducing noise and vibration but also ensuring comfortable operation.

  • Needle thread heat remover and needle cooler

    Needle thread heat remover and needle cooler prevent stitching troubles during times of high-speed sewing, thereby contributing to upgraded seam quality.

  • Mechanism with excellent operability

    The machine comes standard with various adjusting mechanisms, such as a micro-adjusting mechanism, all of which can be easily adjusted to enable the machine to perform sewing under the best-suited conditions for any kind of material.

Specification

MO-6900G Series

Model name MO-6904G MO-6914G MO-6916G
Stitch type 1-needle overlock 2-needle overlock Safety stitching
Stitch style in the U.S.A. 504 514 516
Max. sewing speed 6,000sti/min*
Stitch length 2.5~5mm 2.5~4mm 2.5~5mm
Needle gauge (mm) - 2.6 4.8
Overedging width (mm) 4.8, 10.0, 18.0 6.4 4.8, 6.4
Differential feed ratio For gathering 1:1.75 (max. 1:3.8)
For stretching 1:0.7 (max. 1:0.6)		 For gathering 1:2 (max. 1:3.8)
For stretching 1:0.8 (max. 1:0.6)		 For gathering 1:1.75 (max. 1:3.8)
For stretching 1:0.7 (max. 1:0.6)
Needle bar stroke 28.8mm
Inclination angle of the needle 20°
Needle bar bushing Upper/lower bushing method
Needle DO×5 (excluding some subclass model)
Max. lift of the presser foot 8mm (excluding some subclass model)
Max. presser foot pressure 63.7N (6.5kg)
Stitch adjusting method By push-button
Differential-feed adjusting method By lever (with micro-adjustment)
Weight of the machine head 28kg
Lubrication Automatic
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler Provided as standard (excluding some subclass model)
Needle thread heat remover Provided as standard
Micro-lifter Provided as standard

MO-6900J Series

Model name MO-6904J MO-6914J MO-6916J
Stitch type 1-needle overlock 2-needle overlock Safety stitching
Stitch style in the U.S.A. 504 514 516
Max. sewing speed 6,000sti/min*
Stitch length 2.5~5mm 2.5~4mm 2.5~5mm
Needle gauge (mm) - 2.6 4.8
Overedging width (mm) 4.8 6.4 4.8, 6.4
Bottom differential feed ratio For gathering 1:1.75 (max. 1:3.8)
For stretching 1:0.7 (max. 1:0.6)		 For gathering 1:2 (max. 1:3.8)
For stretching 1:0.8 (max. 1:0.6)		 For gathering 1:1.75 (max. 1:3.8)
For stretching 1:0.7 (max. 1:0.6)
Needle bar stroke 28.8mm
Inclination angle of the needle 20°
Needle bar bushing Upper/lower bushing method
Needle DO×5 (excluding some subclass model)
Vertical stroke of top feed dog 8.5mm
Longitudinal stroke of top feed dog 2.7~7mm (it differs with the machine's specifications.)
Max. lift of the presser foot 8mm (excluding some subclass model)
Max. presser foot pressure 63.7N (6.5kg)
Stitch adjusting method By push-button
Bottom differential feed adjusting method By lever (with micro-adjustment)
Top differential feed adjusting method By lever (with micro-adjustment)
Weight of the machine head 29kg
Lubrication Automatic
Lubricating oil JUKI Machine Oil 18 (equivalent to ISO VG18)
Needle cooler Provided as standard
Needle thread heat remover Provided as standard
Micro-lifter Provided as standard

*“sti/min” stands for “Stitches per Minute.”

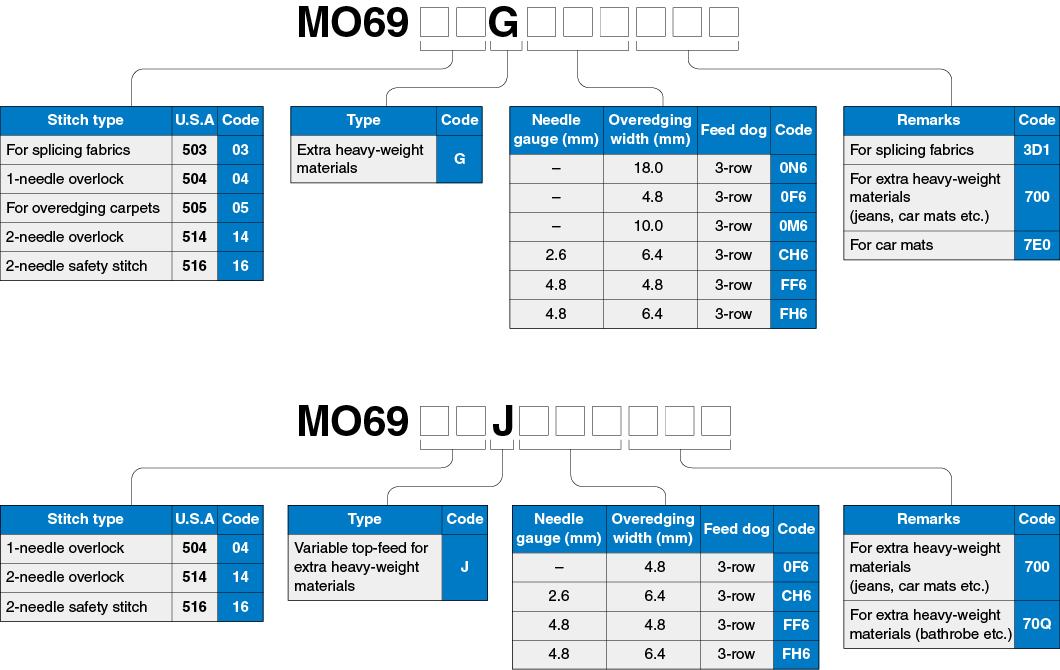

When you place orders

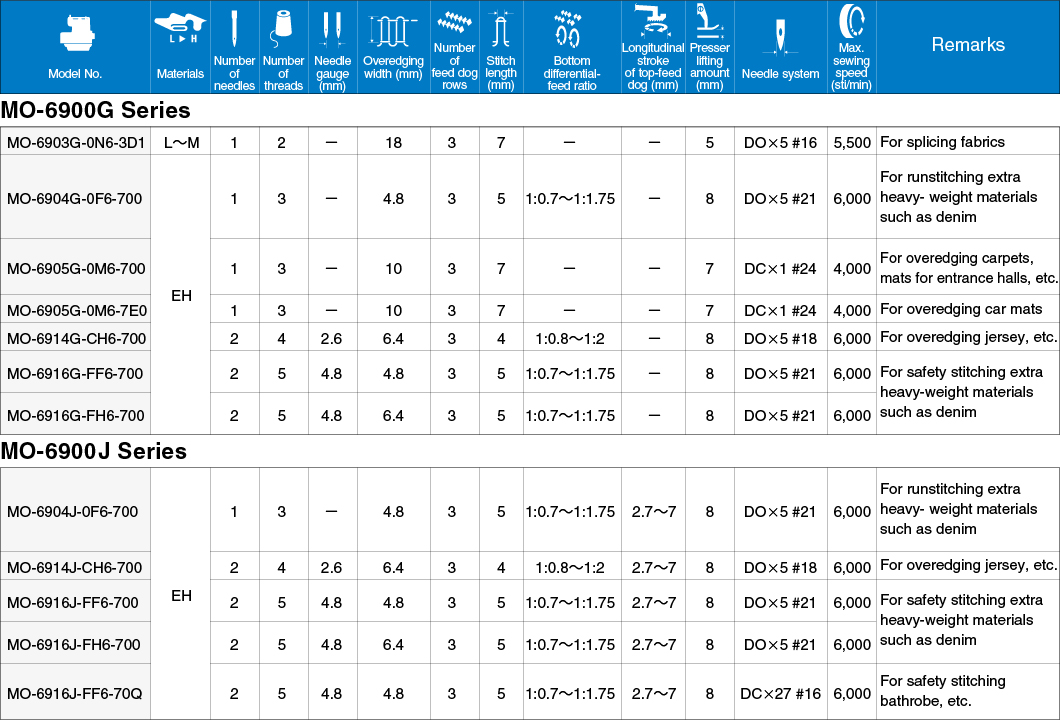

Subclass machine list
