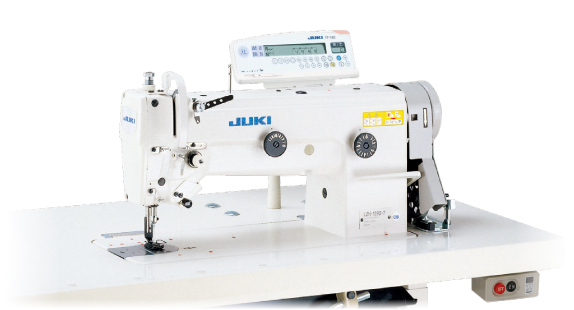

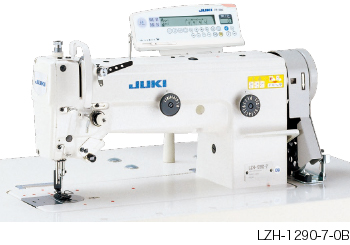

1-needle, Lockstitch, Zigzag Stitching Machine with Large Hook

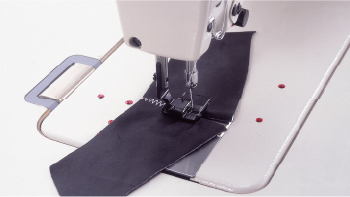

The machine is optimally suited for the sewing of sports shoes and leather shoes.
The machine tenses thread uniformly over the zigzag stroke to produce beautifully finished stitches at a high speed. With its extended zigzag width, higher presser foot lift, and newly introduced horizontal-axis double-capacity hook, the machine upgrades the functions required for the sewing of heavy materials.
Product features
Wider zigzag width

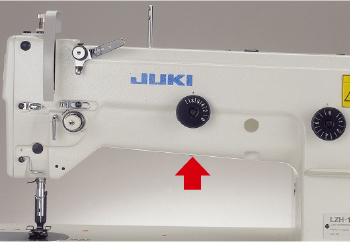

The machine offers outstanding capabilities for the sewing of sports shoes and leather shoes that require a wider zigzag width. The zigzag width can be quickly and easily adjusted by the dial mounted on the front face of the machine.
Higher lift of the presser foot

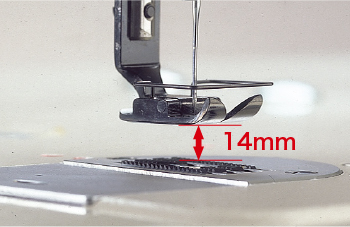

To ensure smooth sewing of heavy materials, the lift of the presser foot is as high as 14 mm (13 mm for the LZH-1290-7).
Thread trimmer without fail (LZ-1290-7)
The machine's unique thread trimmer mechanism allows the thread trimmer to cut the thread when the needle is either at the left or right end of its zigzag stroke. This mechanism also eliminates the need for adjustment even when the thread count is changed.
Basic performance
Consistent sewing performance at a high speed
With its newly incorporated triangular cam, the machine uniformly tenses thread in zigzag strokes regardless of the needle position, and the needle always enters the material at right angles. This prevents the needle from swaying during zigzag stitching.
Specification
Model name | LZH-1290 | LZH-1290-7 | ||||
---|---|---|---|---|---|---|
Type | - | With automatic thread trimmer | ||||
Max. sewing speed | 2,000 sti/min* | |||||
Max. stitch length | 6 mm (normal / reverse feed) | |||||
Zigzag width | Max. 8 mm (adjustable to 10 mm) | |||||
Zigzag width adjustment method | By dial | |||||
Needle bar stroke | 35 mm | |||||
Lift of the presser foot | By knee lifter : 14 mm By hand lifter : 6 mm |
By knee lifter : 13 mm By hand lifter : 6 mm |
||||
Thread take-up | Link type | |||||
Hook | Horizontal-axis full-rotary double-capacity hook | |||||
Needle (at the time of delivery) | SY1906 Nm90~110 (standard Nm110) | |||||
Thread | #50~#8, B33~B92, Nm=120/3~30/3 | |||||
Lubrication | By an oiler (hook : automatic) | |||||
Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |||||
Distance from needle to machine arm | 295 mm | |||||
Bed size | 477 mm×178 mm | |||||
Weight of the machine head | 35 kg | 39 kg | ||||
Automatic reverse feed function | - | Provided as standard |
*“sti/min” stands for “Stitches per Minute.”

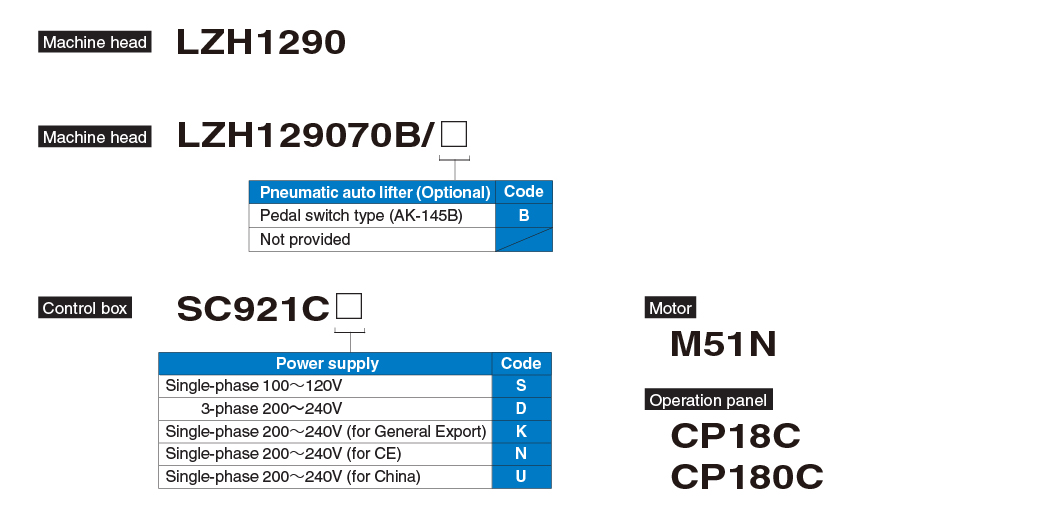

When you place orders
Gauge
LZH-1290-7
LZH-1290
Guage | PRESSER FOOT | THROAT PLATE | FEED | ||||||
---|---|---|---|---|---|---|---|---|---|
- | P/N | Remarks | Figure | P/N | Remarks | Figure | P/N | Remarks | Figure |
10mm | 10085751 | - | 10075505 | - | 10083319 | E | |||
8mm | 10086361 | A | 10093318 | E | - | - | - | ||
10086379 | B | ||||||||
10098051 | F | ||||||||
6mm | 10085850 | - | 10075703 | - | 10083517 | B | |||
10085884 | C | 10075711 | A | 10083525 | A | ||||
10951358 | D |
