1-needle, Unison-feed, Lockstitch Machine with Vertical-axis Large Hook

JUKI's unique feed mechanism promises excellent efficiency of feed. In addition to the standard models of 2-needle machines, other models intended for special purposes are available, one having a thread trimmer. The machine is applicable to an extended range of heavy materials for industrial use, such as cargo handling belts and containers, as well as those for industrial use, such as cargo handling belts and containers, as well as those for general use, such as car seats, sofas and bags, thereby contributing to both improved quality and increased productivity.

Product features

  • A new feed mechanism with a rectangular feeding motion prevents stitch gathering

    • The new mechanism with a rectangular feeding motion promises consistent feed of materials of all thickness without stitch gathering.
    • The lower orbit of the feed dog prevents the material from flopping and reduces operating noise and vibration.

  • The alternating vertical movement mechanism prevents irregular stitches

    • The machine has adopted a new mechanism that does not change the ratio of alternate vertical movement of the walking foot and presser foot even when the material thickness changes.
    • Even when a heavy-weight material is used, the presser foot lift does not decrease. This means that the presser foot comes into contact with the material at exactly the same time that it does when sewing lighter-weight sections of the material. As a result, the walking foot retains the material with a consistent pressure to prevent irregular stitches.
    • The amount of the alternating vertical movement of the walking foot and presser foot can be adjusted up to the maximum of 6.5mm according to the height of multilayered portions of material.

  • Consistent seam quality

    • With the adoption of a new rectangular feed mechanism, an alternating vertical movement mechanism, and a unison feed mechanism, the machine can feed heavy materials powerfully and smoothly. Well tensed seams are consistently produced without pitch errors.
    • With its maximum stitch length of 9mm, the machine can be applied to a broader range of uses.

  • Higher lift of the presser foot

    The high, 16mm (13mm for LU-1565N) presser foot lift enables easy material handling.

  • The highly efficient vertical-axis double-capacity hook is equipped as standard

    With the adoption of this vertical-axis double-capacity hook, the frequency of bobbin thread changing is reduced, promising sewing work of increased efficiency.

  • LU-1560N, LU-1561N
    (with automatic lubricating mechanism)

    • The standard 2-needle type machine that delivers the basic functions and performance best suited to the sewing of heavy materials.
    • Automatic lubricating mechanism improves maintainability. The sub oil pan and double filter prevent dust from entering the oil.

Basic performance

  • Improved operability

    • The stitch length can be easily selected by the stitch dial.
    • The machine is provided with many improved features that offer enhanced operability such as an easy-to-observe area around the needle, placement of the bobbin winder on the front face of the machine arm, and a large handwheel (φ160).
    • A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. (Machines equipped with automatic thread trimmer are excluded.)
    • The machine is full-open-type top design makes it possible to fully open the top of the machine arm. Thanks to this design, adjusting works can be done without tilting the machine head.
    • The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset work can be done simply by pressing a button.

  • The area around the needle entry is designed to be easily observed
    (LU-1560N-7, LU-1561N-7)

    Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable. This substantially contributes to improved operability.

  • The walking foot and presser foot's alternating vertical movement can be set and changed with ease
    (LU-1560N-7, LU-1561N-7)

    • The vertical strokes of the presser foot and walking foot (their alternating vertical movement) can be easily changed using a large dial mounted on the top surface of the machine head.
    • In addition the sewing speed is automatically adjusted with the set value. With this feature, ideal sewing conditions are maintained at all times.
    • The machine is equipped with an instantaneous changeover device for alternating the vertical movement amount of the walking foot and presser foot, which demonstrates its capability for processes involving sewing products with a lot of multi-layered portions.

  • Thread trimming without fail
    (LU-1560N-7, LU-1561N-7)

    The machine leaves a shorter needle thread after thread trimming, improving thread consumption efficiency. With a rigid knife and improved cam shape, the thread trimmer cuts thread as thick as #5 without fail.

  • A helpful automatic reverse feed function is provided as standard
    (LU-1560N-7, LU-1561N-7)

    • With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore if a suspended ruler is attached on the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.
    • The auto-lifter (pedal switch type) helps to increase efficiency by reducing operator fatigue.

  • Bottom-feed micro-adjustment mechanism is provided as standard
    (LU-1510N-7, LU-1511N-7)

    The 1-needle type machine is equipped with a bottom-feed micro-adjustment mechanism with the needle feed amount fixed. This helps prevent irregular stitches which are free from pitch errors.

Specification

Model name LU-1560N LU-1561N LU-1560N-7 LU-1561N-7 LU-1565N
- With automatic thread trimmer With organized split needle bar
Application Heavy-weight
Max. sewing speed 2,500sti/min* 2,000sti/min*
Max. stitch length 9mm (forward /backward)
Needle bar stroke 36mm 33.4mm
Lift of the presser foot By hand: 9mm, By knee: 16mm (max.) By hand: 9mm, Auto: 16mm  By hand: 9mm, By knee: 13mm (max.)
Auto-lifter Option Provided as standard
(pneumatic auto-lifter: AK-147B)
Option
Needle gauge 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm
(3/16, 1/4, 5/16, 3/8, 1/2)
6mm, 8mm, 10mm, 12mm 4.8mm, 6.4mm, 7.9mm, 9.5mm, 12.7mm
(3/16, 1/4, 5/16, 3/8, 1/2)
6mm, 8mm, 10mm, 12mm 4.8mm, 6.4mm, 7.9mm (3/16, 1/4, 5/16)
Organized split needle bar - Provided as standard
Alternating vertical movement 2.5~6.5mm 1~6.5mm 2.5~6.5mm
Dial for adjustment of alternating vertical movement - Provided as standard -
Thread take-up Slide type
Hook Vertical-axis double-capacity hook
Needle (at the time of delivery) 135×17 (Nm160) Nm125~Nm180
Thread #30~#5, B46~B138, Nm=60/3~20/3
Locus of feed Rectangular feed
Needle thread tension box Single-tension method
Pitch changing method By dial
Bobbin thread winder Built on the machine head
Knee-lifter mechanism Built on the machine head - Built on the machine head
Safety mechanism Provided as standard (reset with the push of a button)
Lubrication Automatic By an oiler (hook: automatic)
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Distance from needle to machine arm 255mm
Bed size 517mm×178mm
Weight of the machine head 45kg 51kg 45kg
Automatic reverse feed function Option Provided as standard -
Compressed air and air consumption - 0.5MPa {5kg/cm²} • 0.3Nl/min -
Power requirement - Single-phase 100~120V, 220~240V
3-phase 200~220V, 220~240V
-
Power consumption - 550VA -

*"sti/min" stands for "Stitches per Minute."

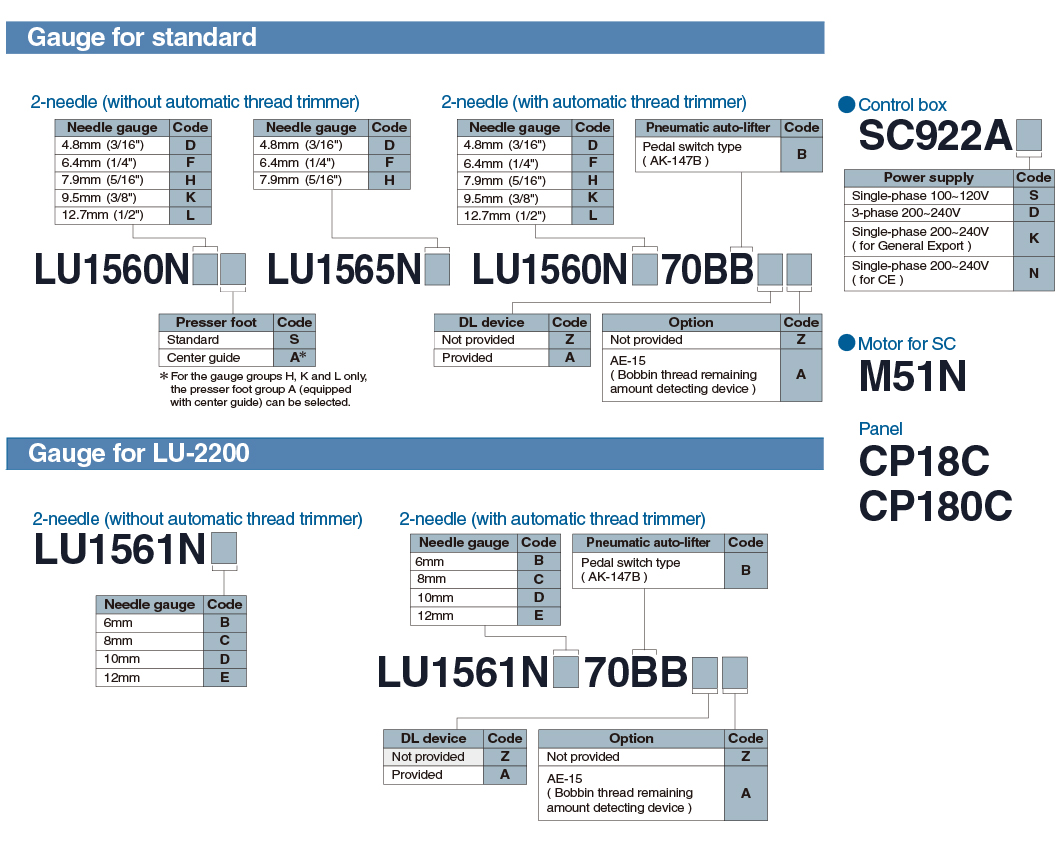

When you place orders

Gauge

LU-1560N-7
LU-1560N

Guage THROAT PLATE FEED DOG PRESSER FOOT ASM. PRESSER FOOT ASM._WITH CENTER GUIDE NEEDLE CLAMP ASM.
Figure
Needle guage size:inch mm P/N P/N P/N P/N P/N
1/8 4.4 21368709 21369400 21370853 - 21371554
3/16 4.8 21366109 21366604 21367651 - 21368154
1/4 6.4 21366208 21366703 21367750 - 21368253
5/16 7.9 21366307 21366802 21367859 21374657 21368352
3/8 9.5 21366406 21366901 21367958 21374756 21368451
1/2 12.7 21366505 21367008 21368055 21374855 21368550
5/8 15.9 21368808 21369509 21370952 - 21371653
3/4 19.1 21368907 21369608 21371059 - 21371752
7/8 22.2 21369004 21369707 21371158 - 21371851
1 25.4 21369103 21369806 21371257 - 21371950
1-1/8 28.6 21369202 21369905 21371356 - 21372057
1-1/4 31.8 21369301 21370002 21371455 - 21372156
Guage FEED FOOT ASM. SLIDE PLATE_LEFT SLIDE PLATE_RIGHT FEED FOOT ASM. FEED FOOT ASM._OP
Figure
Needle guage size:inch mm P/N P/N P/N P/N P/N
1/8 4.4 21370150 21365606 21365002 21372255 21373451
3/16 4.8 21367156 21372354 21373550
1/4 6.4 21367255 21372453 21373659
5/16 7.9 21367354 21372552 21373758
3/8 9.5 21367453 21372651 21373857
1/2 12.7 21367552 21365705 21365101 21372750 21373956
5/8 15.9 21370259 21372859 21374053
3/4 19.1 21370358 21372958 21374152
7/8 22.2 21370457 21365804 21365200 21373055 21374251
1 25.4 21370556 21373154 21374350
1-1/8 28.6 21370655 21373253 21374459
1-1/4 31.8 - - - 21373352 21374558

LU-1565N

Guage THROAT PLATE FEED DOG FEED DOG FEED DOG PRESSER FOOT ASM.
Figure
Needle guage size:inch mm P/N P/N P/N P/N P/N
3/16 4.8 B1109521D00 B1613521D00 B1613521D0A B1613521D0B 21367651
1/4 6.4 B1109521F00 B1613521F00 B1613521F0A B1613521F0B 21367750
5/16 7.9 B1109521H00* B1613521H00* B1613521H0A B1613521H0B 21367859*
3/8 9.5 B1109521K00 B1613521K00 B1613521K0A B1613521K0B 21367958
1/2 12.7 B1109521L00 B1613521L00 B1613521L0A B1613521L0B 21368055
Remarks - - - - Without teeth
Guage FEED FOOT ASM. FEED FOOT ASM._OP FEED FOOT ASM.  NEEDLE CLAMP ASM._LEFT NEEDLE CLAMP ASM._RIGHT
Figure
Needle guage size:inch mm P/N P/N P/N P/N P/N
3/16 4.8 B1470521DA0 21373550 - B1402526DALA B1402526DARA
1/4 6.4 B1470521FA0 21373659 - B1402526FALA B1402526FARA
5/16 7.9 B1470521HA0* 21373758 - B1402526HALA* B1402526HARA*
3/8 9.5 B1470521KA0 21373857 B1470521KAX B1402526KALA B1402526KARA
1/2 12.7 B1470521LA0 21373956 - B1402526LALA B1402526LARA
Remarks With teeth Slit Without teeth - -
Guage NEEDLE CLAMP NEEDLE CLAMP THREAD GUIDE NEEDLE CLAMP THREAD GUIDE SETSCREW BED SLIDE ASM._LEFT BED SLIDE ASM._RIGHT BED SLIDE ASM._FRONT
Figure
Needle guage size:inch mm P/N P/N P/N P/N P/N P/N
3/16 4.8 B1402526D00 B1403526000 SS5060310SP B1112512E00* 21377304* 22650055*
1/4 6.4 B1402526F00
5/16 7.9 B1402526H00
3/8 9.5 B1402526K00
1/2 12.7 B1402526L00 B1112512J00

*Standard
