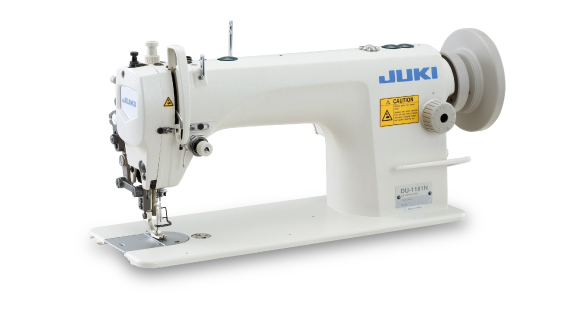

1-needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook

With its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality.

Product features

  • Higher lift of the presser foot

    The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.

  • The maximum stitch length is 9 mm

    With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.

  • The double-capacity hook is provided as standard

    The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.

Basic performance

  • Automatic lubricating mechanism

    A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.

    The top feed mechanism employs a grease tank and oil wick lubrication mechanism.

  • The machine achieves low-vibration and low-noise

    The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.

  • Excellent operability

    • The stitch pitch can be adjusted in both the normal and reverse directions.
    • The height and inclination of the feed dog can be adjusted.
    • The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2 to 5mm according to the height of a multi-layered section of material.
    • The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after openning the rubber caps (three caps) on top of the machine head.

Specification

Model name DU-1181N
Max. sewing speed 2,000sti/min*
Max. stitch length 9mm (forward/backward)
Needle bar stroke 36.5mm
Lift of the presser foot By hand: 5.5mm, By knee: 15mm
Thread take-up Link type
Alternating vertical movement 2~5mm
Hook Horizontal-axis full-rotary double-capacity hook
Needle (at the time of delivery) DP×17 (#21) #14~#23 *The DB×1 needle can also be used.
Thread #40~#8
Pitch changing method By dial
Knee-lifter mechanism Built on the machine head
Lubrication Automatic
Lubricating oil JUKI MACHINE OIL No.7 (equivalent to ISO VG7)
Distance from needle to machine arm 261mm
Bed size 477mm×178mm
Weight of the machine head 31kg

*"sti/min" stands for "Stitches per Minute."
