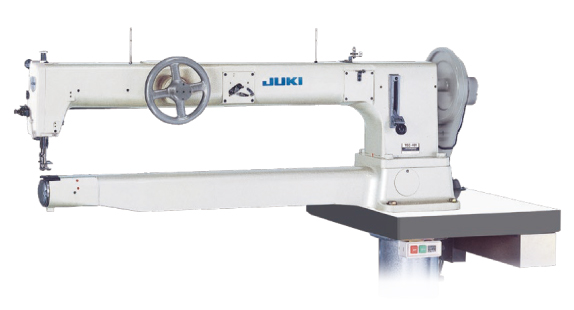

Super-long Cylinder-bed, 1-needle, Lockstitch Machine with Large Shuttle-hook for Extra Heavy Materials
The machine is capable of powerfully feeding the materials which cannot be smoothly fed by conventional machines
Product features
The machine is capable of sewing large materials, long-sized materials and tubular sewn products with ease
It is equipped with a free space under the arm as wide as 950mm, which means that the machine is capable of sewing large materials, long-sized materials and tubular sewn products with ease.
APPLICATIONS
Carrying bags, transportation equipment, sporting goods.
The lift of the presser foot is high as 20mm
The lifting amount of the presser foot is sufficient to sew extra heavy materials.
The machine is also provided with a large shuttle hook and large bobbin, which are used for sewing extra heavy materials
The machine comes with a large shuttle hook and large bobbin which have been exclusively designed for sewing extra heavy materials: these reduce the frequency of bobbin replacement, thereby leading to higher efficiency in sewing extra heavy materials using thick threads.
The amount of thread wound around a bobbin is dramatically increased
When compared with the conventional 45K bobbin, the amount of thread wound around the newly developed large bobbin is increased by 50%.
Basic performance
The machine incorporates a build-in type bobbin winder
The machine is equipped with a built-in type bobbin winder which the operator can reach during sewing.
Specification
| Model name | TSC-461U | ||
|---|---|---|---|
| Max. sewing speed | 650sti/min* | ||
| Max. stitch length | 11mm (normal/reverse feed) | ||
| Needle bar stroke | 56mm | ||
| Lift of the presser foot | By hand: 12mm, By pedal: 20mm | ||
| Reverse feed stitching method | By lever | ||
| Thread take-up | Cam type thread take-up | ||
| Alternating vertical movement | 4~8mm | ||
| Hook | Large capacity shuttle hook | ||
| Needle (at the time of delivery) | 794 (Nm230) Nm=130~Nm280 | ||
| Thread | #8~#0, B92~B277, Nm=30/3~8/3 | ||
| Lubrication | By an oiler | ||
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | ||
| Bobbin wider | Built on the machine arm | ||
| Top-feed method | Interlocked with the bottom-feed mechanism | ||
| Distance from needle to machine arm | 950mm | ||
* “sti/min” stands for “Stiches per Minute”
