Feed-off-the-arm, 3-needle Double Chainstitch Machine
This machine demonstrates increased feed efficiency to handle extra heavy weight 16-ply denim.
Engineered with extra feeding strength for seaming the inside of jeans.
Product features
The machine is best suited for lap seaming jeans, denim jackets, work uniforms, etc. constructed of heavy weight materials
The machine demonstrates increased efficiency of feed even when seaming a yoke part (16-layered) in hip seaming processes.
Basic performance
Strong feeding mechanism of the puller
The puller incorporates a one-way clutch mechanism which contributes to consistent feeding of the material.
(The mechanical part is protected by a cover for added safety.)Thread take-up device which helps produce even stitches with consistency
The feeding amount of needle thread is automatically adjusted to the pressure foot height during sewing, thereby producing even stitches with consistency.
The machine has been designed to achieve the best possible ease of threading
When the looper pushbutton (*) located on the operator side of the top of the machine head is pushed, the tip of the looper moves downward to allow the operator to thread the machine head with ease.
The differential feed adjusting lever is located on the front face of the machine head
The differential feed adjusting lever can be adjusted even during sewing, thereby effectively preventing cloth slippage between two plies.
Specification
Model name | MS-3580S*1SN | MS-3580S*0SN | ||
---|---|---|---|---|
Stitch type | 3-needle, 6-thread, double chainstitch machine | |||
Application | For medium- to heavy-weight materials: jeans, denim jackets, work uniforms, etc. | |||
Max. sewing speed | 4,500rpm | |||
Normal sewing speed | 3,500rpm | |||
Needle gauge | 6.4mm, 7.2mm | |||
Stitch length | 2.1mm~3.6mm (standard 3.2mm) | |||
Needle (standard) | UY130GS (standard) /Nm140 (#22) | |||
Needle bar stroke | 33mm | |||
Number of pieces of thread used | 6 | |||
Weight of the machine head | 23.5kg | |||
Lift of the presser foot | Max. 9mm (at the time of delivery 6.5mm) | |||
Top feed roller width | 11.9mm | |||
Feed adjusting method | Main feed: Slide-type stitch-length adjusting method | |||
Differential feed: Lever adjusting method | Without the differential feed capability | |||
Lubrication | Automatic rotary-pump type oiling | |||
Lubricating oil | JUKI MACHINE OIL No. 18 | |||
Installation method | To be installed on the table by means of an auxiliary drive assembly MT03 |

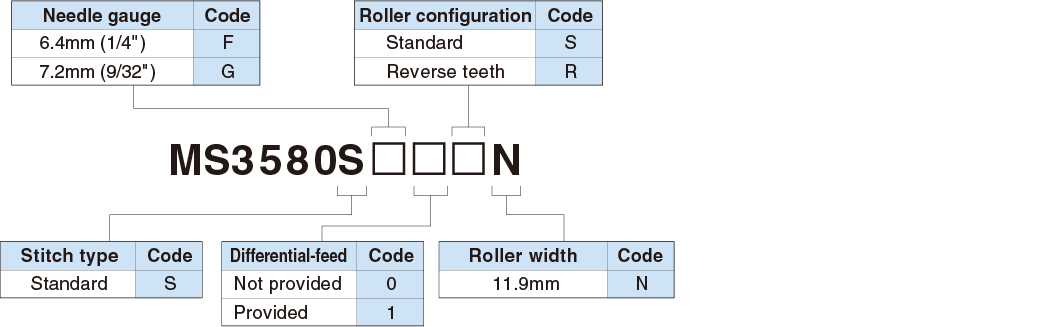

When you place orders
Gauge
MS-3580S*1
MS-3580S*0
Guage | PRESSER FOOT SUPPORT | PRESSER FOOT | THROAT PLATE | ||||
---|---|---|---|---|---|---|---|
Figure | |||||||
Needle width | P/N | P/N | Remarks | P/N | Remarks | ||
Code | inch | mm | |||||
F | 1/4 | 6.4 | 40067286 | 40067289 | With differential feed amount For MS-3580SF/1 ()N |
40067292 | For MS-3580SF/ () ()N |
40067297 | Without differential feed amount For MS-3580SF/0 ()N |
40107504 | OP: for light-weight materials | ||||
G | 9/32 | 7.2 | 40067290 | With differential feed amount For MS-3580 SG/1 ()N |
40067293 | For MS-3580 SG/ () ()N | |
40067298 | Without differential feed amount For MS-3580 SG/0 ()N |
40107505 | OP: for light-weight materials |
Guage | DIFFERENTIAL FEED DOG | FEED DOG | NEEDLE | ||||
---|---|---|---|---|---|---|---|
Figure | |||||||
Needle width | P/N | Remarks | P/N | Remarks | P/N | ||
Code | inch | mm | |||||
F | 1/4 | 6.4 | 40067295 | For MS-3580 S ()/1 ()N: for light-weight materials | 40070054 | For MS-3580 S ()/1 ()N | MUY130B1400 |
40107500 | For MS-3580 S ()/1 ()N: OP: for light-weight materials | ||||||
G | 9/32 | 7.2 | 40107501 | For MS-3580 S ()/1 ()N: OP | 40068612 | For MS-3580 S ()/0 ()N | |
40107503 | For MS-3580 S ()/0 ()N: OP: for light-weight materials |
