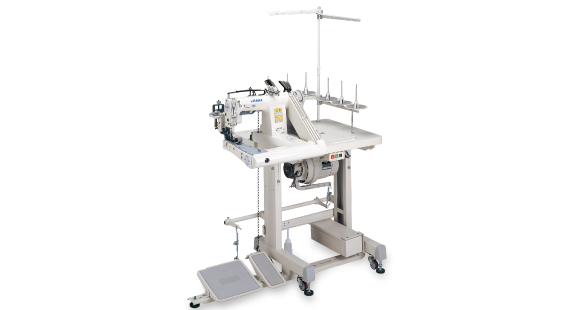

Feed-off-the-arm, Double Chainstitch Machine

The machine is the leading double chainstitch machine for heavy-weight materials and achieves higher efficiency in operation and higher quality of finished products.

Product features

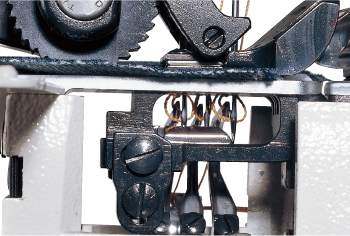

  • The looper tucks the thread without fail, thereby preventing stitch skipping

    The placement of the feed mechanism has been charged to decrease the feed amount when the needle enters the material, thus preventing the needle from bending. The bobbin thread is clamped without fail, thereby producing consistent thread loops. The looper tucks the needle thread without fail, thereby finishing uniform seams.

Basic performance

  • The feed mechanism smoothly feeds the material, thereby allowing the machine to finish seams with consistency

    The number of teeth of the feed dog has been increased so that it can easily catch overlapping material. The shape of the presser foot has been modified to prevent single-sided contact with the overlapped part. The movable needle guard (rear) is provided with a vertical adjusting mechanism. These features contribute to smoother feed of heavy-weight materials, thereby preventing stitch skipping.

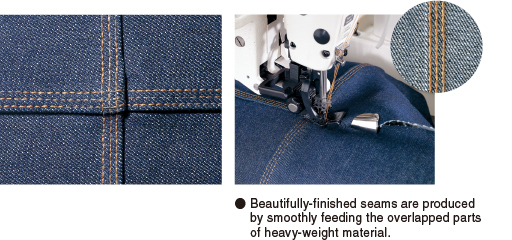

  • The machine provides beautifully-finished seams even when heavy-weight material is used

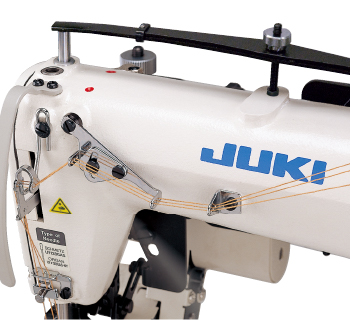

    Thanks to the thread guide located between the needle bar thread take-up and the intermediate tension release lever, the timing to tense the needle thread can be changed and the bobbin thread tension can be decreased. As a result, the machine is capable of beautiful finished stitches with a soft appearance even when heavy-weight material is used.

  • The machine prevents uneven material feed

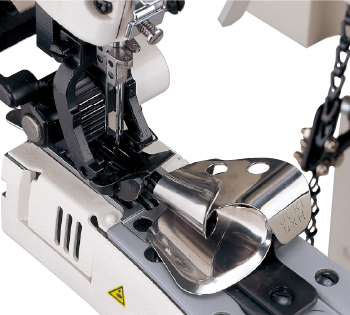

    Differences in height between the feed dog and the sole of the presser foot can be appropriately specified and adjusted in accordance with the material thickness. Folders allow the material to be smoothly fed and the cloth puller (optional) has improved fulcrum so that it can run on the material and prevent uneven material feed.

Specification

Model name MS-1261M MS-1261
Application For medium- to heavy-weight materials For extra heavy-weight materials for jeans
No. of needle 3
Max. sewing speed 3,600sti/min (normal 3,000sti/min)*
Needle bar stroke 33.2mm
Needle
(at the time of delivery)		 SCHMETZ UY128GAS (Nm120)
Nm100~Nm140
ORGAN UY×128GAS-NY (#19)
#16~#22		 SCHMETZ UY128GAS (Nm130)
Nm100~Nm140
ORGAN UY×128GAS-NY (#21)
#16~#22
Needle gauge 5.6mm (7/32"), 6.4mm (1/4"), 7.2mm (9/32"), 8.0mm (5/16"), 9.6mm (3/8")
Stitch length 1.4~4.2mm
Lift of the presser foot 10mm
Thread take-up lever Needle bar thread take-up lever
Circumference of tube at the needle entry 190mm
Needle guard Backward travelling needle guard
Stitch adjusting system By push-button (with locking mechanism)
Lubrication Semi-automatic lubrication
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)

*"sti/min" stands for "Stitches per Minute."

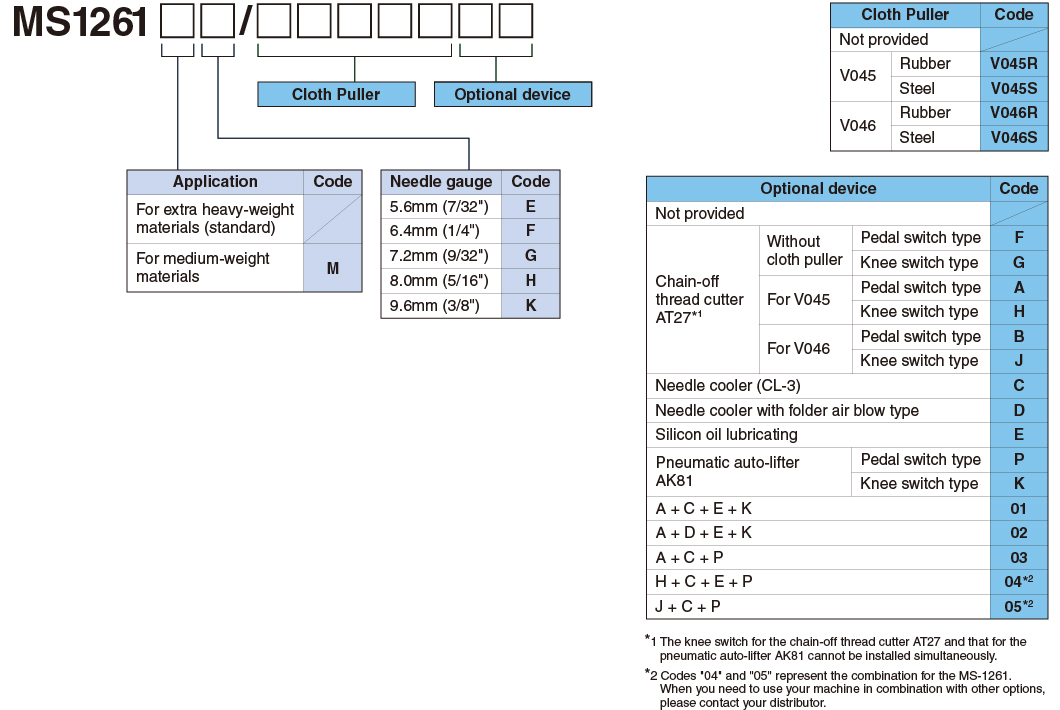

When you place orders

Gauge

MS-1261

Guage GUAGE SET THROAT PLATE NEEDLE CLAMP ASM. PRESSER FOOT ASM. FEED DOGS (PAIR)
Figure -
Needle width P/N P/N P/N P/N P/N
Code inch mm
E 7/32 5.6 12954061 12954004 12956355 12957163 12965158
F 1/4 6.4 12953964 12953907 12956256 12957064 12965059
G 9/32 7.2 12954160 12954103 12956454 12957262 12965257
H 5/16 7.9 12954269 12954202 12956553 12957361 12965356
K 3/8 9.5 12954368 12954301 12956652 12957460 12965455
Remarks With finger guard - - With finger guard -



Guage LOOPER_L LOOPER_R LOOPER_C HOLDERS (PAIR)_M298 HOLDERS (PAIR)_M299
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
E 7/32 5.6 12968558 12968855 12969150 MAM2980AABA MAM2990AABA
F 1/4 6.4 12968558 12968855 12969150 MAM2980BBBA MAM2990BBBA
G 9/32 7.2 12968558 12968855 12969150 MAM2980CCBA MAM2990CCBA
H 5/16 7.9 12968657 12968954 12969150 MAM2980DDBA MAM2990DDBA
K 3/8 9.5 12968657 12968954 12969150 MAM2980EEBA MAM2990EEBA
Remarks - - - Mark: H
Heaby weight (OP)		 Mark: XH
For extra heavy weight materials (MS-1261 Standard)
Remarks - - - Holders are not included in the gauge set.



Guage FEED DOG SPACER
Needle width P/N Remarks
Thickness (mm)
0.3 12976601 Feed dog adjusting plate B
0.8 12976700 Feed dog adjusting plate C
1.0 12976809 Feed dog adjusting plate D

MS-1261M

Guage GUAGE SET THROAT PLATE NEEDLE CLAMP ASM. PRESSER FOOT ASM. FEED DOGS (PAIR)
Figure -
Needle width P/N P/N P/N P/N P/N
Code inch mm
E 7/32 5.6 12954665 12954608 12956355 12956165 12970059
F 1/4 6.4 12954566 12954509 12956256 12956066 12969952
G 9/32 7.2 12954764 12954707 12956454 12956769 12970158
H 5/16 7.9 12954863 12954806 12956553 12956868 12970257
K 3/8 9.5 12954962 12954905 12956652 12956967 12970356
Remarks With finger guard - - With finger guard -
Guage LOOPER_L LOOPER_R LOOPER_C HOLDERS (PAIR)_M297 HOLDERS (PAIR)_M298
Figure
Needle width P/N P/N P/N P/N P/N
Code inch mm
E 7/32 5.6 12968558 12968855 12969150 MAM2970DDBA MAM2980AABA
F 1/4 6.4 12968558 12968855 12969150 MAM2970EEBA MAM2980BBBA
G 9/32 7.2 12968558 12968855 12969150 MAM2970FFBA MAM2980CCBA
H 5/16 7.9 12968657 12968954 12969150 MAM2970GGBA MAM2980DDBA
K 3/8 9.5 12968657 12968954 12969150 MAM2970HHBA MAM2980EEBA
Remarks - - - Mark: MH
Medium weight (MS-1261M Standard)		 Mark: H
Heaby weight (OP)
Remarks - - - Holders are not included in the gauge set.
