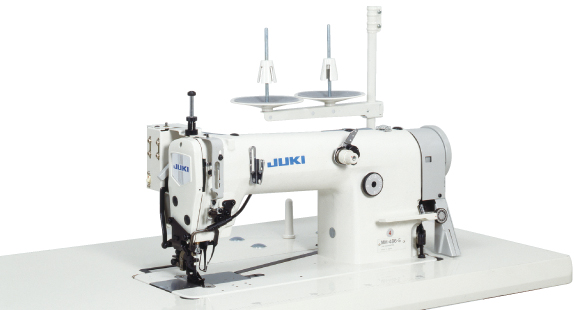

1-needle, Double Chainstitch, Bottom and Variable Top-feed Machine

An easy-to-operate, high-precision presser foot, feed dog and thread draw-out mechanism have been developed for this sewing machine so that any operator can finish seams of the highest quality.
The machine flexibly adapts to a wider range of light- to heavy-weight materials, process changes, and sewing specifications, including partial shirring.

Product features

  • The machine incorporates many functions and places a great deal of importance on higher product quality

    The machine comes with many different functions to prevent uneven material feed and puckering for higher-quality seams.

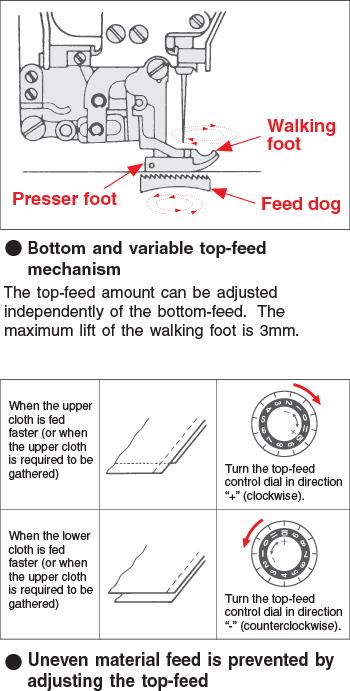

    The machine is adaptable to a wider variety of light-to heavy-weight materials and takes full advantage of top-feed mechanism.
    This enables unskilled operators to finish seams of consistent quality.

  • The top-feed dog has been designed so that the operator can smoothly place the material to be sewn on it
    Furthermore, the gauge can be easily replaced and stitch adjustment can be performed without difficulty

    The machine comes with a forced lifting mechanism for the top-feed dog. This enables the operator to place the material to be sewn on the top-feed dog more smoothly. The machine incorporates its exclusive chain-off thread presser pedal foot, which improves seam quality and ease of operation.
    The exclusive gauge comes in five different types, and the gauges can be replaced in a simple procedure. This facilitates the required adjustment when changing the needle count.

  • The machine is also capable of performing partial shirring

    The machine works effectively for processes which require partial shirring as long as the partial shirring device (PH-3) is used in combination with the partial shirring dial.
    The partial shirring device comes in two different types, the kneepad drive type and the pedal drive type.

Basic performance

  • The machine is provided with mechanisms to enable upgraded sewing

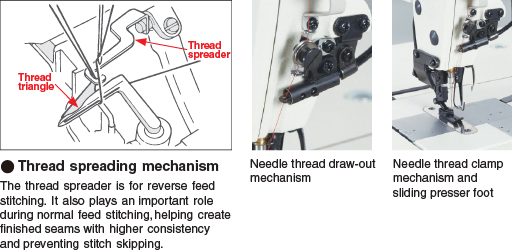

    The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.

  • Safety stitching or reverse feed stitching with a simple lever operation

    Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.

  • Beautifully finished seams

    Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.

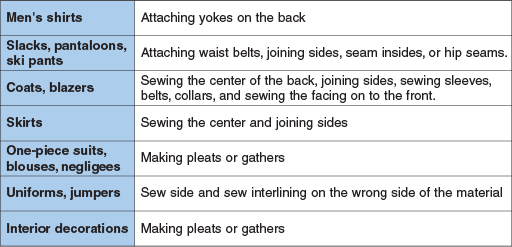

  • APPLICATION FOR MH-486 SERIES

Specification

Model name MH-486-5
Feed system Bottom and variable top-feed
Max. sewing speed 4,500rpm
Stitch length 1~5mm
Top-feed amount 0~7mm
Differential-feed ratio -
Lift of the presser foot By hand: 5mm, By knee: 7mm
Needle bar stroke 33mm
Needle (at the time of the delivery) TV × 7 (#11) #9~#21
Stitch length adjustment By dial
Safety stitch Condensation stitch/reverse stitching (by feed lever)
Looper system Inclined crank
Looper stroke 21.5mm
Looper stroke of the front and rear 3.2mm
Speed control *(1)
Lubrication Automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Motor output 750W
Power requirement Single-phase, 3-phase
Power consumption Rating 425VA

*(1) From 500rpm to the Max. sewing speed determined by the pulley used (externally adjustable)



SPECIFICATION CONFIRMATION TABLE WITH TYPES OF MACHINES

Model name MH-486-5 Remarks
Condensation stitch Provide Use the reverse stitching lever
Adjust the stopper
Reverse stitch Provide
Thread clamp device Provide
Needle thread releasing device Provide
Needle thread drow-out mechanism Provide
Thread spreader Provide
Movable needle guard Provide
Sliding presser -
Chain-off thread presser Provide Chain-off thread presser foot for the MH-480 series
Silicon oil lubricating unit Provide Provided as standard (packed together with accessories)





Gauge

MH-486-5
MH-486B-5
MH-486S-5

Guage THROAT PLATE FEED DOG UPPER FEED PRESSER PRESSER FOOT
Figure
Specification P/N P/N P/N P/N
Standard general runstitch
(rake-in type)		 B1103481F00 B1613481F00 B3026487000 B15244860B0
B: For medium turning stitch, gathering stitch
(rake-in type: for preventing uneven material feed)		 B1103481F00 B1613481F00 B3026487000 B1524486BA0
S For sharp turning stitch
(rake-in type: for preventing puckering)		 B1103481F00 B1613481F00 B3026487S00 B1524486SB0
