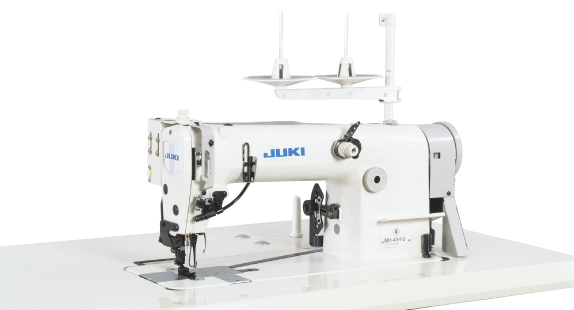

1-needle, Double Chainstitch Differential-feed Machine

The machine finishes beautiful seams in elastic and light-weight materials. Furthermore, the differential-feed can be adjusted with the simple operation of a lever, thereby enabling the machine to respond to the requirements of many different kinds of sewing.

Product features

  • Change of sewing method with a simple lever operation

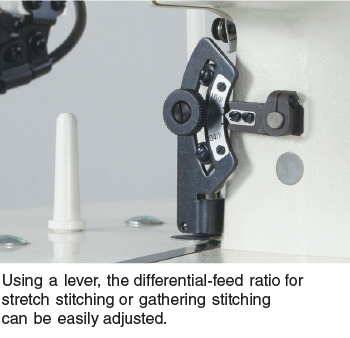

    The sewing method can be alternated between stretch stitching and shirr stitching with the simple operation of a lever. This lever is also used to adjust the differential-feed ratio.

  • The machine is capable of gathering and partial shirring

    A gathering attachment (S060), intermittent gathering attachment (S061) and partial shirring device (PF5) are optionally available to enable the machine to perform consistent gathering and partial shirring.
    Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.



Basic performance

  • The machine is provided with mechanisms to enable upgraded sewing

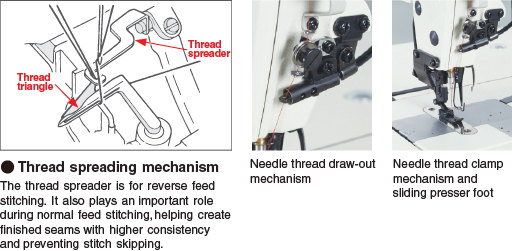

    The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.

  • Safety stitching or reverse feed stitching with a simple lever operation

    Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.

  • Beautifully finished seams

    Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.

  • APPLICATION FOR MH-484 SERIES

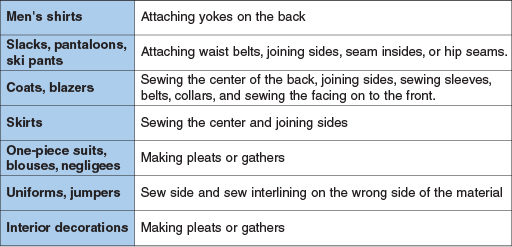

Specification

Model name MH-484 MH-484-5(4)
Feed system Differential-feed
Max. sewing speed 5,500rpm
Stitch length Main feed: 1~4mm
Differential-feed: 1~5.6mm
Top-feed amount -
Differential-feed ratio Max. gathering stitching 1: 3
(standard 1: 1.5)
Max. stretch stitching 1: 0.5
Lift of the presser foot By hand: 5mm, By knee: 10mm
Needle bar stroke 30mm
Needle (at the time of delivery) TV × 7 (#11) #9~#18
Stitch length adjustment By dial
Safety stitch Condensation stitch/reverse stitching (by feed lever)
Looper system Inclined crank
Looper stroke 21.5mm
Looper stroke of the front and rear 2.1~3.3mm
Speed control - *(1)
Lubrication Automatic
Lubricating oil JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Motor output 750W -
Power requirement Single-phase, 3-phase -
Power consumption Rating 425VA -

*(1) From 500rpm to the Max. sewing speed determined by the pulley used (externally adjustable)



SPECIFICATION CONFIRMATION TABLE WITH TYPES OF MACHINES

Model name MH-484 MH-484-5(4) Remarks
Condensation stitch Provide Provide Use the reverse stitching lever
Adjust the stopper
Reverse stitch Provide Provide
Thread clamp device - Provide
Needle thread releasing device - Provide
Needle thread drow-out mechanism - Provide
Thread spreader Provide Provide
Movable needle guard Provide Provide
Sliding presser Provide Provide
Chain-off thread presser Option Option Chain-off thread presser foot for the MH-480 series
Silicon oil lubricating unit Provide Provide Provided as standard (packed together with accessories)

Gauge

MH-484
MH-484-5

Guage THROAT PLATE MAIN FEED DOG DIFFERENTIAL FEED DOG PRESSER FOOT
Figure
Specification P/N P/N P/N P/N
Medium weight B1103484F00 B1613484F00 B1653484F00 B1524481CC0
Reverse teeth - - B1653484C00 -
