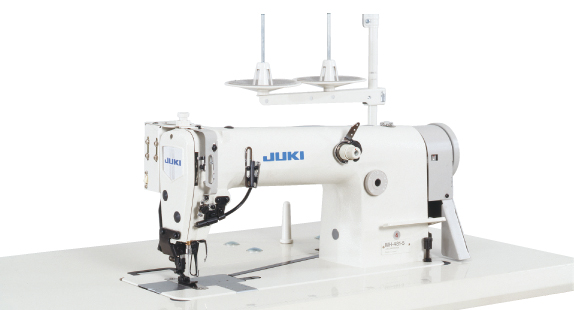

1-needle, Double Chainstitch Machine
The machine comes with a silicon oil lubricating unit, thread spreading mechanism and thread trimming mechanism which trims the thread without fail, thereby consistently ensuring beautifully-finished seams for light- to medium-weight materials.
Product features
The machine is provided with mechanisms to enable upgraded sewing
The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.
Basic performance
Safety stitching or reverse feed stitching with a simple lever operation
Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.
Beautifully finished seams
Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.

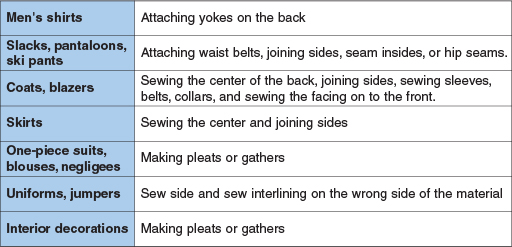

APPLICATION FOR MH-481 SERIES
Specification
| Model name | MH-481 | MH-481-5(4) |
|---|---|---|
| Feed system | Bottom-feed | |
| Max. sewing speed | 5,500rpm | |
| Stitch length | 1~4mm | |
| Top-feed amount | - | |
| Differential-feed ratio | - | |
| Lift of the presser foot | By hand: 5mm, By knee: 10mm | |
| Needle bar stroke | 30mm | |
| Needle (at the time of delivery) | TV × 7 (#11) #9~#18 | |
| Stitch length adjustment | By dial | |
| Safety stitch | Condensation stitch/reverse stitching (by feed lever) | |
| Looper system | Inclined crank | |
| Looper stroke | 21.5mm | |
| Looper stroke of the front and rear | 2.1~3.3mm | |
| Speed control | - | *(1) |
| Lubrication | Automatic | |
| Lubricating oil | JUKI New Defrix Oil No.1 (equivalent to ISO VG7) | |
| Motor output | - | 750W |
| Power requirement | - | Single-phase, 3-phase |
| Power consumption | - | Rating 425VA |
*(1) From 500rpm to the Max. sewing speed determined by the pulley used (externally adjustable)
SPECIFICATION CONFIRMATION TABLE WITH TYPES OF MACHINES
| Model name | MH-481 | MH-481-5(4) | Remarks | |
|---|---|---|---|---|
| Condensation stitch | Provide | Provide | Use the reverse stitching lever Adjust the stopper |
|
| Reverse stitch | Provide | Provide | ||
| Thread clamp device | - | Provide | ||
| Needle thread releasing device | - | Provide | ||
| Needle thread drow-out mechanism | - | Provide | ||
| Thread spreader | Provide | Provide | ||
| Movable needle guard | Provide | Provide | ||
| Sliding presser | - | Provide | ||
| Chain-off thread presser | Provide | - | Chain-off thread presser foot for the MH-480 series | |
| Silicon oil lubricating unit | Provide | Provide | Provided as standard (packed together with accessories) | |
Gauge
MH-481
MH-481-5
| Guage | THROAT PLATE | FEED DOG | PRESSER FOOT |
|---|---|---|---|
| Figure |  |
 |
 |
| Specification | P/N | P/N | P/N |
| Medium weight | B1103481F00 | B1613481F00 | B1524481CC0 |
